Security Alarm Cable - Plenum (CMP) - 16/4 AWG, CL3P, Stranded (19 Strand), Unshielded, 1000ft, White

$479.20
SKU: ASC1-1843/164
Various lead times may apply to this product. Please contact us for more details.

Made in USA RoHS Compliant ETL Verified logo

Description

16/4 Alarm Cable for Residential & Commercial Security Systems

Applications

Our Bulk Security Alarm Cables, also known as alarm wire, has been designed to meet the installation requirements for alarm systems. This plenum alarm cable features four 16 gauge bare copper 19 strand conductors. It is supplied with a low smoke CMP jacket for fire safety. This USA made security cable is constructed to be installed with security systems, intercom systems, power-limited controls and sound/audio systems.

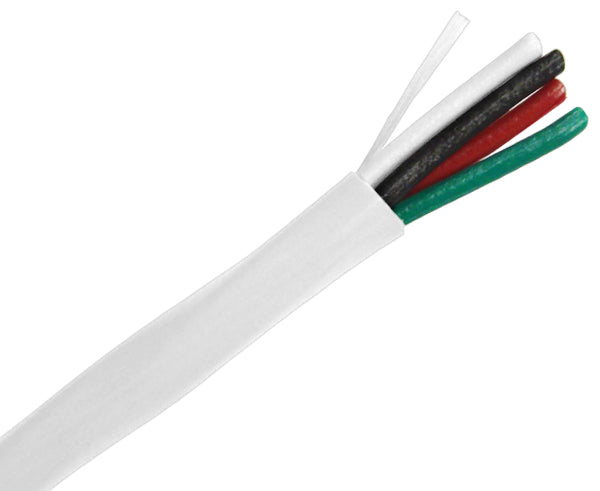

Click to expand  16/4 Alarm-Security/ Audio Cable, CMP, Stranded (19 Strand) Unshielded, 1000' White   Security Alarm Cable - Plenum (CMP) - 16/4 AWG, CL3P, Stranded (19 Strand),

Explore our portfolio of high quality security cables

Plenum - CMP
Shielded
Plenum - CMP
Unshielded
Riser - CMR
Shielded
Riser - CMR
Unshielded
Outdoor - CMX
Water Block

Applications

Our Bulk Security Alarm Cables, also known as alarm wire, has been designed to meet the installation requirements for alarm systems. Our stock has a wide variety of high quality alarm cables to meet all your needs. Our bulk security cables come with both riser and plenum rated jacket. Be sure to check the building code requirements before purchasing alarm cable. The alarm cable also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.

Security Alarm Cable - Riser (CMR) - 22/4 CL2R, Solid BC, Unshielded,

Where to use Plenum Security Alarm Cable

A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.

Features

Features

  • 16 AWG 4 Conductors
  • CL3P, Plenum Rated
  • 19 Stranded Bare Copper Conductors
  • Low Smoke PVC Insulation
  • Unshielded
  • Low Smoke White PVC Jacket
  • Sequential Footage Marking
  • CL3P/FPLP Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles
    • 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
    • 14-12 AWG: FPLP, CL3P

Conductor Jacket Color:

  • Black
  • Red
  • White
  • Green

Residential or Commercial Applications:

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls

Specifications

Specifications


Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 16 AWG
Insulation Low Smoke PVC
Nominal OD 5.36mm
Outer Jacket Diameter .457mm
Jacket Low Smoke PVC
Jacket Color White
Number of Strands 19
Conductor Insulation .010" PVC

Electrical Characteristics

Temperature 75™°C
Voltage Rating 300V

Additional Information

Standards ETL | RoHS | CMP | CL3P
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 16 AWG 4C UNSHIELDED TYPE CL3P/FPLP c(ETL)us TYPE CMP 3054355
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.


Additional Information

Additional Information

How to Select CM, CMR and CMP Cable?

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

Where to use Plenum Security Alarm Cable

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

What's in the Box

What's in the Box

  • Security Alarm Cable - Plenum (CMP) - 16/4 AWG, CL3P, Stranded (19 Strand), Unshielded, White
  • 1000 Ft
