Description
Trumpet - Fiber Cable Tray Channel
Trumpet spillouts are used to limit the bend radius of cables to 2" when exiting from a straight channel or other transitional fitting.
Features
Features
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Includes channel and snap-on cover
- Requires (1) 2.5" coupler, (1) 5" coupler and (1) 10" coupler for connection (sold separately)
- 4 sets of plastic t-bolts and hex nuts included
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|

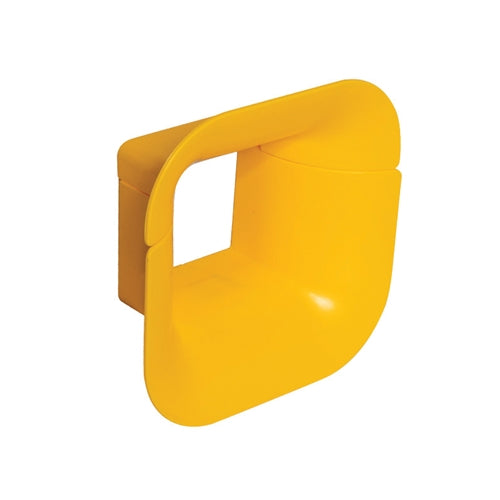

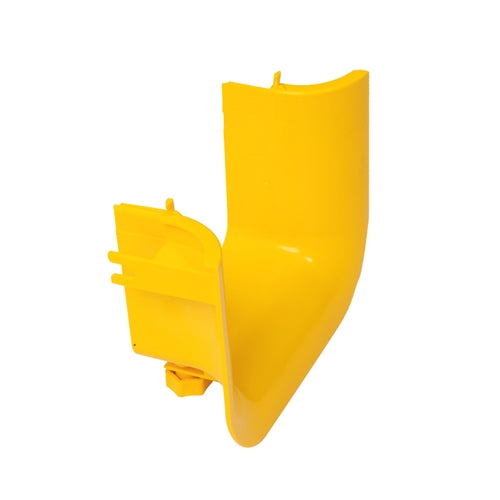

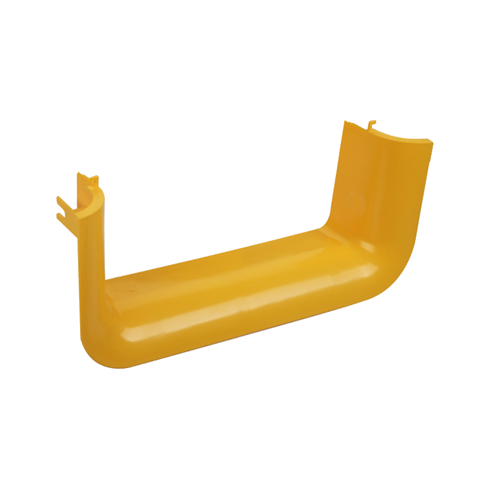

| FIBER CABLE TRAY CHANNEL | 2.5” TRUMPET SPILLOUT | 5” TRUMPET SPILLOUT | 10” TRUMPET SPILLOUT |
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) | ||
| COLOR | YELLOW | ||
| DIMENSIONS (L X W X H) | 5.1” X 5.1” X 2.4” | 7.0” X 4.9” X 2.8” | 12.7” X 5.4” X 2.2” |
| WEIGHT | 0.1 LBS | 0.26 LBS | 0.31 LBS |
| ENCLOSURE STYLE | CHANNEL & SNAP-ON COVER | N/A | |
| HARDWARE | NONE REQUIRED | 4 SETS OF PLASTIC T-BOLTS AND HEX NUTS (INCLUDED) | |
| (1) COUPLERS FOR CONNECTION (SOLD SEPARATELY) | |||
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 | ||
| SELLING UNIT | 1 PIECE | ||
Additional Information
| INSTALLATION ANIMATION | |
|---|---|
 |
What's in the Box
What's in the Box
-
Qty 1 - Trumpet - Fiber Cable Tray Channel
- Qty 4 - Sets of Plastic T-Bolts and Hex Nuts Included
