Description

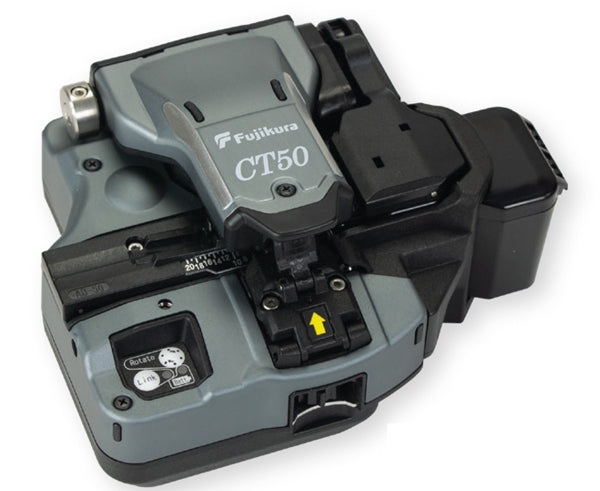

AFL CT50 Single Fiber Ribbon Cleaver
Fujikura's CT50 precision cleaver is easy to use, just prepare the fiber, load the fiber and cleave. The unit has a small footprint with a non-slip rubber base for stability, and the durable 16 position blade with 3 height settings can perform up to 48,000 cleaves before requiring replacement. Fiber off-cut management and collection is fully-automated.
Featuring automated blade rotation, unprecedented durability, and simplistic maintenance unseen with any other cleaver. When paired with a Bluetooth enabled splicer, cleaver blade positions can be automatically advanced as required.
Features
Features
- Motorized blade rotation
- Ruggedized design withstands extreme shock levels
- Bluetooth communication
- Simple one-step operation
- 60,000 cleave blade life
- Field serviceable
Specifications
Specifications
| ITEM | VALUE | |
| Applicable Fiber | Fiber Type | Single Mode Optical Fiber |
| Multimode Optical Fiber | ||
| Fiber Count | Single up to 12 Fiber Ribbon | |
| Cladding Dia. | Approx. 125μm | |
| Applicable Coating | Coating Dia. | 250μm to 900μm |
| Coating shape. : Refer to splicer fiber holder options | ||
| Cleave Length | Fiber Plate | AD-50 [CD = coating diameter] CD= 250 μm or less : 5 to 20 mm 250 μm < CD < 1000 μm : 10 to 20 mm 1000 μm < CD < 3 mm : 14 to 20 mm |
| Fiber Holder | Approx. 10mm | |
| Cleave Angle | Single Fiber | < 0.5 degrees |
| Blade Life | Approx. 60,000 fiber cleaves | |
| Physical description | Dimensions W | Approx. 120 mm when closing the lever |
| Dimensions D | Approx. 95 mm when closing the lever | |
| Dimensions H | Approx. 58 mm when closing the lever | |
| Weight | Approx. 300g | |
| Environmental condition | Temperature | Operate : -10 to 50oC |
| Storage : -40 to 80oC | ||
| Humidity | Operate : 0 to 95% non-condensing | |
| Storage : 0 to 95% non-condensing | ||
| Screw hole for tripod | 1/4-20UNC | |
| Other features | Blade rotation | Manual rotation dial |
| Replaceable parts | Blade | |
| Clamp Arm | ||
What’s In The Box
What’s In The Box
- (1) - AD-10-M24 Fiber Plate
- (1) - FDB-05 Fiber Dust Box
- (1) - CC-37 Carrying Case
- (1) - SPA-CT08-10 Spacer
