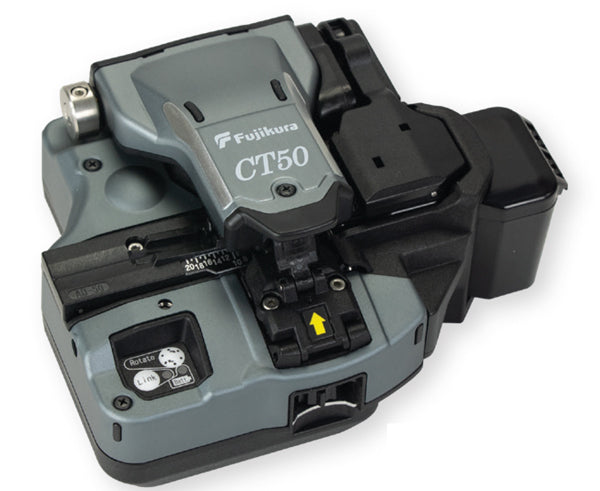

AFL CT50 Single Fiber Ribbon Cleaver
Fujikura's CT50 precision cleaver is easy to use, just prepare the fiber, load the fiber and cleave. The unit has a small footprint with a non-slip rubber base for stability, and the durable 16 position blade with 3 height settings can perform up to 48,000 cleaves before requiring replacement. Fiber off-cut management and collection is fully-automated.
Featuring automated blade rotation, unprecedented durability, and simplistic maintenance unseen with any other cleaver. When paired with a Bluetooth enabled splicer, cleaver blade positions can be automatically advanced as required.
Features
Features
- Motorized blade rotation
- Ruggedized design withstands extreme shock levels
- Bluetooth communication
- Simple one-step operation
- 60,000 cleave blade life
- Field serviceable
Specifications
Specifications
| APPLICABLE FIBER | |
|---|---|
| Fiber Type | Single Mode Optical Fiber, Multimode Optical Fiber |
| Fiber Count | Single up to 12 Fiber Ribbon |
| Cladding Dia. | Approx. 125 μm |
| APPLICABLE COATING | |
| Coating Dia. | 250 μm to 900 μm |
| Coating Shape | Refer to splicer fiber holder options |
| CLEAVE LENGTH | |
| Fiber Plate | AD-50 [CD = coating diameter] CD ≤ 250 μm : 5 to 20 mm 250 μm < CD < 1000 μm : 10 to 20 mm 1000 μm < CD < 3 mm : 14 to 20 mm |
| Fiber Holder | Approx. 10 mm |
| CLEAVE ANGLE | |
| Single Fiber | < 0.5 degrees |
| BLADE LIFE | |
| Blade Life | Approx. 60,000 fiber cleaves |
| PHYSICAL DESCRIPTION | |
| Dimensions W | Approx. 120 mm (when closing the lever) |
| Dimensions D | Approx. 95 mm (when closing the lever) |
| Dimensions H | Approx. 58 mm (when closing the lever) |
| Weight | Approx. 300 g |
| ENVIRONMENTAL CONDITION | |
| Temperature | Operate: -10 to 50ºC Storage: -40 to 80ºC |
| Humidity | Operate: 0 to 95% non-condensing Storage: 0 to 95% non-condensing |
| Screw Hole for Tripod | 1/4-20 UNC |
| OTHER FEATURES | |
| Blade Rotation | Manual rotation dial |
| Replaceable Parts | Blade, Clamp Arm |
What’s In The Box
What’s In The Box
- Qty 1 - AD-10-M24 Fiber Plate
- Qty 1 - FDB-05 Fiber Dust Box
- Qty 1 - CC-37 Carrying Case
- Qty 1 - SPA-CT08-10 Spacer
