Fiber Patch Panel, Slide-Out Termination and Splice Combo Shelves, 8.5U

One (1) splice tray FB25-4000STP24 included. Additional splice trays and adapter panels sold separately.

This fiber patch panel is only compatible with our FB24 series of adapter panel inserts and either FB25-4000STP24 splice tray or FB25-3401STP36, which are sold separately. To find out more, give us a call or email us.

Description

Fiber Patch Panel, Slide-Out Patch and Splice Combo, 8.5RU, Holds 12 Adapter Panels and Up To 8 Splice Trays, Black

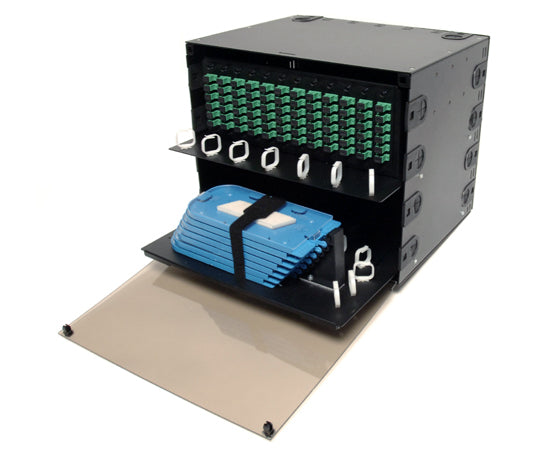

This rack mount fiber patch panel is a 8.5 Rack Unit (8.5RU) combination 19" or 23" rack mounted termination and splice shelf. The fiber housing has a 12 position termination panel in an upper slide out shelf with a lower compartment with a 8 splice tray slide out shelf, which allows for a fully front access application. Blank panels are available to fill unused panel positions. The FB23-3925RPS4 is one of a family of units that support fiber termination in rack mount applications.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Note: One FB25-4000STP24 splice tray is included with this panel (Additional splice trays are sold separately).

Features

Features

• Can be ordered fully terminated with cabling or pigtails.
• Includes one splice tray FB25-4000STP24 with 24 single fusion splice capacity.
• Individual splice tray compartment for organization.
• Supplied with mounting hardware for 19" or 23" mounting.

Specifications

Specifications

Adapter Panels: 12 Adapter Panels (Sold Separately)

Splice Trays: 8 Splice Trays (Sold Separately)
- (8) 24 Fiber Splice Trays (FB25-4000STP24)
- (8) 36 Fiber Splice Trays (FB25-3401STP36)

Depth: 14"
Height: 14.88"
Width: 17"
Weight: 21 lbs

Color: Black
Material: 0.060" Powder Coated Aluminum
