Description

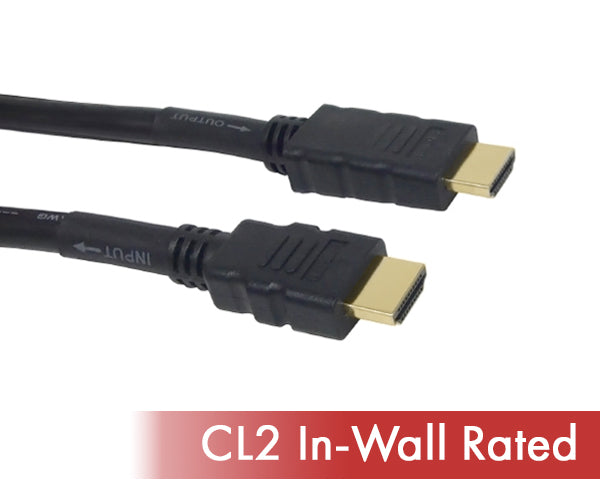

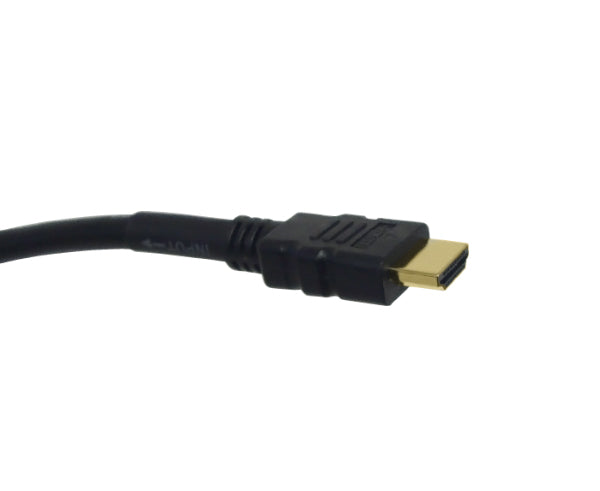

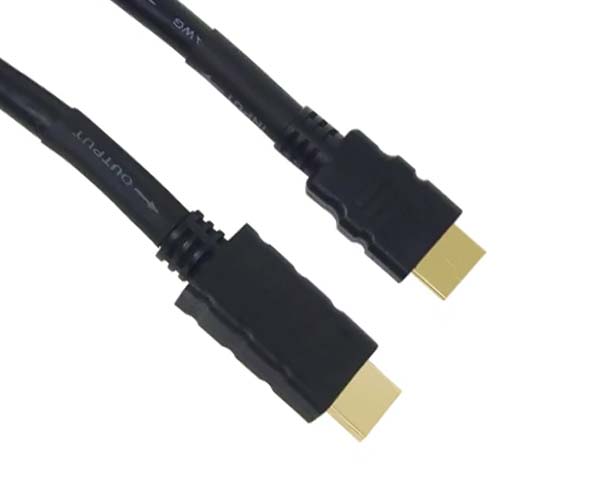

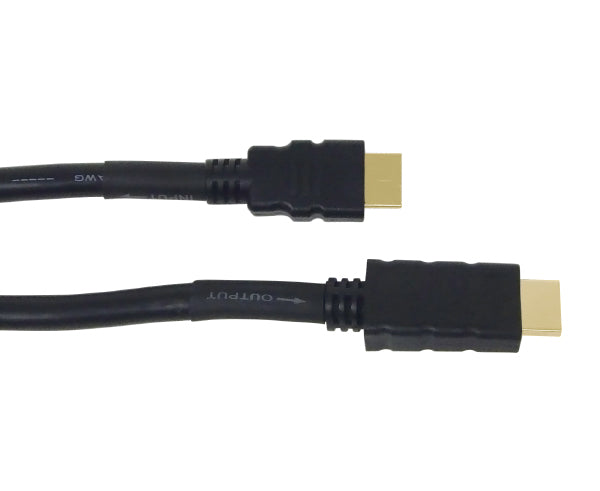

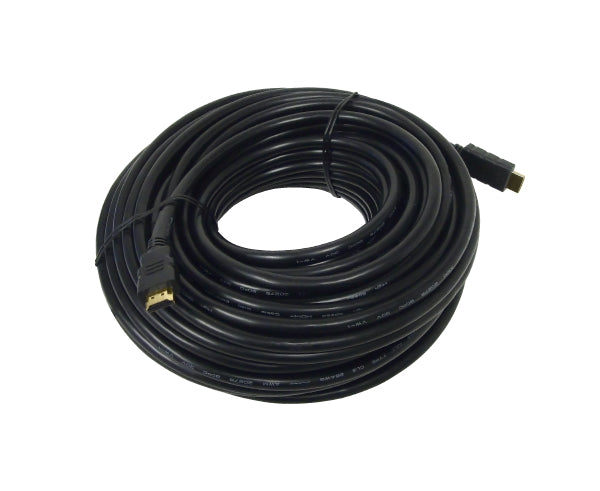

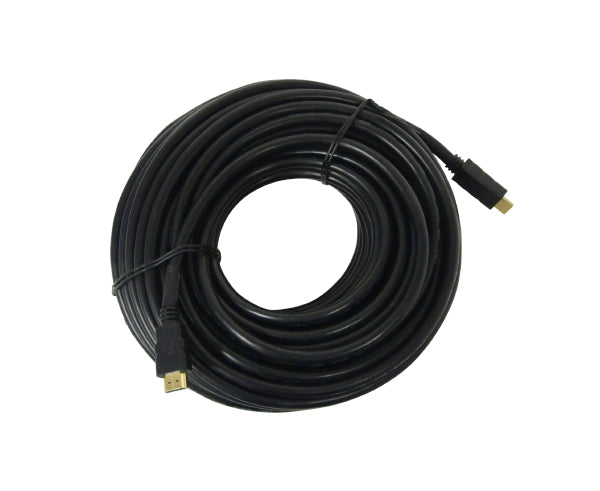

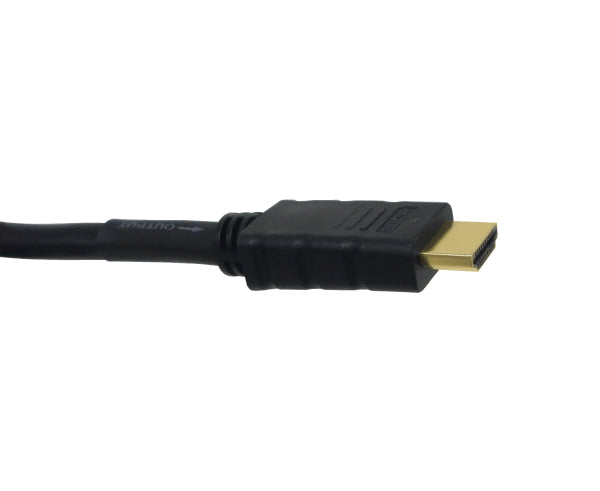

High Speed HDMI 1.4 Cable w/ Ethernet & Equalizer, Male to Male, CL2, 100FT, 1080p
Optimized 1.4 HDMI to HDMI 26AWG cables are specially designed for hi-def HDTV video/audio signals for home theater applications and professional home theater installations. All of our HDMI cables are made with home theater in mind - using the highest quality cabling, jacket materials and gold plating for better connectivity, longevity and signal strength. This HDMI cable includes an integrated circuit (IC) equalizer that stabilizes the signal quality at both ends, allowing for a more consistent signal though out longer distances. This HDMI Cable is compatible with all HDTV formats including 1080p and below.
Connect a cable box, satellite box, game console, DVD player, or any device that has an HDMI output to another HDMI device such as HDTV or projector. Use an HDTV as a computer monitor or watch movies on your PC, laptop or notebook computer. Our HDMI cables including this 100-foot HDMI Cable are certified by HDMI.org.
Customize Your Installation With This CL2 Rated Jacket
This cable is suitable for in-wall applications with a CL2-Rated jacket, so it's safe to run through walls in residential buildings, such as going from one floor or room to another. The CL2 rating makes this cable an excellent choice for outdoor applications such as patios and porches.
| Jacket Type | In-Wall Installation | Flame Resistant | Wattage Rated | Ventilation Installation |
| Regular | N/A | N/A | N/A | N/A |
| CL2 | Yes | Yes | 150 Watts | N/A |
| CL3 | Yes | Yes | 300 Watts | N/A |
Features
Features
- In-wall-rated CL2 cable jacket
- HDMI High speed with Ethernet
- Equalizer for higher & more consistent signal quality over long distance
- Perfect for connecting your HDMI monitors, A/V receivers, and HDTV
- Supports all resolutions up to 1080p including 1080i, 720P, 480p, 480i
- Fully HDCP compliant to provide highest level of signal quality
- Gold-plated conductor to provide optimum signal transfer
- Gold-plated connecting pins and ground connections
- Standard 19 pin connection, Male to Male, Type A Connection
- Triple-layer shielding to greatly reduce EMI.
- HDMI certification with ATC to ensure best quality
- Category 2 certified and rated up to 150 Volts
- 3D compatible
- RoHS compliant
Specifications
Specifications
| HDMI Version | v1.4 and backward compatible to all previous versions |
| Cable Gage | 26 AWG |
| OD | Ø8.2±0.15mm |
| Jacket Material | Black PVC, CL2 Rated |
| Voltage | 2.0V |
| Length | 100ft |
| Connector Material | Gold Plated Copper |
| Connector Type | Standard Male to Male Type A, 19 pin connector |
| Connector Depth | 9.2 ± 0.3mm |
| Conductor Material | Bare Copper |
| Conductive Resistance | 3 Ohm Max |
| Shielding Material | Aluminum Mylar |
| Insulation Resistance | 10M OMH Min |
| DC-Resistance | DC 300V/10ms |
Additional Information
To learn more about our HDMI Cables here is a link to a page containing more information on our premium HDMI Cables.
| HDMI Type | Max Resolution | Transmission Rate | HDR | Audio Support |
| 1.4 | 4K x 2K at 30Hz | 10.2 Gb/s | No | ARC, Dolby TrueHD, DTS-HD |
| 2.0 | 4K at 60Hz | 18 Gb/s | Yes | HE-AAC, DRA, 32 audio channels |
| 2.1 | 8K at 30Hz | 48 Gb/s | Yes | eARC |
What's In The Box
What's In The Box
- (1) - High Speed HDMI 1.4 Cable, Male to Male with a Built-In Equalizer
