Description

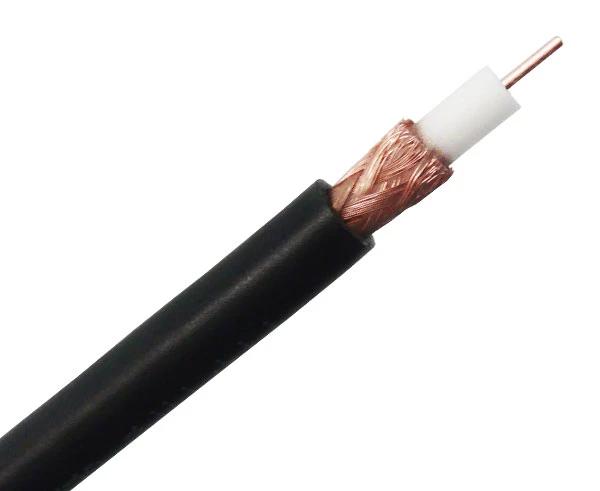

RG59 Coaxial Cable for CCTV Wiring
The RG59 Coaxial Cable is commonly used to connect CCTV surveillance cameras and for radio frequency applications. With a CL2-designated jacket, it's perfect for in-wall installations and has a 75 Ohm resistance.
Applications
Coaxial Cable serves as a conduit for transmitting radio frequency energy, offering a distinct advantage: the electromagnetic field carrying the signal is confined to the space between the inner and outer conductors. This characteristic enables the cable to be installed adjacent to metal objects without experiencing power loss. Additionally, Coaxial Cable provides a shield against external electromagnetic interference, ensuring the integrity of the transmitted signal. It serves as the connection between radio transmitters and receivers and their respective antennas, facilitates computer network (Internet) connections, supports digital audio (S/PDIF), and distributes cable television signals. As such, RG59 Coax cable emerges as an optimal solution for TV cable wiring or coaxial Internet connections.
Product Quality
Our premium Coaxial Cable features a 20 AWG solid bare copper core conductor for optimal signal transmission. Encasing the conductor is a dielectric polyethylene insulation, complemented by 95% bare copper braided shielding. The cable is then encased in a flame-rated PVC jacket. Rest assured, our cables are UL-listed and comply with RoHS regulations.
Where to use Coax Cable
A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as TV, VCR, DVR, satellite receivers. It is also used with security cameras, and GPS Systems.
RG59 Coaxial Cable CCTV Options |
|---|
Features
Features
- Coaxial Cable for Radio Frequency Transmission of CCTV Audio/Video, and Surveillance Applications
- Designated CL2 for In-Wall Installation
- Foam PE Insulation with Black FR-PVC Approved for General Purpose Usage
- 95% Bare Copper Braided Shielding for Signal Protection
- 20 AWG Solid Bare Copper Center Conductor
- Flame Rated PVC Jacket & UV Resistant
- Ideal for CCTV Surveillance Applications
- UL Listed
- RoHS Compliance
- 75 Ohms
- Common Connectors to Use are BNC, Type F, and RCA
- Supplied in 1000' Pull Box
Specifications
Specifications
Additional Information
Additional Information
To learn more about our RG59 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG59 Bulk Coaxial Cable.
What's in the Box
What's in the Box
- RG59 Coax Cable, Indoor, 20 AWG BC Conductor, 95% BC Braid Shielding
- 1000 ft Pull Box
