14/2 Riser Security Alarm Cable (19 Strand) CMR Rated Shielded 1,000'

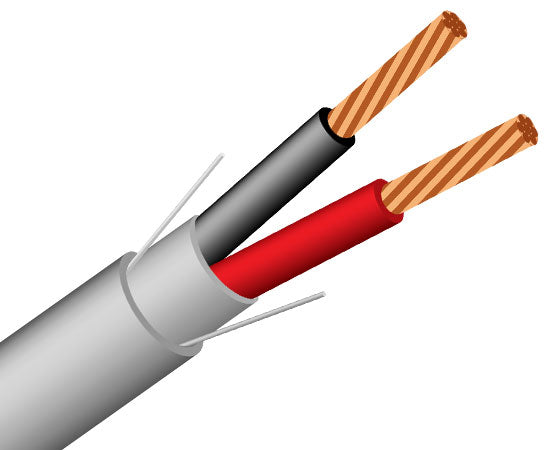

Riser-rated Shielded Security Alarm Cable, 14/2 (19 Strand), CMR Rated, 1,000'. Features stranded bare copper conductors with PVC insulation, twisted configuration, aluminum mylar shielding with a drain wire, and a gray PVC jacket equipped with a rip cord.
Features
Features
- 14 AWG 2 conductors
- 19-strand bare copper conductors
- PVC insulation
- AL foil shielded
- PVC jacket
- Sequential footage marking
- CL3R rated jacket
- ETL listed
- RoHS compliant
- NEC articles
- 14-12 AWG: FPLR, CL3R
Residential or commercial applications
- Security systems
- Intercom systems
- Sound/audio systems
- Power-limited controls
Specifications
Specifications
Physical Construction | |
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 14 AWG |
| Insulation | PVC |
| Nominal OD | 5.74mm |
| Outer Jacket Thickness | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | Gray |
| Strand | 19 |
Electrical Characteristics | |
|---|---|
| Temperature | -25 °C to 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information
What's in the Box
What's in the Box
- Security Alarm Cable - Riser (CMR) - 14/2 AWG, CL3R, Stranded (19 Strand), Shielded, Gray
- 1000 Ft
