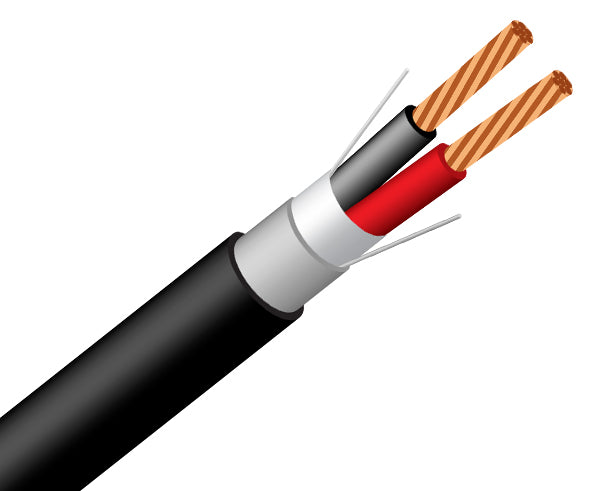

Our water-resistant communication cable is a multi-conductor alarm wire suitable for security systems, intercom systems, sound/audio systems, and power-limited controls. This shielded direct burial cable features stranded bare copper conductors, PVC/nylon insulation, water block tape, aluminum polyester foil with a drain wire, and a black PVC jacket. Additionally, it is resistant to sunlight.
Features
Features
Low Voltage Process Control Circuits
Power-Limited Circuits
Power-Limited Fire
Security Systems
Intercom Systems
Sound/Audio Systems
Power-Limited Controls
Indoor or Outdoor Use
Applications:
Shielded Direct Burial
Water Block Tape
Sun Resistant
18/2 AWG - 7 Strand Bare Copper Conductors
PVC/NYLON Insulation
600V PLTC
Black PVC Jacket
Qty: 1000 Ft
Conductor Jacket Color:
Black
Red
Specifications
Specifications
Water Block Cable Multiple Pairs:
Technical Specs:
Conductor:
Bare Copper
Insulation:
PVC / NYLON
Jacket:
PVC
NEC Articles:
725/760
Voltage Rating:
600 Volts
Temp. Rating:
-39°C to 90°C Dry / 75°C Wet
Applications:
Low Voltage Process Control Circuits | Power-Limited Circuits | Power-Limited Fire Protective
AWG / Cond
Strand
Outer Jacket Thickness
Nominal OD
Available Putups
18/2
7
.040 Inches
1.02 mm
.310 Inches
7.87 MM
500 ft / 1000 ft
What's in the Box
What's in the Box
Security Alarm Cable - Water Block, Sun Resistant Direct Burial, CL3/FPL Rated, 18/2 AWG Stranded (7), Shielded, Black
1000 Ft
Description
Shielded 18/2 Water Block Cable:
Our water-resistant communication cable is a multi-conductor alarm wire suitable for security systems, intercom systems, sound/audio systems, and power-limited controls. This shielded direct burial cable features stranded bare copper conductors, PVC/nylon insulation, water block tape, aluminum polyester foil with a drain wire, and a black PVC jacket. Additionally, it is resistant to sunlight.
