Description

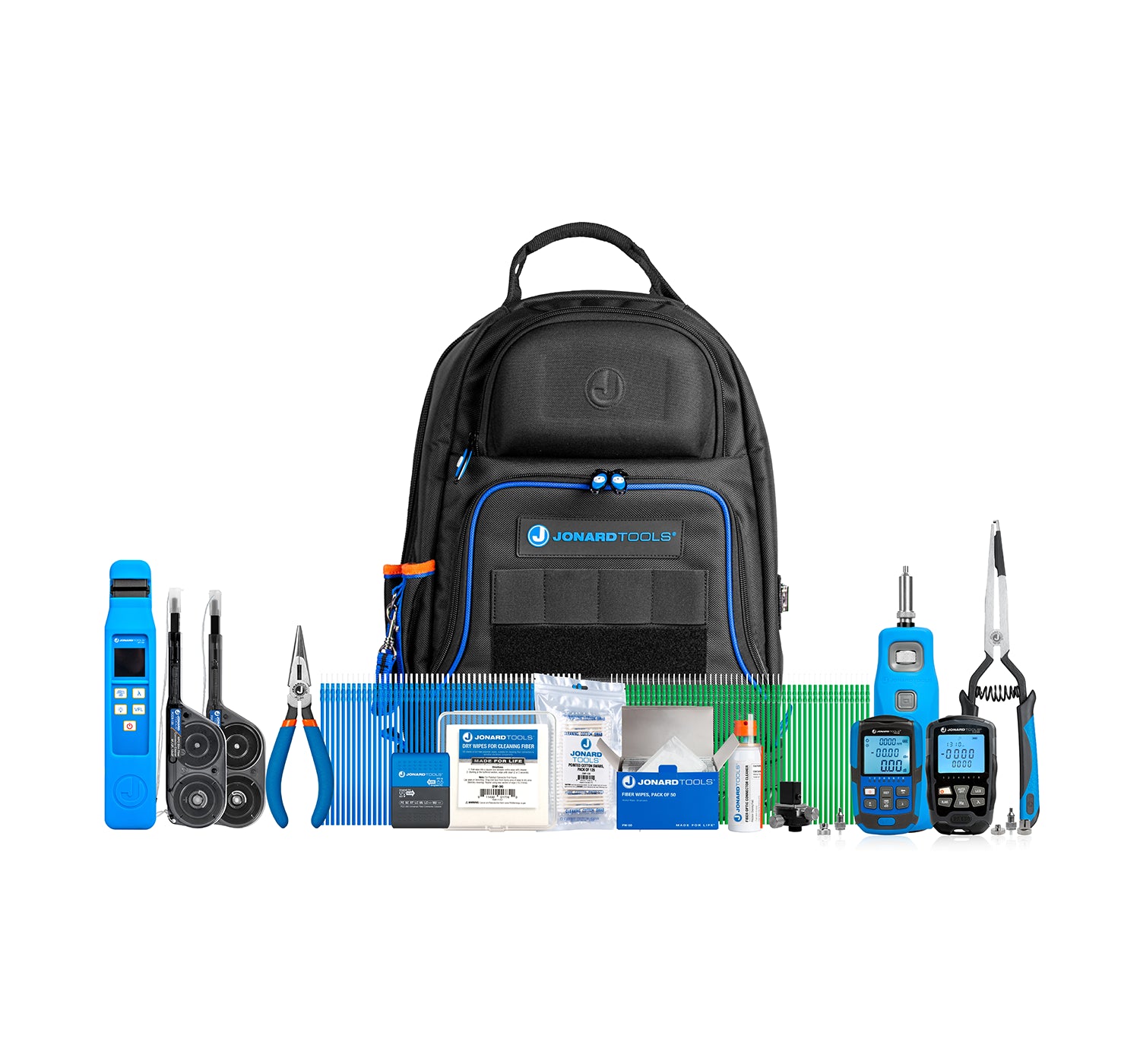

Data Center Fiber Inspection Kit
These purpose-built fiber inspection and cleaning kit for data center technicians responsible for maintaining and verifying fiber infrastructure in enterprise, colocation, and hyperscale environments.
Connector contamination is the leading cause of fiber link failures, and this kit gives technicians everything needed to inspect, clean, and verify fiber connections before they become outages. End-face inspection via wireless microscope covers LC, SC, and MPO 12 and 16 core connectors in high-density patch panels, with a coming soon MPO adapter extending reach to the tightest AI backbone ports. Format-specific cleaning tools and consumables address every connector type in the kit, from 1.25 mm LC and MU ferrules to 2.50 mm SC and ST ferrules and high-density MPO end-faces, ensuring complete contamination removal before every connection.
The kit also covers insertion loss measurement on single-mode fiber runs, live fiber identification without disrupting active traffic, and safe connector handling in crowded rack environments, giving technicians a complete inspection and verification workflow from a single organized backpack.
Features
Features
- The WFM-100 helps inspect LC, SC, MPO 12-core, and MPO 16-core fiber connector end-faces, catching contamination before it degrades link performance or causes outages.
- Clean fiber connectors using format-specific tools such as CLS-125/50 cleaning sticks for LC, CLS-250/50 cleaning sticks for SC or FCC-300 for LC/SC Single or Duplex, FCCS-120 for MPO 12-core, and FCCS-160 for MPO 16-core. Additional consumables such as CWP-125 swabs, DW-90 dry wipes, FCF-3 Precision Cleaning Fluid, and FW-50 wet wipes included providing a full solution to removing particulate contamination that raises insertion loss in ways the human eye cannot detect.
- Measure insertion loss FPM-50S and verify fiber link performance FLS-50S across single-mode installations, covering commissioning sign-off, ongoing maintenance verification, and fast first-pass fault checks without requiring full OTDR setup.
- Identify live fiber and confirm signal presence on active fiber runs without disrupting traffic, OFI-100 provides a safe, non-intrusive way to verify which fibers are in service before cleaning, patching, or rerouting connections in live data center environments.
- Reach into high-density fiber patch panels for controlled connector insertion and removal where finger access is limited with the FCT-100, without disturbing adjacent live connections during inspection and cleaning work, and use the JIC-842 long nose pliers for gripping, bending, and cutting in tight spaces where standard hand access won't reach.
- Keep all inspection, cleaning, and verification tools organized and field-ready in the BP-100 rugged technician backpack, built for technicians working across large hyperscale data halls, colocation facilities, and enterprise server rooms where fiber reliability directly impacts network uptime.
Optional Add-Ons
-
AST-210 - CableSaber+ Armored Cable Slitter
-
FLC-3505 - Singlemode Fiber Optic Launch Box, 350 m, SC/UPC-SC/APC
- OTDR-1100 - Multi-Function Touchscreen OTDR, 1310/1550 nm, 28/26 dB
- OTDR-1500 - Professional Multi-Function OTDR, 1310/1550 nm
- OTDR-1650 - Professional Multi-Function OTDR, 1310/1550/1650 nm 36dB
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DATA CENTER TYPE | TRADITIONAL (EDGE, ENTERPRISE, COLOCATION), HYPERSCALE (CLOUD, LARGE-SCALE), AI NETWORK (CAMPUS/GPU CLUSTERS) |
| ENVIRONMENT TYPE | INSIDE PLANT (ISP) & OUTSIDE PLANT TO INSIDE PLANT (OSP-TO-ISP) |
| SOLUTIONS FOCUS | CABLING INFRASTRUCTURE: FIBER |
| LIFECYCLE PHASE | ALL PHASES (PREP & INSTALL, CLEANING & INSPECTION, TESTING & COMMISSION, REPAIR & MAINTENANCE) |
| CAPABILITIES | BEND, CABLE TESTING, CLEAN, CUT, FIBER TESTING, INSPECTION, GRIP, PULL, STRIP, STORE & CARRY |
| CABLE TESTING CAPABILITIES | RJ45 CONTINUITY AND TRACKING |
| CLEANING CAPABILITIES | WET WIPING DRY WIPING CLICK CLEANING: FC, LC, SC, ST, MU, LC-DUPLEX, MU-DUPLEX, MPO/MTP 8, 12, 24 (12X2), 16, 32 (16X2) CONNECTORS & PORTS CLEANING STICKS: 1.25 MM LC & MC, 2.5 FC, SC, ST CONNECTORS |
| CUTTING CAPABILITIES | SIDE-CUT: HIGH STRENGTH WIRE, BOLTS, NAILS |
| FIBER TESTING CAPABILITIES | OPTICAL INSERTION LOSS: 1310/1550 NM OPTICAL POWER PERFORMANCE: 800-1650 NM, -50 TO +26DBM OPTICAL FIBER IDENTIFICATION: 270HZ, 1KHZ, 2KHZ VISUAL FAULT LOCATION: 2 MW RJ45 CONTINUITY AND TRACKING |
| INSPECTION CAPABILITIES | 1.25 MM LC (PC/UPC) & 2.5 MM FC/SC/ST (PC/UPC) MPO/MTP 8, 12, 24 (12X2), 16, 32 (16X2) CONNECTORS |
| PULLING & GRIPPING CAPABILITIES | LC, SC-SIMPLEX, SC-DUPLEX, MU, MT-RJ GENERAL MATERIALS |
| REMOVAL METHOD | STRIP: PVC, RUBBER, PE |
| STRIPPING CAPABILITIES | 18 AWG & 22 AWG |
| DIMENSIONS | 14.76 IN X 7.4 IN X 18.7 IN |
| WEIGHT | 11.212 LB |
| UPC # | 810215350605 |
What's in the Box
What’s in the Box
- Qty 1 - Data Center Fiber Inspection Kit
| KIT INCLUDES | |
|---|---|
| BP-100 | TECHNICIAN’S TOOL BAG BACKPACK |
| CLS-125/50 | CLEANING STICKS FOR FIBER OPTIC CONNECTORS, 1.25 MM, BOX OF 50 |
| CLS-250/50 | CLEANING STICKS FOR FIBER OPTIC CONNECTORS, 2.50 MM, BOX OF 50 |
| CWP-125 | POINTED COTTON SWABS, PACK OF 125 |
| DW-90 | DRY WIPES FOR CLEANING FIBER |
| FCC-300 | UNIVERSAL FIBER CONNECTOR CLEANER |
| FCCS-120 | SLIM FIBER CONNECTOR CLEANER, MPO 12 CORE |
| FCCS-160 | SLIM FIBER CONNECTOR CLEANER, MPO 16 CORE |
| FCF-4 | ALL IN ONE FIBER OPTIC CLEANING FLUID |
| FCT-100 | FIBER CONNECTOR TOOL FOR LC, SC CONNECTORS |
| FPL-5050S | MINI LIGHT SOURCE & POWER METER KIT |
| FW-50 | FIBER WIPES, WET (PACK OF 50) |
| JIC-842 | LONG NOSE AND SIDE CUTTING PLIERS |
| OFI-100 | ADVANCED OPTICAL FIBER IDENTIFIER W/ POWER METER & VFL |
| WFM-100 | WIRELESS FIBER INSPECTION MICROSCOPE W/ UPC ADAPTERS |
| WFM-MPOU | WIRELESS FIBER MICROSCOPE W/ MPO/UPC ADAPTER |
