This fiber patch panel is only compatible with either our FB25-4000STP24 splice tray or FB25-3401STP36, which are sold separately. To find out more, give us a call or email us.
Description

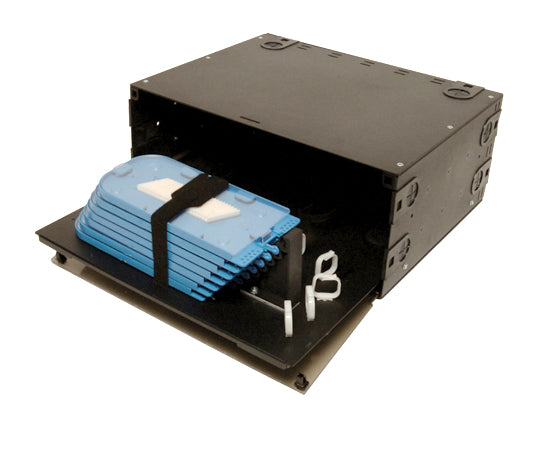

Fiber Patch Panel, Slide-Out Splice Shelf, Rack Mount 4RU, Holds 8 Splice Trays - Black
The FB23-3928RSS8 is a 4 Rack Unit (4RU) in-rack splice shelf designed to support up to 96 individually spliced fibers. The fiber housing has a slide out master panel that allows for accessing splice trays for ease in installation and maintenance. The fiber enclosure supports up to four 8 fiber splice trays. Trays are hinged to allow for accessing splices in trays beneath to eliminate the requirement for tray removal. The FB23-3928RSS8 is one of a family of units that support fiber splicing and termination in rack mount applications. Black, Aluminum.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
* Note: One splice tray included. Splice trays sold separately.
Includes one (1) FB25-4000STP24 splice tray. Remaining splice trays are sold separately.
Comparable to Corning's CSH-03U
Features
Features
- Provides storage for up to 8 splice trays.
- Includes one splice tray FB25-4000STP24 with 24 single fusion splice capacity.
- Supplied with mounting hardware for 19" or 23" mounting.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CAPACITY | |
| SPLICE TRAYS OPTIONS (SOLD SEPARATELY) | (8) FB25-4000STP24 24 FIBER SPLICE TRAYS (ONE INCLUDED) |
| ADDITIONAL OPTION | (8) FB25-3401STP36 36 FIBER SPLICE TRAYS |
| DIMENSIONS | |
| DEPTH | 14" |
| HEIGHT | 7" |
| WIDTH | 17" |
| WEIGHT | 8.35 LBS |
| PHYSICAL PROPERTIES | |
| COLOR | BLACK |
| MATERIAL | 0.060" POWDER COATED ALUMINUM |
What's in the Box
What's in the Box
- Qty 1 - Fiber Splice Shelf, Slide-Out, 4U
