This splice tray is only compatible with our FB23 fiber patch panels and FB23 wall mount enclosures. To find out more, give us a call or email us.
Description

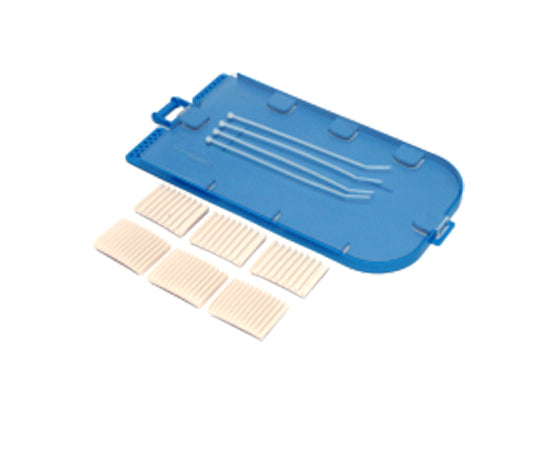

Splice Tray - Plastic 36 Single Fiber Splice Tray
The FB25-3401STP36 Plastic splice tray commonly used in enclosures that can be used to accommodate various splice capacities and types. (fits FB23-4493RHD3, FB23-4494RHD6, FB23-4495RHD9, FB23-4496RHD12, FB23-4497RHD24 and FB23-4381-288DE)
This tray is fully compliant to the industry specification Telcordia GR-769 related to its support of both single and mass fusion splicing.
This tray is ideal for medium sized fiber splicing projects. This tray cradles up to 36 spliced fiber optic wires.
Features
Features
- 36 Single fusion splice capacity.
- 72 (144) Dual stacked single fusion splice capacity.
- 96 Mass fusion splice capacity.
- Adhesive-backed fiber insert holders and assorted cable ties included.
- Provides protection and organization of fiber splices.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
Capacity |
|
| Single Fusion | 36 Splices |
| Dual Stacked Single Fusion | 72 Splices / 144 Splices |
| Mass Fusion | 96 Splices |
Dimensions |
|
| Depth | 0.5" |
| Length | 10.75" |
| Width | 5.75" |
Physical Properties |
|
| Material | Plastic |
| Color | Blue base with clear cover |
What's in the Box
What’s in the Box
- Qty 1 - Fiber Splice Tray, 36 Single Fusion Splices, Plastic, 0.5in x 10.75in x 5.75in
