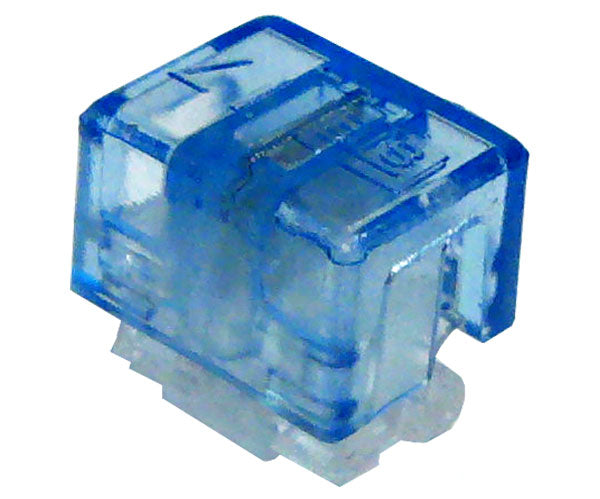

Telcom Splicing Connector, UB-Gel Filled, 22-26AWG

SKU: CN1-3200-UB
Vendor
Primus Cable
Regular price
$0.15
Sale price
$0.15
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
1 / Single Unit
25 Pack
100 Pack

Description

Telecom Splicing Connector, UB Gel-Filled

The UB Gel-Filled Telecom Splicing Connector utilize an insulation displacement contact design for fast, simple, reliable terminations. No wire stripping is required and connectors will accept wire of different gauges. All splice connectors are Gel filled to provide moisture resistance and inhibit corrosion. For use with solid copper conductors only.

Typical uses include Butt Splicing 2 or 3 wires of the same or different gauges. Perfect for pigtail and load coil splice applications. Use the UB connector for tapping onto an existing conductor with no service interruption. This eliminates cutting of cable pairs or opening cable pairs.

For best results, crimp with Connector Pressing Telecom Pliers - TL1-3201-U.

Features

Features

  • Utilizes and insulation displacement contact design
  • Enables fast, simple, and reliable terminations
  • Eliminates cutting or opening of cable pairs for simple and quick terminations
  • No wire stripping is required, making installations faster and neater, as there is no mess to clean up
  • Connectors will accept wires of different gauges
  • Gel filled to provide moisture resistance and inhibit corrosion
  • For use with solid copper conductors only

Specifications

Product Details:

Works with: 22AWG to 26AWG
Capabilities: 2 Wire
Max Insulation OD: .050" (1.27mm)

Ideal For:

Butt splicing 2 wires of the same or varying gauges
Pigtail and load coil splice applications
Tapping onto an existing conductor with no service interruption
Eliminates cutting of cable pairs or opening cable pairs

The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

Additional Information

Additional Information

To learn more about our Telco Products here is a link to a page containing more information on our premium Telco Products.

What's in the Box?

What's in the Box?

  • Qty 1 (single unit / 25 Pack and/or 100 Pack) - Telcom Splicing Connector, UB-Gel Filled, 22-26AWG
