Description

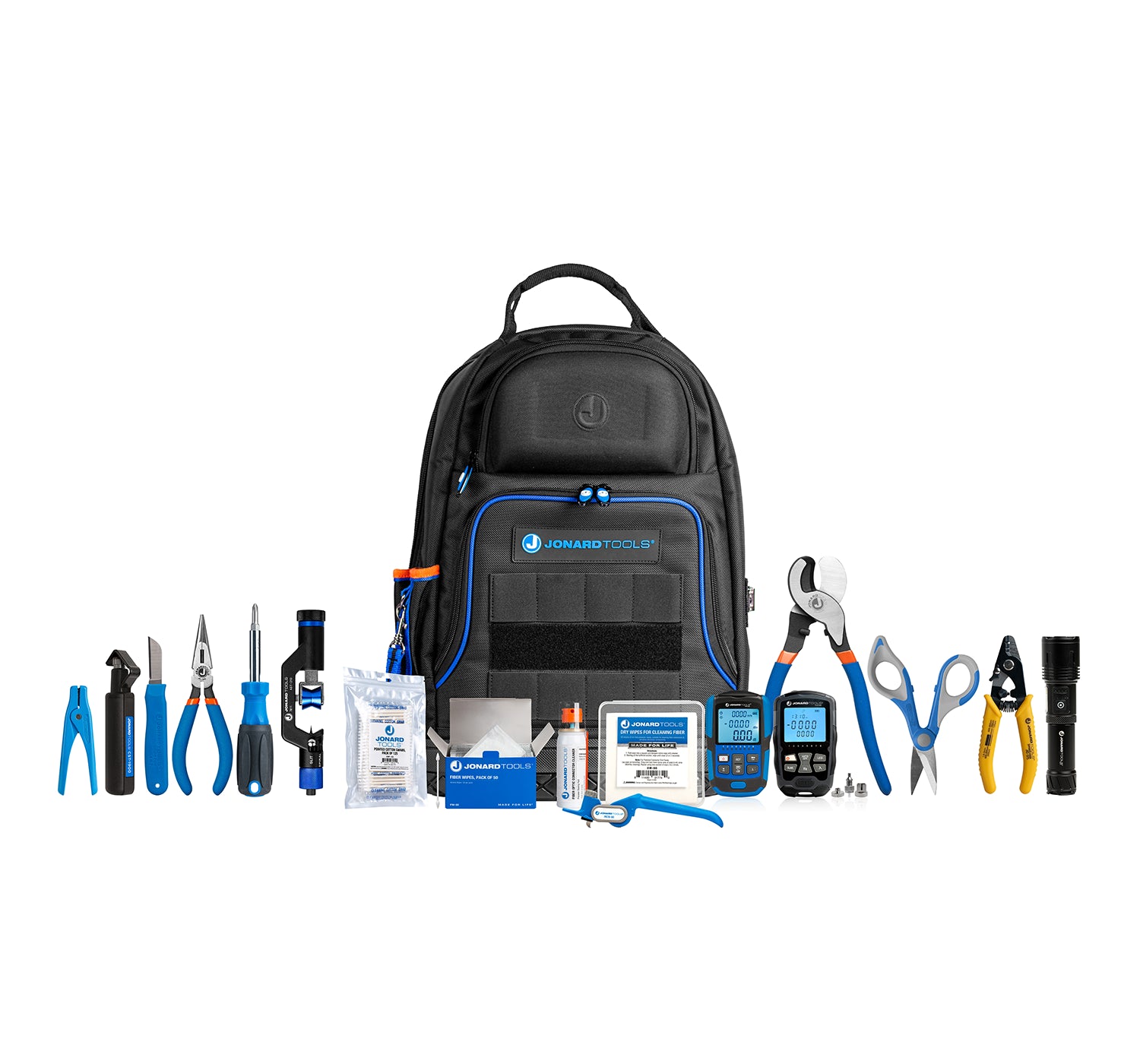

Data Center Fiber Installation Kit
These purpose-built fiber installation kit for technicians handling backbone fiber work including traditional set ups like edge & enterprise, hyperscales, colocations and AI networks.
This kit covers every hands-on stage of fiber cable installation, from slitting and ringing armored and standard fiber cable jackets across a wide range of outer diameters, to cutting Kevlar and aramid yarn strength members cleanly, separating ribbon fiber for individual splice prep, stripping coating and buffer layers precisely before termination, and verifying completed links with insertion loss measurement and visual fault location.
Whether commissioning new backbone fiber runs in a hyperscale data hall, splicing into existing infrastructure during a capacity expansion, or performing mid-span access on armored cable in a live colocation environment, the TK-DC08 gives technicians the right tool for every stage of the fiber installation workflow, all organized in a rugged technician backpack built for daily on-site use.
Features
Features
- Prepare armored and standard fiber cable for termination and splicing across backbone installations and mid-span access work with the AST-210 for armored fiber slitting and ringing, CST-1900 for standard jacket stripping across a wide range of outer diameters, and JIC-375 for precise multi-layer stripping of jackets, buffer layers, and coatings
- Cut and slit fiber cable with the right tool for each material. JIC-186 cuts Kevlar and aramid yarn strength members cleanly in a single pass, JIC-63050 handles high-leverage cable cutting, KN-7 covers general cable splicing, and RCS-30 slits duct and cable with a ratcheting action. Eliminate frayed cuts, slow progress, and tool damage that comes from using the wrong cutter on high-strength fiber cable materials.
- Separate individual ribbon fibers from multi-fiber ribbon cable for splice prep with RFS-100, then clean bare fiber and connector end-faces before splicing and termination using CWP-125 cotton swabs, FCF-3 Precision Cleaning Fluid and DW-90 dry wipes or FW-50 wet wipes. Remove contamination that causes insertion loss and splice failure across MPO backbone systems and high-density trunk cabling in hyperscale and enterprise environments.
- FLS-50S verifies fiber link performance while VFL-150 locates gross faults quickly after installation. FPM-50S measures insertion loss on completed single-mode runs and tracing breaks, tight bends, and miswired ports as visible light without requiring full OTDR setup time.
- Work through every hands-on task in the fiber installation workflow, SD-61 drives the full range of rack and panel fastener types, JIC-842 handles gripping, bending, and cutting in tight spaces, and SOL-F1 keeps low-light cable trays, duct runs, and equipment aisles visible throughout the installation.
- Keep all fiber installation tools organized and field-ready in the BP-100 rugged technician backpack, covering every prep and verification stage for backbone fiber work across new hyperscale data hall commissioning, enterprise network builds, and colocation capacity expansions.
Optional Add-Ons
-
FCCS-120 - Slim Fiber Connector Cleaner, MPO 12 Core
-
FCCS-160 - Slim Fiber Connector Cleaner, MPO 16 Core
-
FDC-66 - Fiber Scraps Disposal Can
-
FOD-2000 - Fiber Optic Drop Cable Slitter
- FPS-4024/100 - SPARC Fiber Protective Sleeves, Heat Shrink, 40 mm x 2.4 mm, Pack of 100
- FPS-4512/100 - SPARC Fiber Protective Sleeves, Heat Shrink, 45 mm x 1.2 mm, Pack of 100
- FPS-6015/100 - SPARC Fiber Protective Sleeves, Heat Shrink, 60 mm x 1.5 mm, Pack of 100
- FPS-6024/100 - SPARC Fiber Protective Sleeves, Heat Shrink, 60 mm x 2.4 mm, Pack of 100
- FPS-6026/100 - SPARC Fiber Protective Sleeves, Heat Shrink, 60 mm x 2.6 mm, Pack of 100
- FPS-6028/100 - SPARC Fiber Protective Sleeves, Heat Shrink, 60 mm x 2.8 mm, Pack of 100
- FSP-E70 - SPARC Electrodes, Pack of 2
-
MS-836 - Mid Span Slit & Ring Tool for RocketRibbon Cable
-
RRS-1222 - RocketRibbon Cable Shaving Tool, 12 - 22 mm
- SOC-SCA3 - SPARC Linc Splice On Connector, Singlemode SC/APC 3.0 mm
- SOC-SCA9 - SPARC Linc Splice On Connector, Singlemode SC/APC 900 um
-
SPCL-1 - SPARC FIRE Fusion Splicer, Clad Alignment
-
SPCO-1 - SPARC FIRE CORE Fusion Splicer, Core Alignment
- SPRI-1 - SPARC FIRE Ribbon Fusion Splicer, Core Alignment
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DATA CENTER TYPE | TRADITIONAL (EDGE, ENTERPRISE, COLOCATION), HYPERSCALE (CLOUD, LARGE-SCALE), AI NETWORK (CAMPUS/GPU CLUSTERS) |
| ENVIRONMENT TYPE | INSIDE PLANT (ISP) & OUTSIDE PLANT TO INSIDE PLANT (OSP-TO-ISP) |
| SOLUTIONS FOCUS | CABLING INFRASTRUCTURE: FIBER |
| LIFECYCLE PHASE | ALL PHASES (PREP & INSTALL, CLEANING & INSPECTION, TESTING & COMMISSION, REPAIR & MAINTENANCE) |
| CAPABILITIES | BEND, CABLE TESTING, CLEAN, CUT, DRIVE, FIBER TESTING, ILLUMINATE, GRIP, PULL, SEPARATE, STRIP, STORE & CARRY |
| CABLE TESTING CAPABILITIES | CONTINUITY AND TRACKING |
| CLEANING CAPABILITIES | WET WIPING, DRY WIPING |
| CUTTING CAPABILITIES | SERRATED CUT: KEVLAR, WIRE SIDE-CUT: HIGH STRENGTH WIRE, BOLTS, NAILS DIAGONAL CUT: WIRE SHEAR CUT: 2/0 COPPER, 4/0 ALUMINUM, 100-PAIR (24 AWG) CABLE, UP TO 13/16” (20.64 MM) SLICE CUT: CABLE JACKETS |
| DRIVER CAPABILITIES | PHILLIPS: #1 X 4”, #2 X 4” CABINET SLOTTED: 3/16” X 4”, 9/32” X 4” HEX: 1/4” X 4”, 5/16” X 4” |
| FIBER TESTING CAPABILITIES | OPTICAL INSERTION LOSS: 1310/1550 NM OPTICAL POWER PERFORMANCE: 800-1650 NM, -50 TO +26DBM VISUAL FAULT LOCATION: 2 MW |
| ILLUMINATING CAPABILITIES | 250-1500 LM, 4-8 HRS |
| PULLING & GRIPPING CAPABILITIES | GENERAL MATERIALS |
| REMOVAL METHOD | SLIT: PVC, RUBBER, PE, ARMORED OR THICK CABLE JACKETS, MICRODUCTS SPIRAL: PVC, RUBBER, PE, ARMORED OR THICK CABLE JACKETS RING: PVC, RUBBER, PE, ARMORED OR THICK CABLE JACKETS, MICRODUCTS STRIP: PVC, RUBBER, PE, BUFFER COATING, ACRYLATE SEPARATE: ROLLABLE RIBBON FIBERS |
| STRIPPING CAPABILITIES | ROUND CABLE: 3/16-1-1/8” (4.76-28.58 MM) DIAMETER THICK JACKET/HEAVY DUTY FIBER, ELECTRICAL, UTILITY CABLE: 0.157”-1.181” (4-30 MM) UP TO 0.256” (0.65 CM) THICK ARMORED CABLE: 0.157”-1.181” (4-30 MM) UP TO 0.256” (0.65 CM) THICK MICRODUCTS: 0.98”-BEYOND (25MM-BEYOND) UP TO 0.20” (5 MM) THICK FIBER OPTIC CABLE: 600-900 MICRON BUFFER COATING, AND 250 MICRON ACRYLATE COATING, 1.6 MM-3.0 MM FIBER CABLE JACKET |
| DIMENSIONS | 14.76 IN X 7.4 IN X 18.7 IN |
| WEIGHT | 13.177 LB |
| UPC # | 810215350612 |
What's in the Box
What’s in the Box
- Qty 1 - Data Center Fiber Installation Kit
| KIT INCLUDES | |
|---|---|
| AST-210 | CABLESABER+™ |
| BP-100 | TECHNICIAN’S TOOL BAG BACKPACK |
| CST-1900 | ROUND CABLE STRIPPER - 3/16” TO 1-1/8” |
| CWP-125 | POINTED COTTON SWABS, PACK OF 125 |
| DW-90 | DRY WIPES FOR CLEANING FIBER |
| FCF-4 | ALL IN ONE FIBER OPTIC CLEANING FLUID |
| FPL-5050S | MINI LIGHT SOURCE & POWER METER KIT |
| FW-50 | FIBER WIPES, WET (PACK OF 50) |
| JIC-186 | WIRE & KEVLAR® CUTTING SHEARS |
| JIC-842 | LONG NOSE AND SIDE CUTTING PLIERS |
| JIC-375 | FIBER OPTIC STRIPPER, THREE HOLE |
| JIC-63050 | HIGH LEVERAGE CABLE CUTTER |
| KN-7 | ERGONOMIC CABLE SPLICING KNIFE |
| SD-61 | 6-IN-1 MULTI-BIT SCREWDRIVER WITH PHILLIPS & SLOTTED BITS |
| RCS-30 | RATCHETING DUCT AND CABLE SLITTER |
| RFS-100 | ROLLABLE RIBBON FIBER SEPARATOR |
| SOL-F1 | SOLIS™ RECHARGEABLE TACTICAL FLASHLIGHT |
| VFL-150 | VISUAL FAULT LOCATOR KIT |
