Description

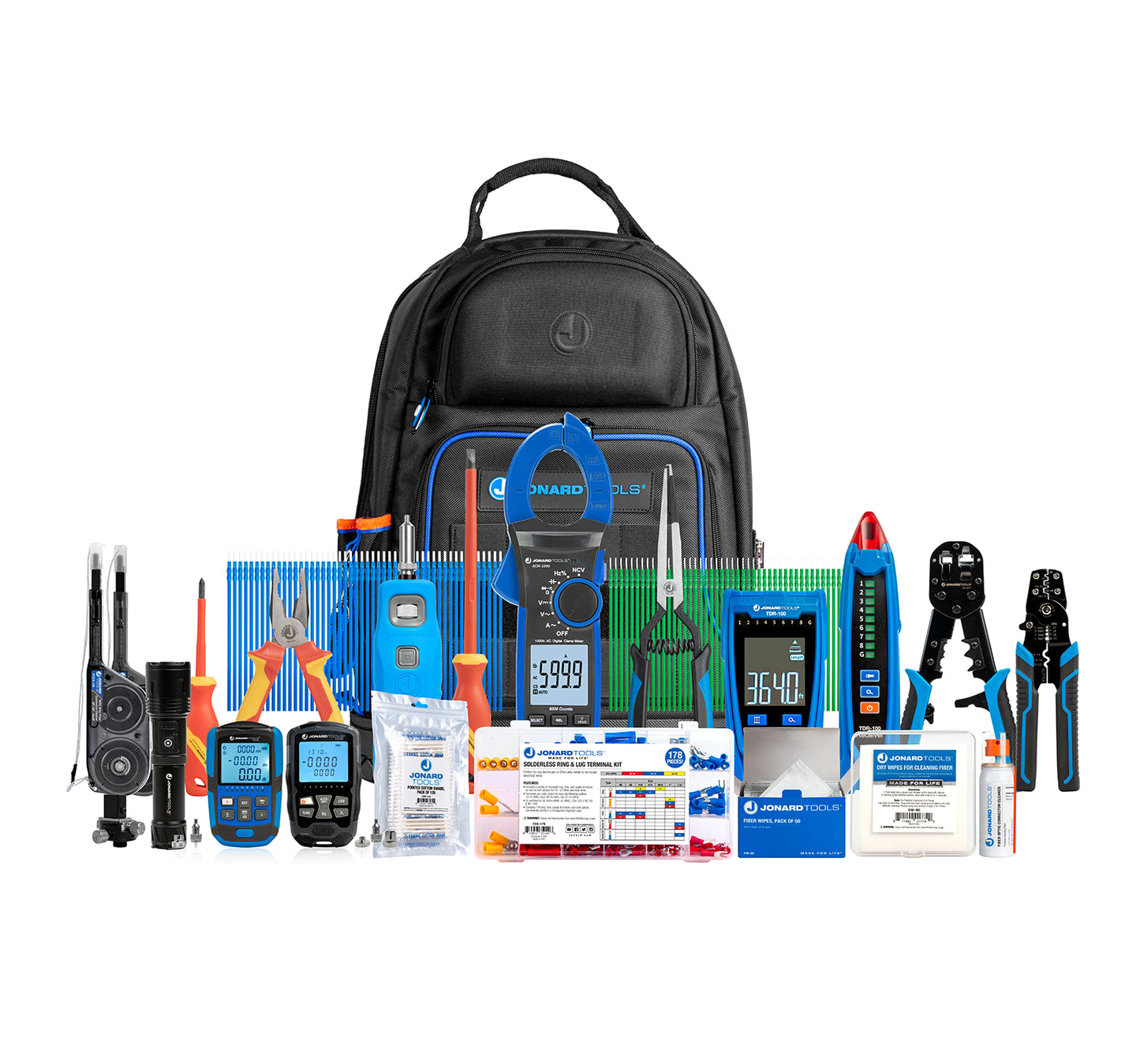

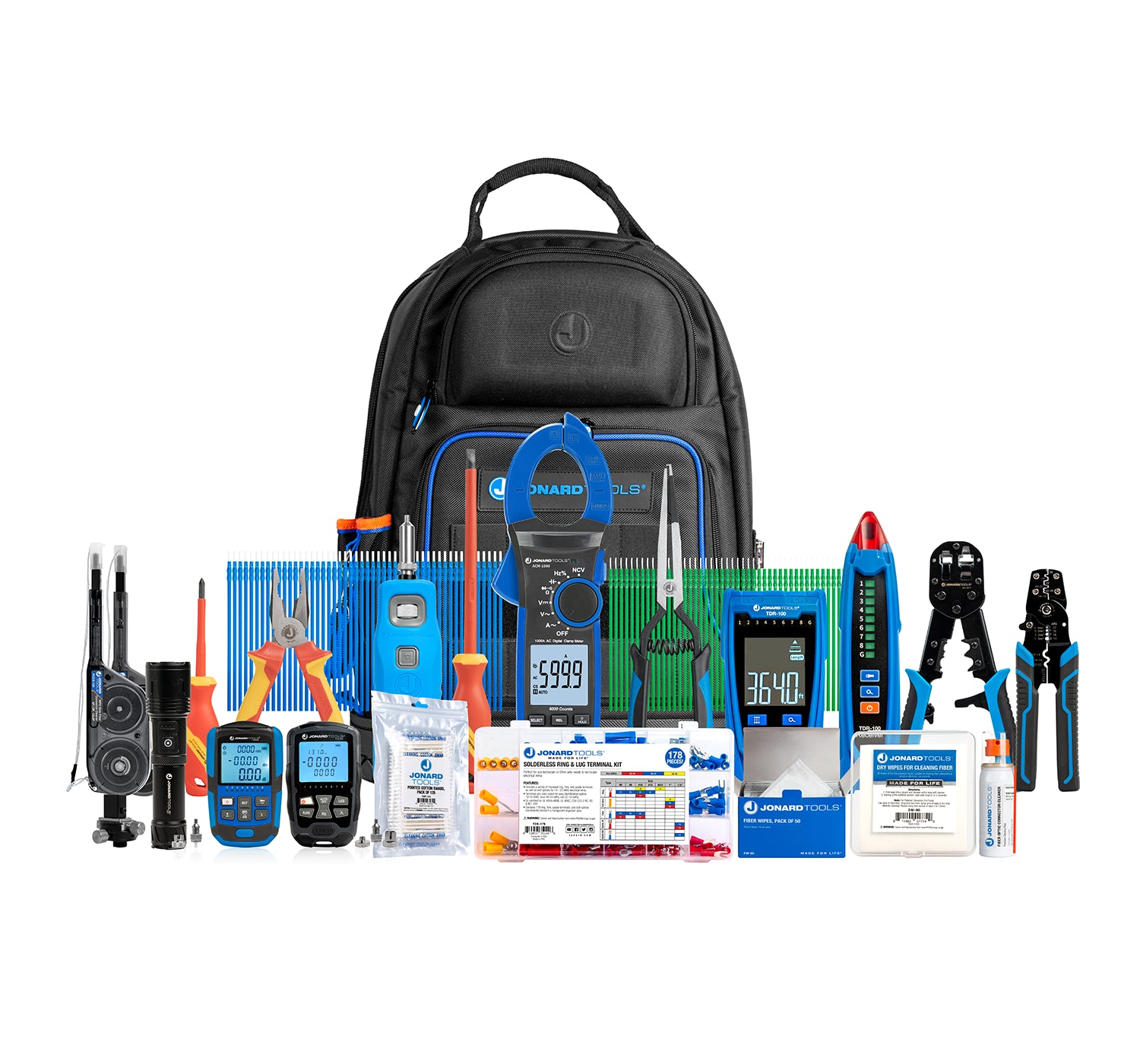

Data Center Operations & Maintenance Kit
The Jonard Tools TK-DC03 is a purpose-built operations and maintenance kit for data center technicians responsible for keeping fiber, copper, and power infrastructure running in all data center types including traditional set ups like edge & enterprise, hyperscales, colocations and AI networks.
This kit addresses the full range of routine O&M work, from inspecting and cleaning LC, SC, MPO 12-core, and MPO 16-core fiber connectors to testing copper cable runs, validating continuity, and performing live electrical work safely around data center power distribution.
Whether you are troubleshooting a degraded fiber link, tracing an unlabeled copper run, or working around live grounding buses and PDU panels, the TK-DC03 has the right tool for the task, all organized and ready for the demands of daily on-site maintenance work.
Features
Features

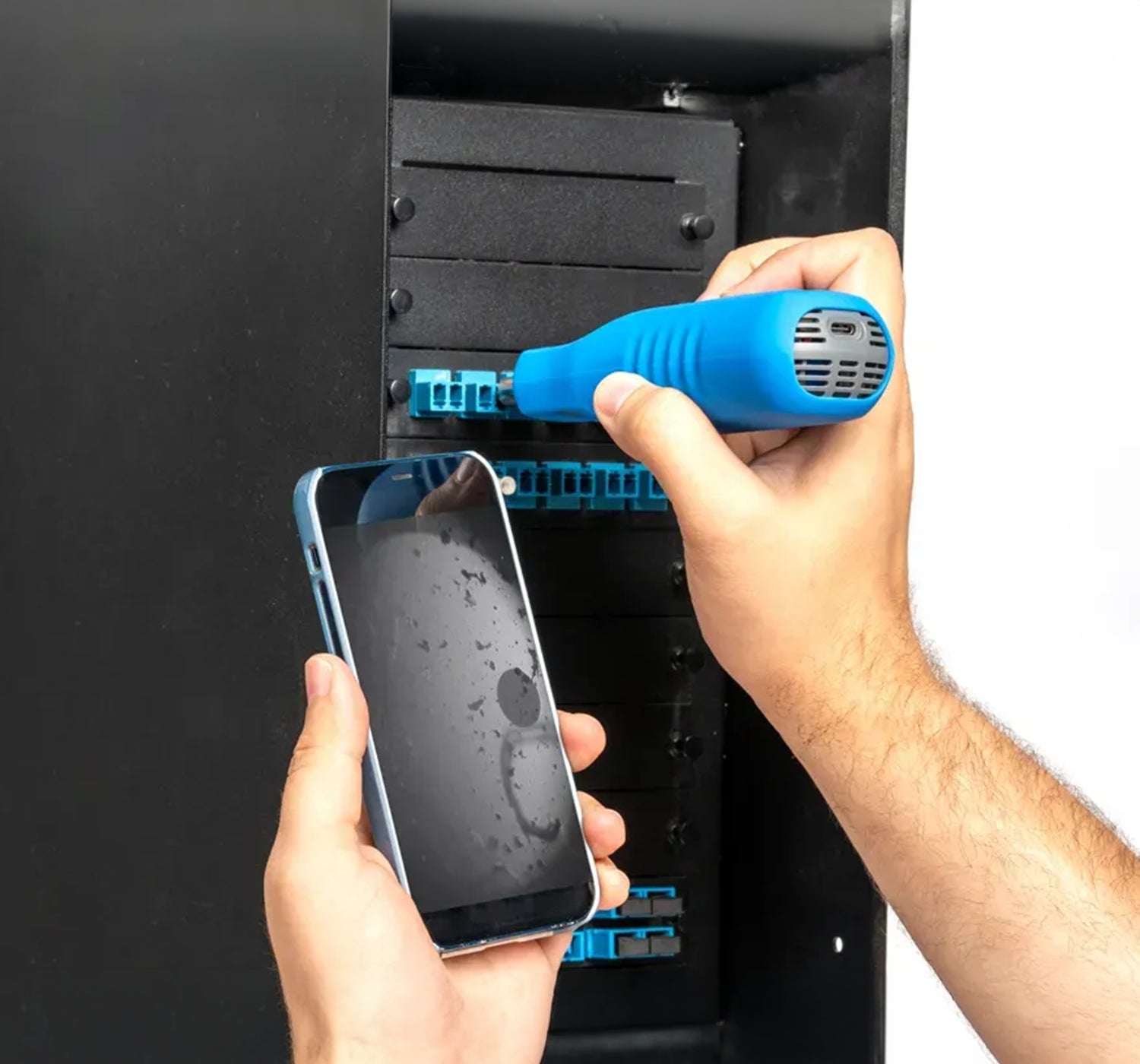

- FCT-100 safely removes fiber connectors from high density panels and ports while the WFM-100 helps inspect LC, SC, MPO 12-core, and MPO 16-core fiber connector end-faces, catching contamination before it degrades link performance or causes outages.

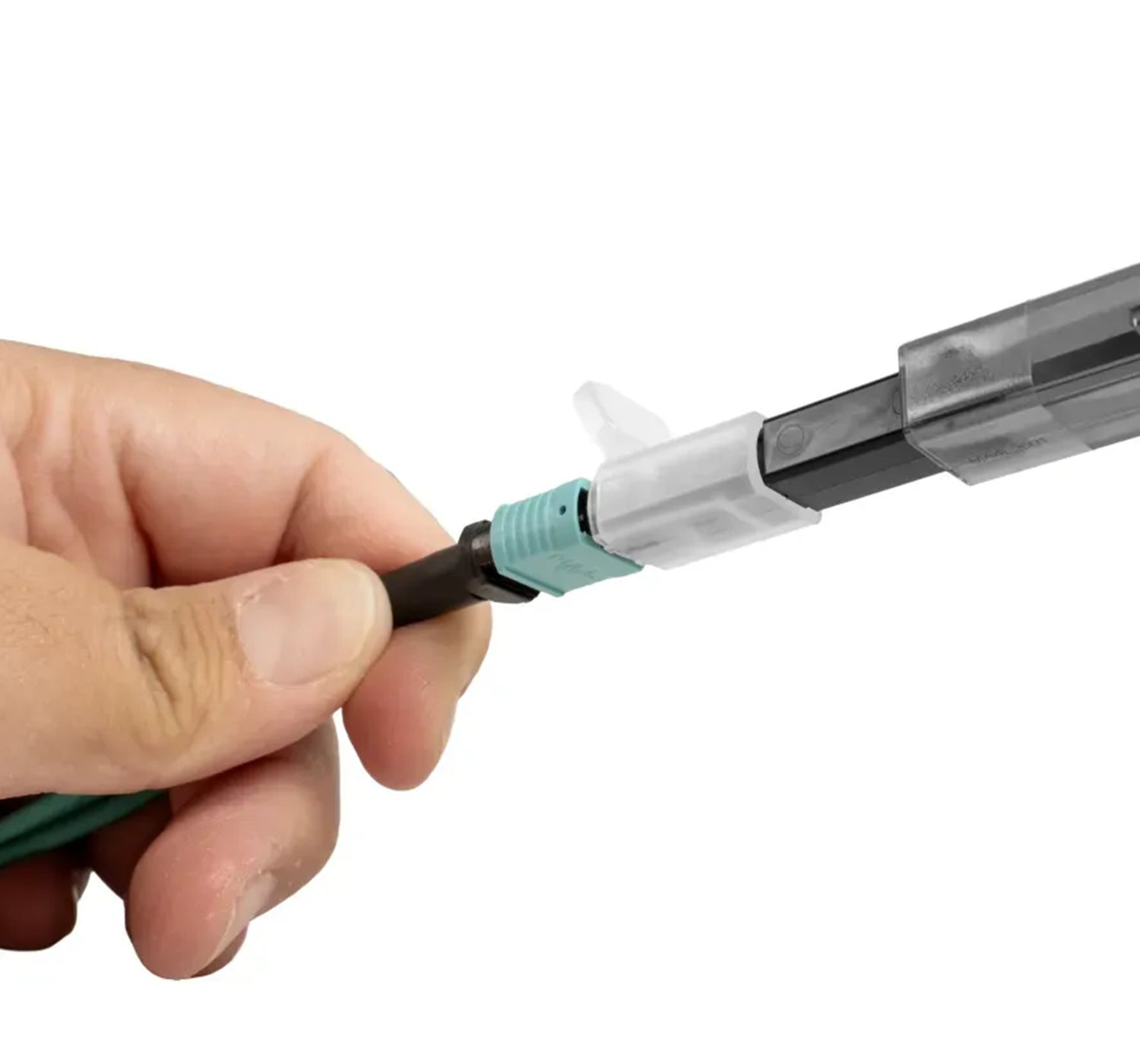

- Clean fiber connectors using format-specific tools such as CLS-125/50 for LC, CLS-250/50 for SC, FCCS-120 for MPO 12-core, and FCCS-160 for MPO 16-core. Additional consumables such as CWP-125 swabs, DW-90 dry wipes, FCF-4 All in One Fiber Optic Cleaning Fluid, and FW-50 wet wipes included providing a full solution to removing particulate contamination that raises insertion loss in ways the human eye cannot detect.

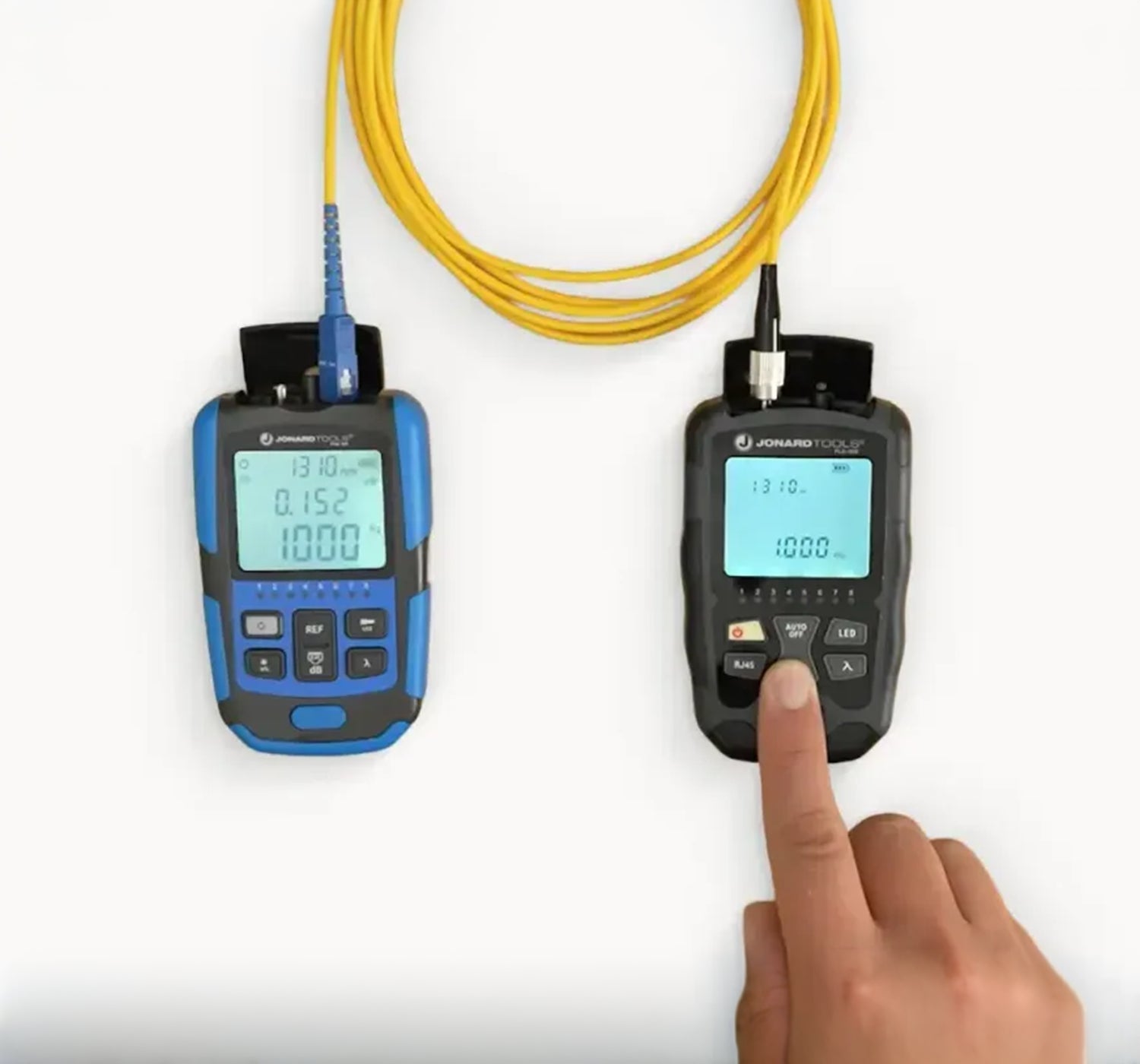

- Measure insertion loss FPM-50S and verify fiber link performance FLS-50S across single-mode installations, covering commissioning sign-off, ongoing maintenance verification, and fast first-pass fault checks without requiring full OTDR setup.

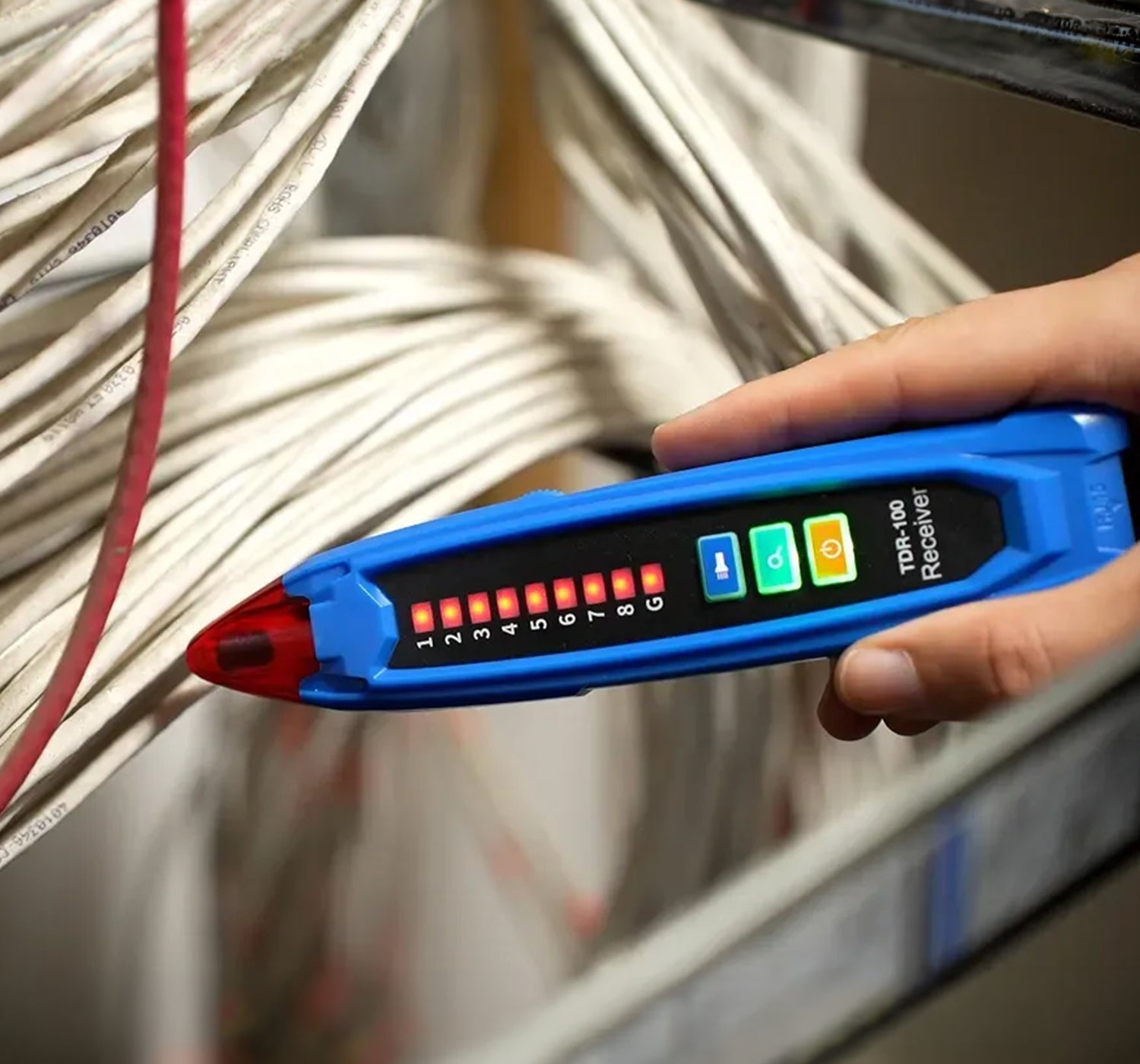

- Trace cable runs, verify continuity, and pinpoint fault distance on copper infrastructure with the TDR-100 across raised floors, overhead trays, and crowded patch panels reducing exploratory demolition. Maintain efficiency during maintenance with the modular crimper and cutter UC-4511 during O&M and break-fix work.
- Work safely around data center power distribution panels, grounding buses, and PDU feeds. ACM-1000 detects voltage and common electrical issues. TCK-178 and TCC-178 provides a full termination solution while 1,000V-rated insulated hand tools rated to IEC standards, covers the driving with INS-180 and INS-8175, and fastening tasks with INP-1072 most common in data center electrical maintenance.
- Stay safe and productive during rack work with SOL-F1 rechargeable lighting for low-light aisles and BP-100 heavy-duty backpack for organization.
Optional Add-Ons
-
ACM-1500DC - Solar+ Clamp Meter CAT III 1500 V
-
AMM-600 - 600V Automatic Intelligent Digital Multimeter
-
CSR-1575 - Cable Slit & Ring Tool
- RJ456A-SC - Shielded RJ45 Connector with Crimp Tail for Cat6A Cable,
- Pack of 100
- TETP-1000D - Cable Tester & Digital Toner
- UC-864 - Modular Crimping Tool - 6 In 1
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| L x W x H | 14.76 X 7.4 X 18.7 |
| WEIGHT | 16.722 LBS |
| DATA CENTER TYPE | TRADITIONAL (EDGE, ENTERPRISE, COLOCATION), HYPERSCALE (CLOUD, LARGE-SCALE), AI NETWORK (CAMPUS/GPU CLUSTERS) |
| ENVIRONMENT TYPE | INSIDE PLANT (ISP) & OUTSIDE PLANT TO INSIDE PLANT (OSP-TO-ISP) |
| SOLUTIONS FOCUS | OPERATIONS |
| LIFECYCLE PHASE | ALL PHASES (PREP & INSTALL, CLEANING & INSPECTING, TESTING & COMMISSION, REPAIR & MAINTENANCE) |
| CAPABILITIES | BEND, CABLE TESTING, CLEAN, CRIMP, CUT, DRIVE, ELECTRICAL TESTING, FIBER TESTING, GRIP, ILLUMINATE, INSPECTION, PULL, TERMINATE, STORE & CARRY |
| CABLE TESTING CAPABILITIES | TONE & PROBE, WIRE MAPPING, TDR, CONTINUITY |
| CLEANING CAPABILITIES | WET WIPING, DRY WIPING, CLICK CLEANING: MPO/MTP 8, 12, 24 (12X2), 16, 32 (16X2) CONNECTORS & PORTS, CLEANING STICKS: 1.25 MM LC & MC, 2.5 FC, SC, ST CONNECTORS |
| CRIMPING CAPABILITIES | ELECTRICAL: INSULATED BUTT CONNECTORS, TELEPHONE SPADE LUGS, OPEN BARREL CONNECTORS, AND NON-INSULATED LUGS/TERMINALS. NETWORK: RJ11, RJ12, AND RJ45 PASS-THROUGH, SHIELDED AND UNSHIELDED CONNECTORS ON CAT3, CAT5, CAT5E, CAT6, CAT6A, CAT7 CABLES |
| CUTTING CAPABILITIES | FLUSH CUT: LIVE WIRE (UP TO 1000V) & HIGH STRENGTH WIRE, BOLTS, NAILS |
| DRIVER CAPABILITIES | LIVE CIRCUITS (UP TO 1000V): PHILLIPS: #1 X 3", CABINET SLOTTED: 5/16" X 7" |
| ELECTRICAL TESTING CAPABILITIES | DC/AC CURRENT, DC/AC VOLTAGE, RESISTANCE, CAPACITANCE, TEMPERATURE, CONTINUITY/DIODE, UP TO 2500V & 999.9A |
| FIBER TESTING CAPABILITIES | OPTICAL INSERTION LOSS: 1310/1550 NM, OPTICAL POWER PERFORMANCE: 800-1650 NM, -50 TO +26 DBM, VISUAL FAULT LOCATION: 2 MW |
| ILLUMINATING CAPABILITIES | 250-1500 LM, 4-8 HRS |
| INSPECTION CAPABILITIES | 1.25 MM LC (PC/UPC) & 2.5 MM FC/SC/ST (PC/UPC) CONNECTORS |
| PULLING & GRIPPING CAPABILITIES | LC, SC-SIMPLEX, SC-DUPLEX, MU, MT-RJ CONNECTORS, LIVE WIRES (UP TO 1000V) & GENERAL MATERIALS |
| TERMINATING CAPABILITIES | RING, FORK, SPADE & BUTT-SPLICE, 10-22 AWG (2.6-0.64 MM) |
| UPC # | 810215350568 |
What's in the Box
What’s in the Box
- Qty 1 - Data Center Operations & Maintenance Kit
| KIT INCLUDES | |
|---|---|

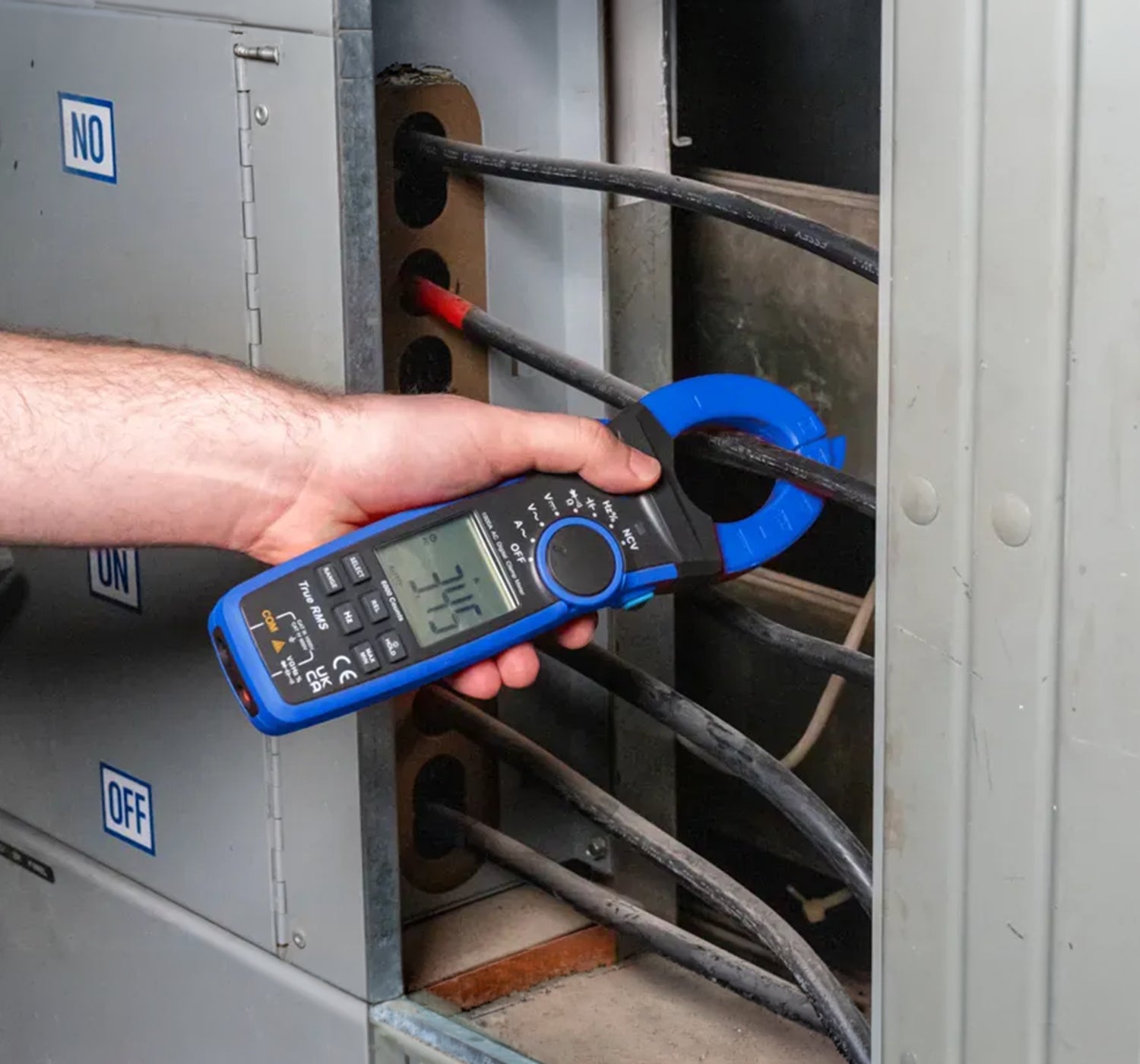

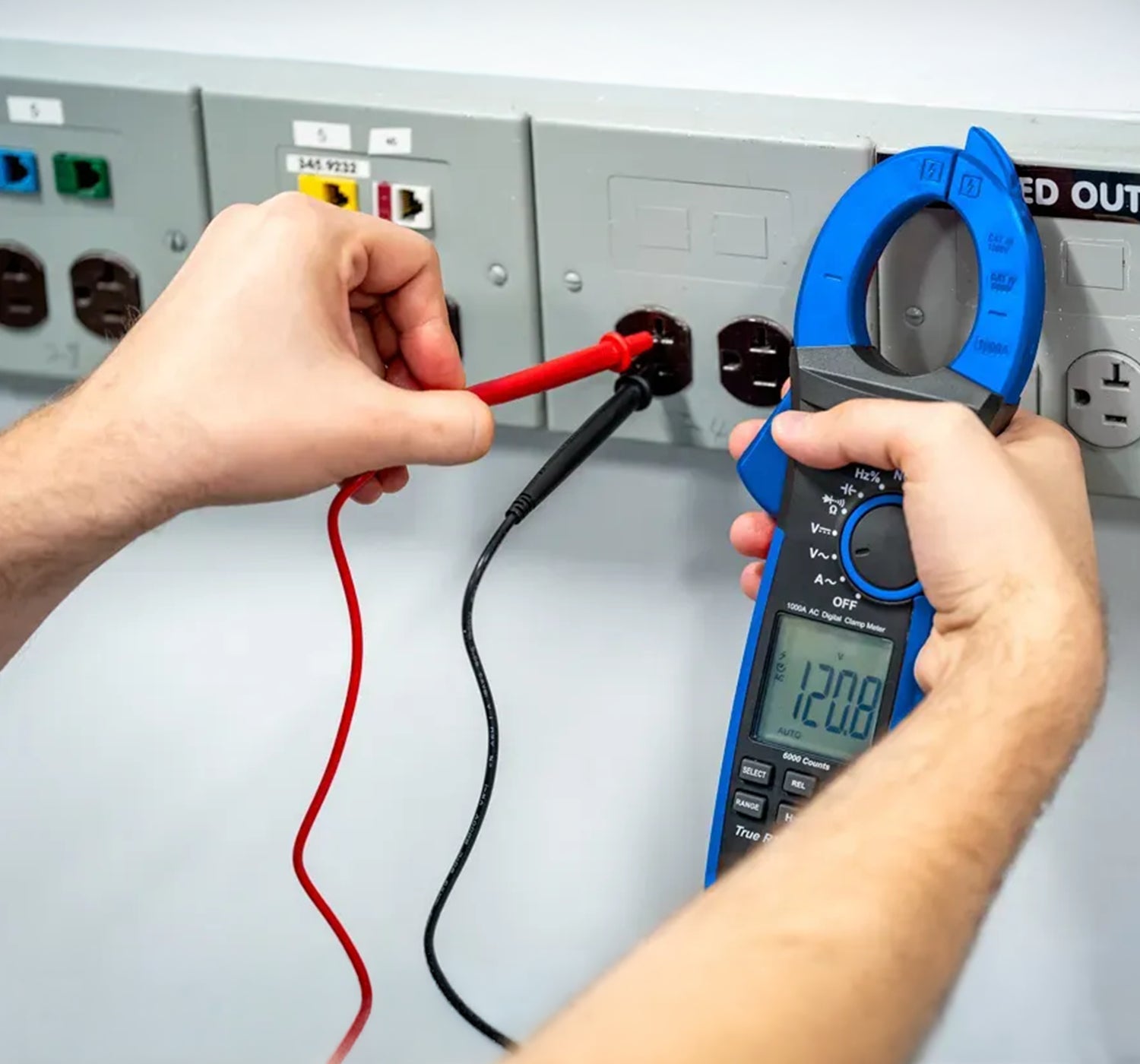

| ACM-1000 | 1000A DIGITAL CLAMP METER |
| BP-100 | TECHNICIAN’S TOOL BAG BACKPACK |
| CLS-125/50 | CLEANING STICKS FOR FIBER OPTIC CONNECTORS, 1.25 MM, BOX OF 50 |
| CLS-250/50 | CLEANING STICKS FOR FIBER OPTIC CONNECTORS, 2.50 MM, BOX OF 50 |
| CWP-125 | POINTED COTTON SWABS, PACK OF 125 |
| DW-90 | DRY WIPES FOR CLEANING FIBER, 90 PER PACKAGE |
| FCCS-120 | SLIM FIBER CONNECTOR CLEANER, MPO 12 CORE |
| FCCS-160 | SLIM FIBER CONNECTOR CLEANER, MPO 16 CORE |

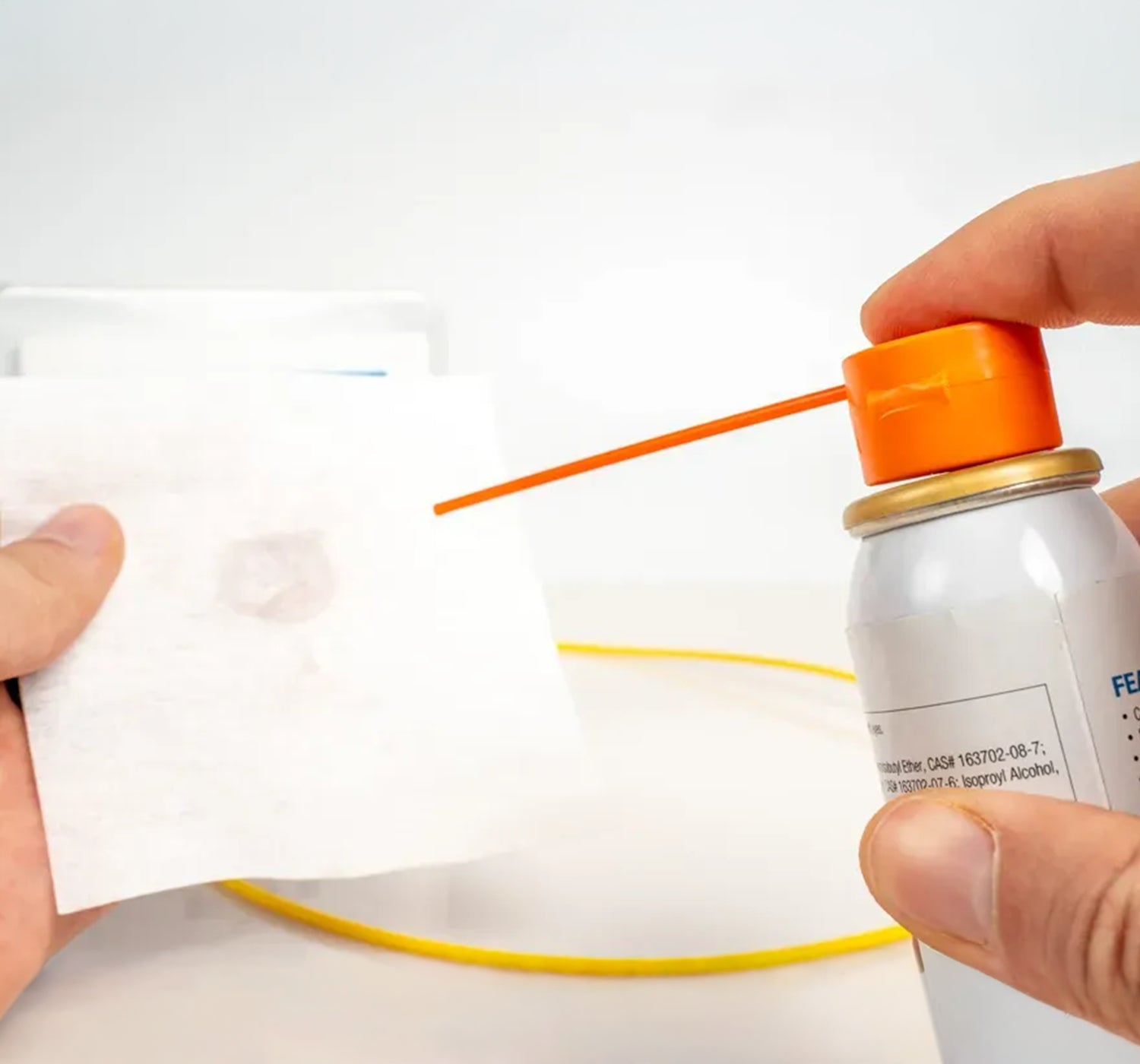

| FCF-4 | ALL IN ONE FIBER OPTIC CLEANING FLUID |
| FCT-100 | FIBER CONNECTOR TOOL FOR LC, SC CONNECTORS |
| FLS-50S | MINI OPTICAL LIGHT SOURCE WITH FC/LC/SC ADAPTERS FOR PC/UPC CONNECTORS |
| FPM-50S | MINI OPTICAL POWER METER, (-50 TO +26DBM) |
| FW-50 | FIBER WIPES, WET (PACK OF 50) |

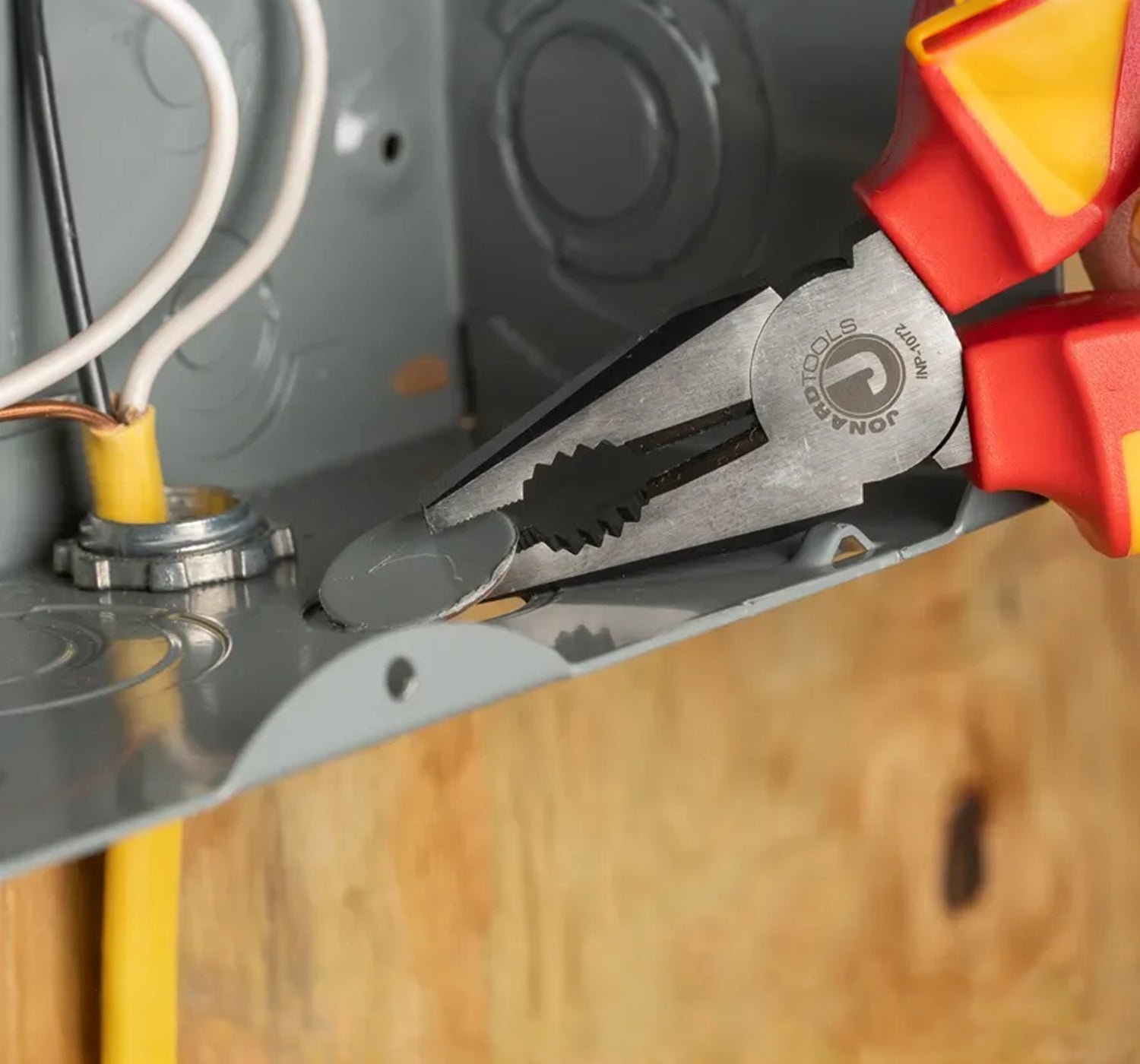

| INP-1072 | INSULATED LINEMAN’S COMBO PLIERS, 7 1/2” |
| INS-180 | PHILLIPS INSULATED SCREWDRIVER, #1 X 3” |
| INS-8175 | CABINET SLOTTED INSULATED SCREWDRIVER, 5/16” X 7” |
| SOL-F1 | SOLIS™ RECHARGEABLE TACTICAL FLASHLIGHT |

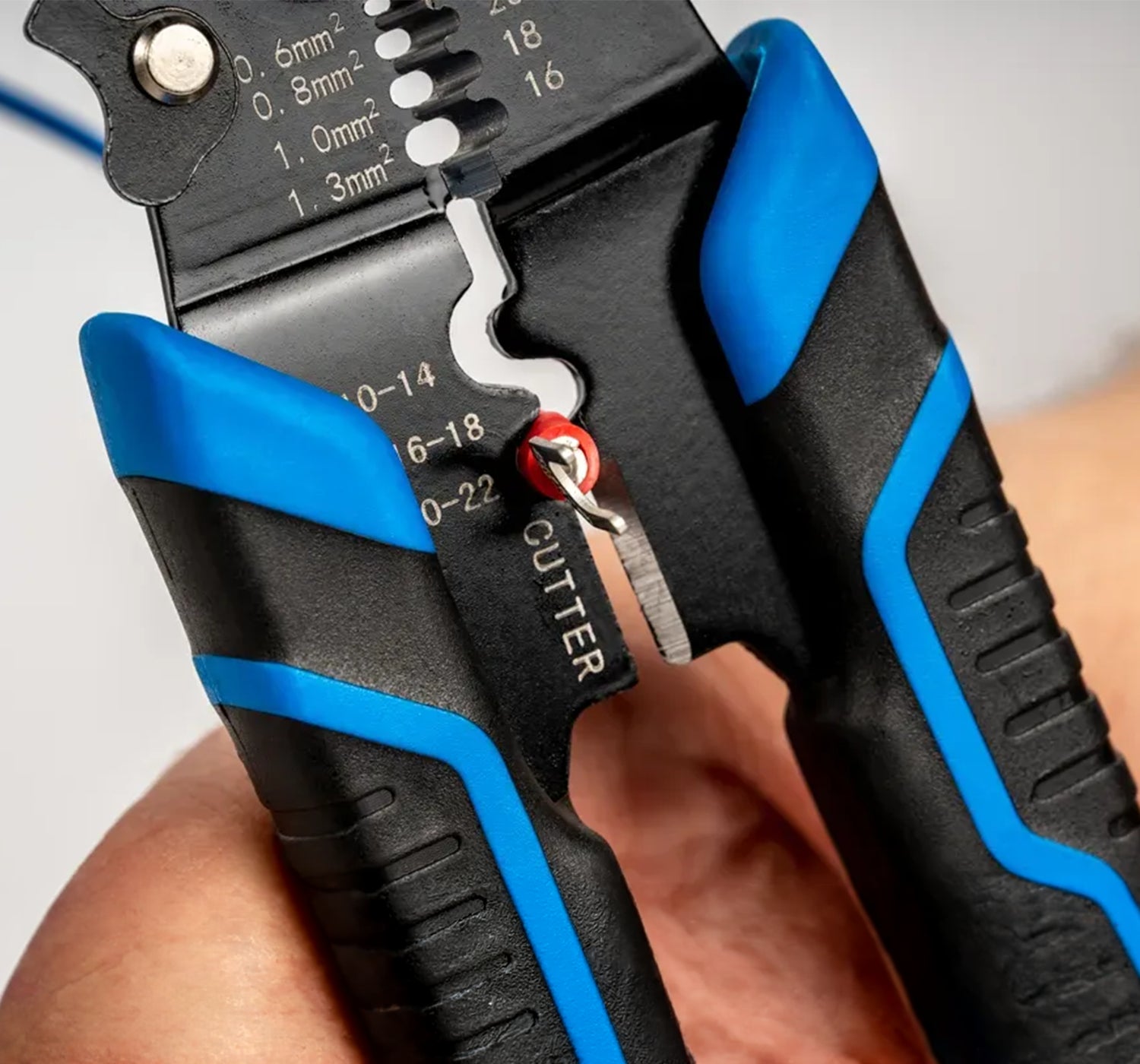

| TCC-1416 | ELECTRIC LUG AND TERMINAL CRIMPER |
| TCK-178 | SOLDERLESS RING AND LUG TERMINAL KIT, 178 PCS |
| TDR-100 | NETWORK CABLE TESTER AND TDR |
| UC-4511 | RJ45 & RJ11/12 MODULAR PASS-THROUGH CRIMPER W/ TAIL CRIMPING SLOTS |
| WFM-100 | WIRELESS FIBER INSPECTION MICROSCOPE W/ UPC ADAPTERS |
| WFM-MPOU | WIRELESS FIBER MICROSCOPE W/ MPO/UPC ADAPTER |
