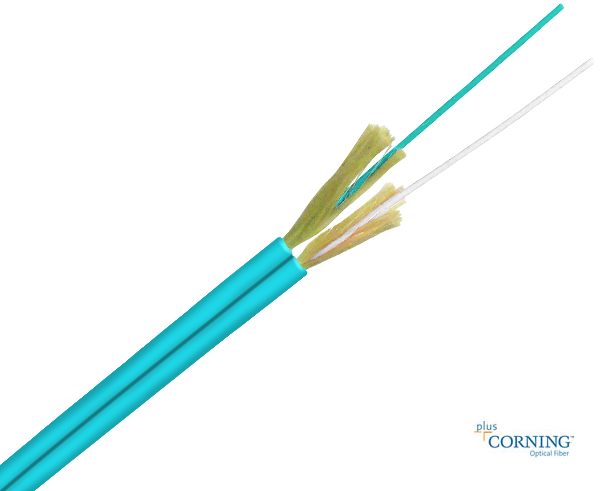

Duplex Plenum Fiber Optic Cable, Zip Cord, Multimode 10 Gig OM4, Corning Fiber, Indoor

SKU: FB29-3803-MD3P
Vendor
Primus Cable
Regular price
$0.00
Sale price
$0.00
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
3.0 mm
2.0 mm
1.8 mm
1.6 mm

Description

Note: To request a quote email us or give us a call.
If you would like to inquire about our custom fiber cable options such as longer lengths, custom cut lengths, terminated ends, or pulleyes please call or email us.

(We do not offer credits or returns for this item.)

Description

Duplex CMP OM4 MultiMode Fiber Cable

Plenum CMP Duplex OM4 MultiMode 50/125 Fiber Cable is composed of a tight buffer, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.

These plenum duplex fiber cables are available in 12 TIA standard colors or special order colors. The fiber cable is UL Listed OFNP for use in ducts, plenums and air-handling spaces. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers. Custom print can also be accommodated.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

Features

  • 3mm, 2mm, 1.8mm & 1.6mm OD sizes to meet all patch cord applications.
  • Consistent 3.5lbs - 5lbs pull force for easy stripability.

Applications

  • Patch cord production.
  • Data centers.
  • Indoor point to point connections.

Specifications

Temperature Range

  • Storage Temperature: -40ºC to +70ºC
  • Operating Temperature: -20ºC to +70ºC

Cable Characteristics

  • Fiber Count: 2
  • Outer Jacket Material: Flame Retardant PVC
  • Outer Jacket Color: Aqua
  • Strength Member: Aramid Yarn
  • Tight Buffer Material: Flame Retardant PVC
  • Tight Buffer Color: White & Aqua

Mechanical Characteristics

  • Nominal Outer Diameter
    • 3.0 mm x 5.95
    • 2.0 mm x 3.95
    • 1.8 mm x 3.65
    • 1.6 mm x 3.25
  • Minimum Bend Radius (mm) (Bend Insensitive MM) 7.5

Optical Characteristics

  • Core Size: 50 um
  • Wavelength: (850/1300) nm
  • Max. Attenuation: (3.5/1.5) dB/km
  • Bandwidth (EMB) (High Performance): 4700 MHz @ 850nm
  • Link Length (10GB/s): 550 Meters

Additional Information

Additional Information

Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.

Description

Duplex CMP OM4 MultiMode Fiber Cable

Plenum CMP Duplex OM4 MultiMode 50/125 Fiber Cable is composed of a tight buffer, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.

These plenum duplex fiber cables are available in 12 TIA standard colors or special order colors. The fiber cable is UL Listed OFNP for use in ducts, plenums and air-handling spaces. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers. Custom print can also be accommodated.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

Features

  • 3mm, 2mm, 1.8mm & 1.6mm OD sizes to meet all patch cord applications.
  • Consistent 3.5lbs - 5lbs pull force for easy stripability.

Applications

  • Patch cord production.
  • Data centers.
  • Indoor point to point connections.

Specifications

Temperature Range

  • Storage Temperature: -40ºC to +70ºC
  • Operating Temperature: -20ºC to +70ºC

Cable Characteristics

  • Fiber Count: 2
  • Outer Jacket Material: Flame Retardant PVC
  • Outer Jacket Color: Aqua
  • Strength Member: Aramid Yarn
  • Tight Buffer Material: Flame Retardant PVC
  • Tight Buffer Color: White & Aqua

Mechanical Characteristics

  • Nominal Outer Diameter
    • 3.0 mm x 5.95
    • 2.0 mm x 3.95
    • 1.8 mm x 3.65
    • 1.6 mm x 3.25
  • Minimum Bend Radius (mm) (Bend Insensitive MM) 7.5

Optical Characteristics

  • Core Size: 50 um
  • Wavelength: (850/1300) nm
  • Max. Attenuation: (3.5/1.5) dB/km
  • Bandwidth (EMB) (High Performance): 4700 MHz @ 850nm
  • Link Length (10GB/s): 550 Meters

Additional Information

Additional Information

Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.
