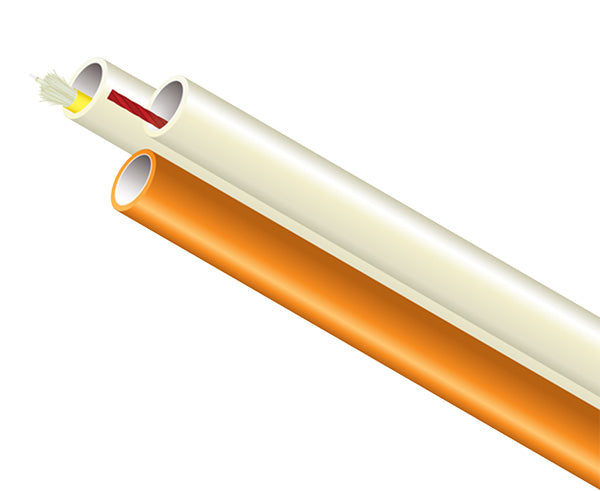

MicroDucts Riser with SILCORE® ULF Lining, from 5mm OD – 27mm OD

SKU: DL-MD-Riser
Vendor
Dura-Line
Regular price
$0.00
Sale price
$0.00
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more

Description

(We do not offer credits or returns for this item.)
To request a quote email us or give us a call.

Description

MicroDucts Riser with SILCORE® ULF Lining, from 5mm OD – 27mm OD

Great for MDU applications, our Riser MicroDucts are made from fire retardant materials which are fully approved by the American ETL (Electrical Testing Laboratories) for Riser applications per UL-2024 and UL-94-V2. Pre-installed pull string is available for quick fiber installations. A SILICORE® lining makes cable installation even easier without using wet lubes inside buildings.

For more information on the different types of Dura-Line products we carry, view our Dura-Line page here .

Installations

Applications

Features

Features

  • Riser-rated MicroDucts available from 5mm OD – 27mm OD
  • Ideal for MDU and FTTX Installations
  • Available empty or with either a single fiber cord (cable) or pull string pre-installed
  • ETL Listed to UL/CSA Specifications
  • The fiber cable is pre-installed in the MicroDuct for one-step installation of MicroDuct and fiber cable
  • Dura-Line stocks single mode fiber (SM) cordage for fast deliveries (Riser and Plenum)
  • Footage/Meter Markings
  • Internal Ribs
  • Silicore®

Specifications

Specifications

Available Sizes

MicroDuct size (OD/ID mm)

  • 5/3.5
  • 8.5/6
  • 10/8
  • 12/10
  • 12.7/10
  • 14/10
  • 16/12
  • 16/13
  • 18/14
  • 18/15
  • 22/16
  • 27/20

Standard Colors

  • Dull Yellow
  • Orange

Options

  • Pre-Installed Fiber
  • Pre-Installed String
