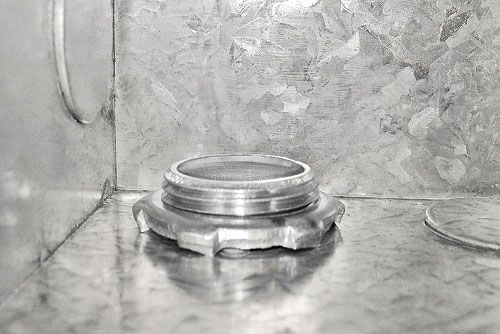

Rigid Conduit Locknut
Heavy-duty locknuts are used in dry locations to secure threaded conduits or connectors to electrical junction boxes or enclosures. Heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Heavy duty locknuts are zinc electroplated for excellent corrosion protection in damp locations. Serrated teeth on the locknut bite into the box and enclosure to prevent vibratory loosening of the connection.
Features
Features
- Heavy Gauge Steel
- Available in sizes from 3/8" to 6"
Specifications
Specifications
| Part Number | Trade Size | Dim A | Dim B |
|---|---|---|---|
| NPNB-RLN-38 | 3/8" | 1.000 | .130 |
| NPNB-RLN-50 | 1/2" | 1.125 | .130 |
| NPNB-RLN-75 | 3/4" | 1.353 | .140 |
| NPNB-RLN-100 | 1" | 1.730 | .60 |
| NPNB-RLN-125 | 1-1/4" | 2.080 | .187 |
| NPNB-RLN-150 | 1-1/2" | 2.376 | .187 |
| NPNB-RLN-200 | 2" | 2.890 | .250 |
| NPNB-RLN-250 | 2-1/2" | 3.470 | .250 |
| NPNB-RLN-300 | 3" | 4.165 | .250 |
| NPNB-RLN-350 | 3-1/2" | 4.700 | .275 |
| NPNB-RLN-400 | 4" | 5.320 | .275 |
| NPNB-RLN-500 | 5" | 6.487 | .450 |
| NPNB-RLN-600 | 6" | 7.830 | .450 |
What's In The Box
What’s In The Box
- Qty 1 - Rigid Conduit Locknut
