Description

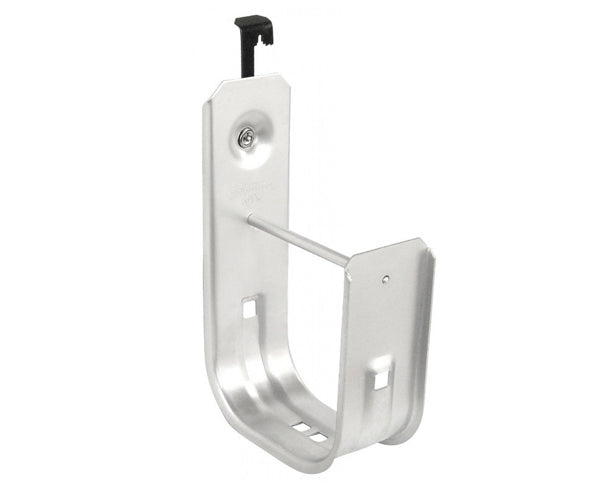

3/4"-4" Batwing J-Hook with Retainer Bar

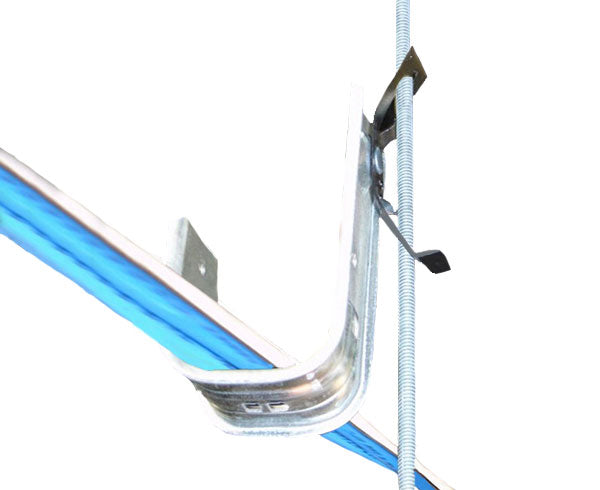

Our Batwing J-Hooks support up to 20 lbs and are perfect for hanging applications. This J-Hook is versatile and adheres to traditional J-Hook styling. These batwing j-hooks help keep cables suspended and safely out of the way. Can be used with CAT5E-8 Ethernet cable as well as fiber optic cable.
Product Quality
This J-Hook is versatile and can be attached to a wide variety of structures such as suspended ceilings, below raised floors including a garage and shop too. The continuous wide base radius design supports the natural bends and curves of cable.
Durability & Strength
This product is light-weight, ideal as a cost-effective alternative to cable trays or ladder runway racks.
Features
Features
- Material: Zinc Plated Steel
- All Steel Construction
- Super Smooth Edges Eliminates Cable Snags
- UL, CUL, RoHS Compliant
Applications
- Telcom/Voice
- Network/Data
- Broadband, Satellite
- CCTV
- Fiber
- Flexible Conduit
Specifications
Specifications
| Material | G60 Galvinized Steel, 1.2mm thick |
| Finish | Zinc Plated |
| Special Features | Includes Snap In Cable Retainer clip; wing clip for #12 to 1/4 in. Rod |
| Compliance and Standards | UL, CUL, RoHS Compliant Meets and Exceeds TIA/EIA Requirements for Structured Cabling Systems |
Max Amount Of Cables That Will Fit Each J-Hook
| Part Number | CAT 5e (4-pair) | CAT 6 (4-pair) | ScTP/FTP (4-pair) | STP (4-pair) | Load Rating |
| JH1-6679-12W | 16 | 10 | 7 | 5 | 30 lbs |
| JH1-6680-21W | 50 | 32 | 25 | 17 | 30 lbs |
| JH1-6682-32W | 80 | 50 | 40 | 25 | 30 lbs |
| JH1-6684-64W | 200 | 185 | 18 | 120 | 30 lbs |
Additional Information
Wire & Cable Management Accessories
Having an effective cable management system in place keeps your networking cable organized, which helps make system maintenance easier. We carry a wide assortment of cable management solutions. Our wire management solutions help organize and protect your network cabling by keeping it off the floor.
To learn more about our Wire & Cable Management please visit our overview page. These J-Hooks can be combined with a wide array of products such as:
- Flat Cable Lacing Panel
- Flanged Lacing Bar
- 2 Post Free Standing Relay Racks
- 4 Post Server Rack, Open Frame Rack Systems
What's in the box?
What's in the box?
- Qty 1 - Batwing J-Hook with Retainer Bar
