10/100 Mbps WDM Media Converter, TL-FC111B-20

by TP-Link
SKU: TL-FC111B-20
Various lead times may apply to this product. Please contact us for more details.
FCC Logo CE Logo RoHS Compliant
This unit requires a SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.


What This Product Does

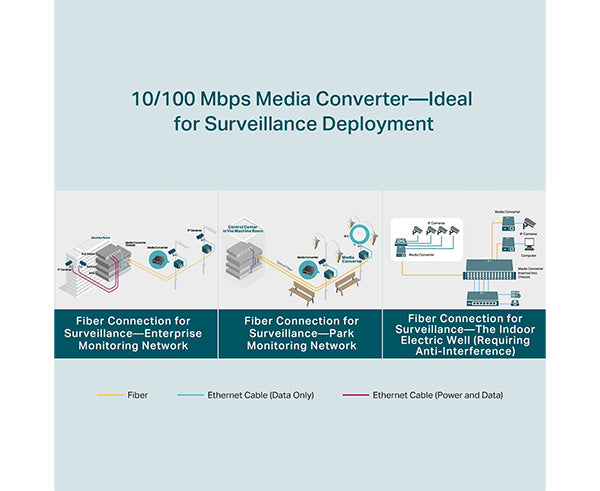

TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

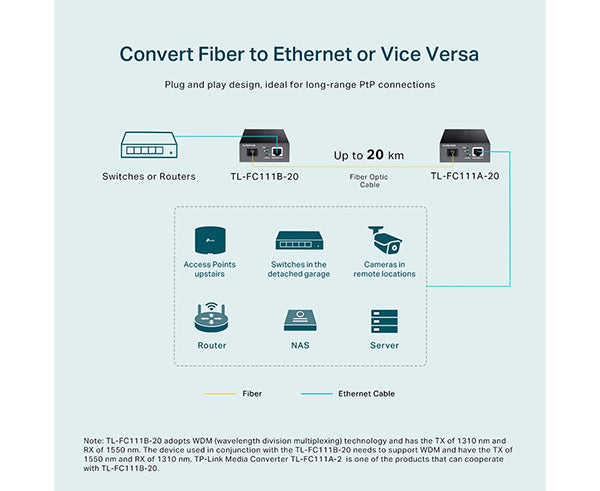

TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.


  • Complies with 802.3u 10/100Base-TX, 100Base-FX Standards
  • Auto-negotiation of Half-duplex/Full-duplex Transfer Mode
  • 9/125 μm SMF (Single Mode Fiber)

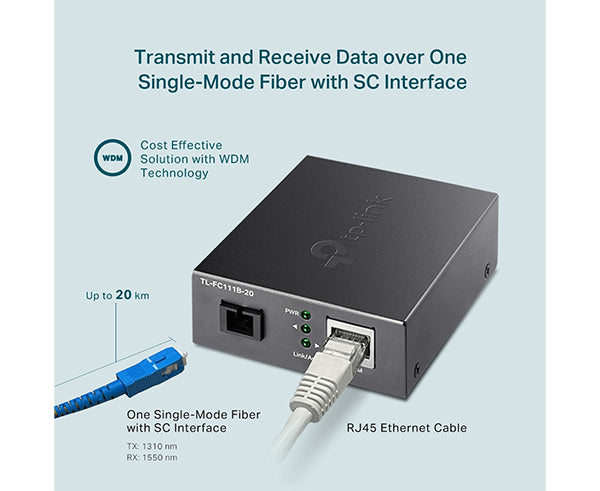

  • Bidirectional WDM Communication on a Single Fiber
  • Ranges up to 20km (12.4 Miles)
  • Work with TL-FC111B-20 as a Pair


Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity 10% to 90% RH Non-condensing
Storage Humidity 5% to 90% RH Non-condensing

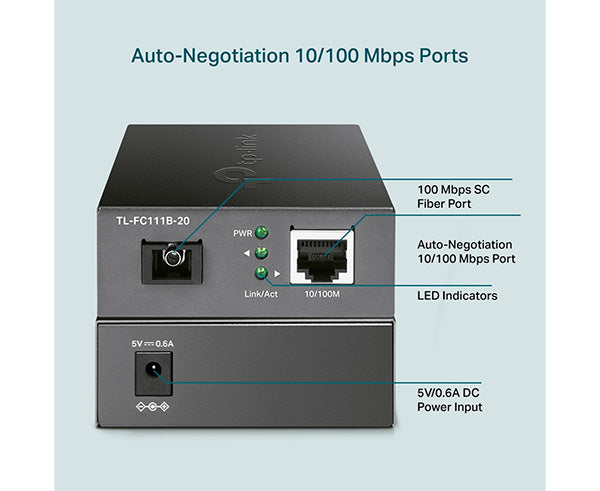

Interface • 1× 100 Mbps SC Fiber Port
• 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or Above (≤100 m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act

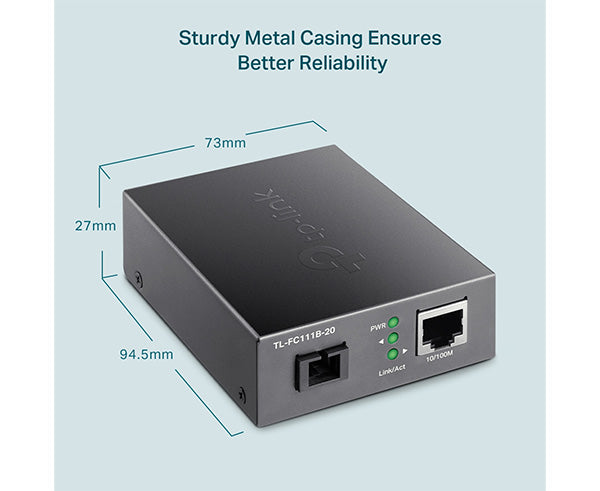

Dimensions ( W x D x H ) 94.5*73*27 mm
Wave Length 1310 nm TX, 1550 nm RX
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function Auto-negotiation of Half-duplex / Full-duplex Transfer Mode
Full-duplex Flow Control (IEEE 802.3x)
Half-duplex Flow Control (Backpressure)
Extends Fiber Distance up to 20km (12.4 miles)
Ports 1x 100M Single SC/UPC Port
1x 10/100M RJ45 port (Auto MDI/MDIX)
WDM TX 1310 nm
WDM RX 1550 nm
Network Media 10BASE-T UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Network Media 100BASE-T UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Network Media 100BASE-FX Single Mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External Power Adapter: 5 V/0.6 A
Safety & Emission FCC, CE, RoHS
Fiber Type 9/125 μm Single Mode Fber (≤20 km)

Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%~90% Non-condensing

What's in the Box

What's in the Box

  • Media Converter TL-FC111B-20
  • Power Adapter
  • Installation Guide
