10-Port Gigabit Desktop Switch with 8-Port PoE+

by TP-Link
$129.99
SKU: TL-SG1210MP
Various lead times may apply to this product. Please contact us for more details.
PoE+ Capable

Description

10-Port Gigabit Desktop Switch with 8-Port PoE+

What This Product Does

TP-Link TL-SG1210MP is an unmanaged switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Switch Network Overview

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Keep Your Network Smooth and Safe with Abundant Functions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2. Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

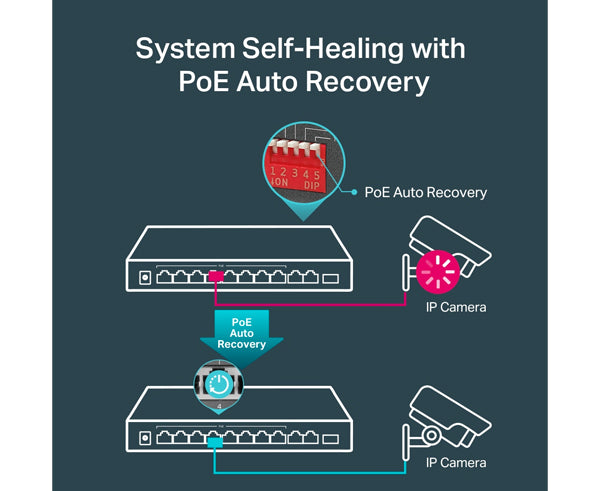

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Durable Metal Casing

The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.

Intelligent Power Management

When total power consumption exceeds 123 W, intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Features

Features

  • 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
  • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

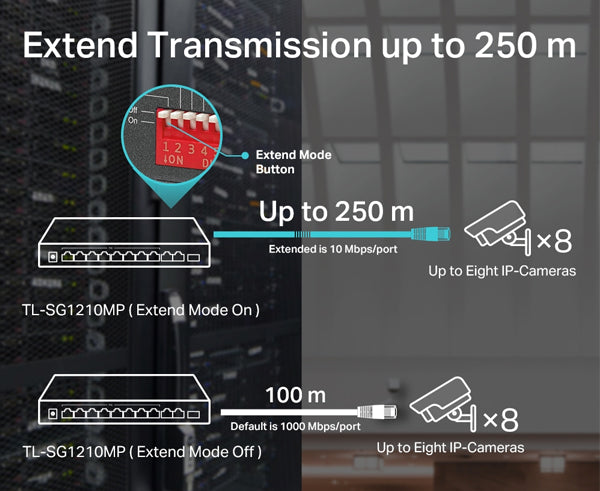

  • Up to 250 m data and power transmission range under Extend Mode**

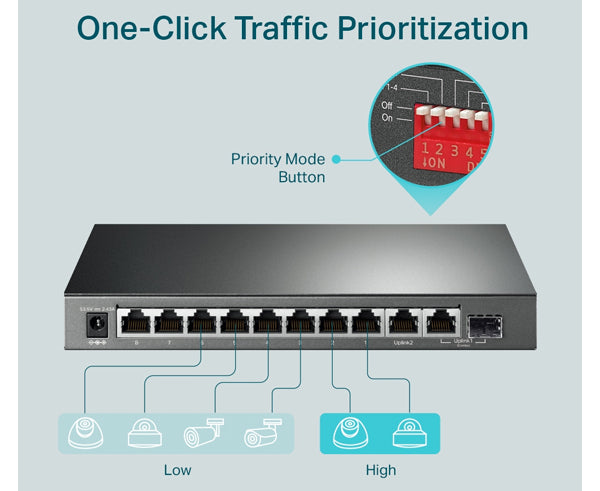

  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

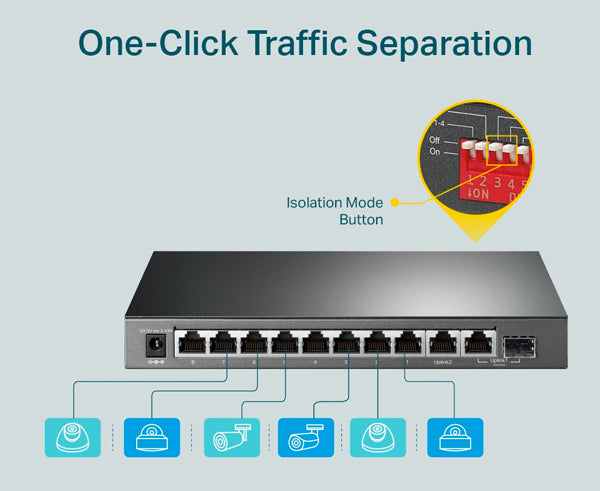

  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
  • Plug and play with no configuration required
  • Fanless design reduces power consumption and works silently in its location

Specifications




HARDWARE FEATURES
Interface

9 x 10/100/1000 Mbps RJ45 Ports

1 x 1000 Mbps Combo SFP/RJ45 Port

Auto Negotiation

Auto MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

10BASE-T: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless
External Power Supply  External Power Adapter (Output:53.5VDC / 2.43A)
PoE Ports (RJ45)

Standard: 802.3af/at compliant

PoE Ports: Ports 1-8

Power Supply: 123 W

Dimensions (W x D x H) 8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
Max Power Consumption

7.93 W (220V / 50Hz with no PD connected)

141.40 BTU/h (220V / 50 Hz with no PD connected

Max Heat Dissipation

27.04 BTU/h (220V / 50Hz with no PD connected)

482.17 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20Gbps
GENERAL
Certification FCC, CE, RoHS
Package Contents  TL-SG1210MP
Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's in the box?

  • Qty 1 - TL-SG1210MP
  • Qty 1 - Power Adapter
  • Qty 1 - Installation Guide
