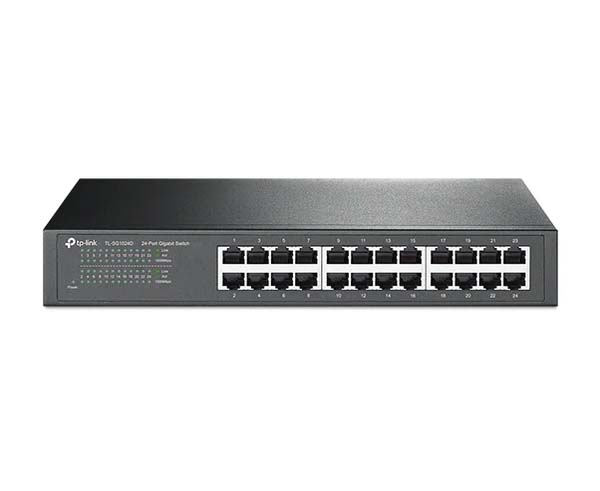

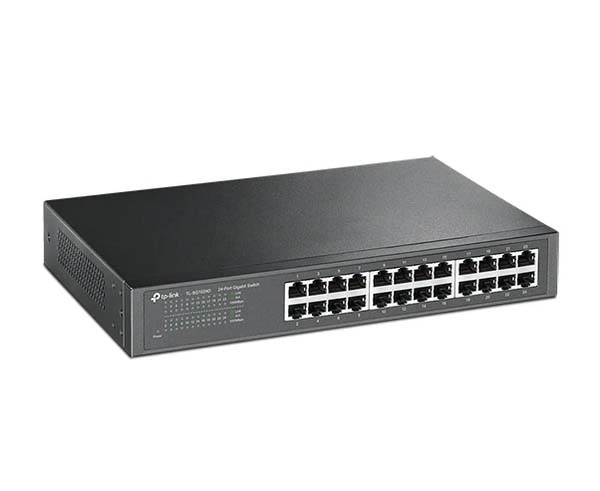

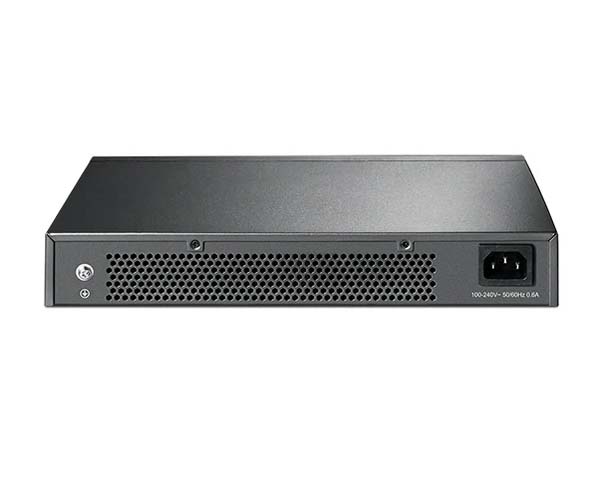

24-Port Gigabit Ethernet Switch Desktop/Rackmount

by TP-Link
$99.99
SKU: TL-SG1024D
Various lead times may apply to this product. Please contact us for more details.

FCC Logo   ROHS Logo

Description

24-Port Gigabit Ethernet Switch Desktop/Rackmount

What This Product Does

Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Switch Network Overview

Power Saver

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution. The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features

Features

  • 24 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design

Specifications

Specifications




HARDWARE FEATURES
Interface 24 x 10/100/1000 Mbps RJ45 Ports (Auto-Negotiaiton/Auto MDI/MDIX)
Fan Quantity  Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions (W x D x H) 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 13.62W(220V/50Hz)
Max Heat Dissipation 46.44BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7 Mpps
MAC Address Table  8K
Jumbo Frame 10KB
Green Technology Yes
Transfer Method  Store-and-Forward
GENERAL
Certification FCC, RoHS
Package Contents

T1600G-18TS

Power Cord

Installation Guide

Resource CD

Rackmount Kit

Rubber Feet

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's In The Box

What's In The Box

  • Qty 1 - 24-Port Gigabit Desktop/Rackmount Switch
  • Qty 1 - Power Cord
  • Qty 1 - Installation Guide
  • Qty 1 - Rackmount Kits
  • Qty 1 - Rubber Feet
