This product is intended to be purchased by installers only
Description
Description

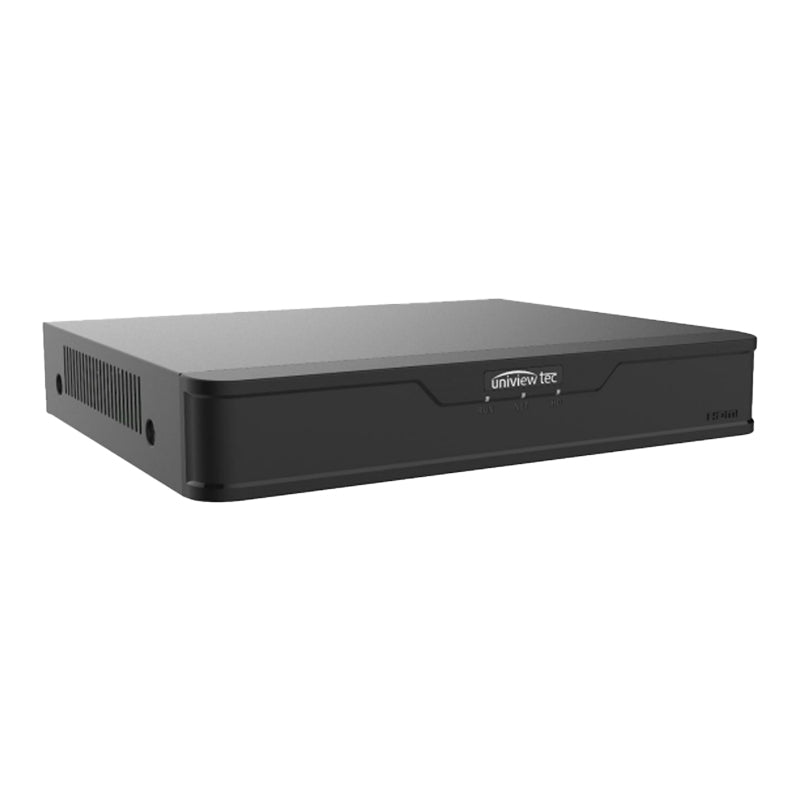

8ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR Network Recorder
This 8ch Analog x 4ch IP is a Hybrid DVR series is a professional quality Digital Video Recorder with BNC Inputs plus available IP channels, plus 8mp Resolution. The units are also NDAA Compliant so you can install them in Federal Facilities. Its advanced features include Long Range Video Transmission and multiple format support. The DVR has SATA Bays for Storage.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 8 analog x 4 IP Cameras, Hybrid network recorder with H.265 Compression
- Simultaneously supports 8 Analog (AHD, TVI, CVI and CVBS) and 4 IP Video Inputs with adaptive access (or up to 6 IP channels if no analog cameras are connected)
- Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
- Supports recording of up to 8MP Resolution for HD Analog and IP Cameras
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- HDMI display resolution up to 8MP
- Supports Audio I/O and PTZ Camera control
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 1 SATA HDD up to 10TB each
- ONVIF Profile S Compliant for IP Cameras
- Long transmission distance over RG-6 coax cable up to 2000ft (600m)
- Supported by Uniview Tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications
Specifications
| VIDEO & AUDIO INPUTS | |
|---|---|
| Analog Video Input |
8-ch, BNC |
| IP Video Input |
4-ch (only IP up to 12ch); each channel up to 8MP |
| Supported Analog Camera Type |
Support AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| Audio Input |
1-ch, RCA |
| Audio Compression |
G.711U |
| VIDEO & AUDIO OUTPUTS | |
| CVBS Output |
1-ch, BNC |
| VGA Output |
1920×1080p/60Hz |
| HDMI Output |
3840×2160/30Hz |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
8 |
| Live view display |
HDMI/VGA: 1/4/6/8/9/16 |
| Two-way Audio |
1-ch, RCA |
| SNAPSHOT | |
| FTP/Schedule/Event Snapshot |
8-ch snapshot, up to 704×576 resolution |
| NETWORK | |
| Incoming Bandwidth |
40Mbps (Up to 56Mbps after all analog channel conversion) |
| Outgoing Bandwidth |
64Mbps |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Supported Browsers |
IE (IE10/11) for Windows |
| ENCODING | |
| Recording Resolution |
8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / CIF |
| Recording Frame Rate |
- 8MP Lite: Main stream 8fps, Sub stream D1 @ 8fps |
| Audio Sample Rate |
8KHz, 16 bit per channel |
| Audio Bit Rate |
64Kbps per channel |
| DECODING | |
| Capability (fps) |
Analog: 8×8MP Lite@8, 8×5MP Lite@12, 8×4MP Lite@15, 8×1080P@15 |
| HARD DISK DRIVES | |
| SATA |
1 SATA Interface |
| Capacity |
Up to 10TB for each HDD |
| SMART ALARM | |
| VCA Detection |
Ultra Motion Detection (UMD) for analog: 8-ch |
| VCA Search |
Behavior Search |
| GENERAL ALARM | |
| General Alarm |
Motion detection |
| Alert Alarm |
IP Conflict, Network Disconnected |
| EXTERNAL INTERFACE | |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panel: 2×USB2.0 |
| Serial Interface |
1×RS485 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| GENERAL | |
| Power Supply |
12V DC; Power Consumption: ≤10W (without HDD) |
| Working Environment |
-10°C~+55°C (+14°F~+131°F), Humidity ≤90% RH (non-condensing) |
| Dimensions (W×D×H) |
260×226×47mm (10.2×8.9×1.8") |
| Weight (without HDD) |
1.1Kg (2.42lb) |
| CERTIFICATIONS | |
| Certifications |
FCC, CE (UL - Power Supply only) |
Additional Information
Additional Information
If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
What's in the Box
What's in the Box
- Qty 1 – Hybrid NVR unit (8 analog + 4 IP channels, 8MP recording, 260 × 226 × 47mm)
- Qty 1 – 12V DC power adapter (51V 1.25A, ≤10W consumption without HDD)
- Qty 1 – Mounting screw kit (for rack/desktop installation)
- Qty 1 – Rack-mount ears (for server rack compatibility)
- Qty 1 – Quick installation guide
