Description

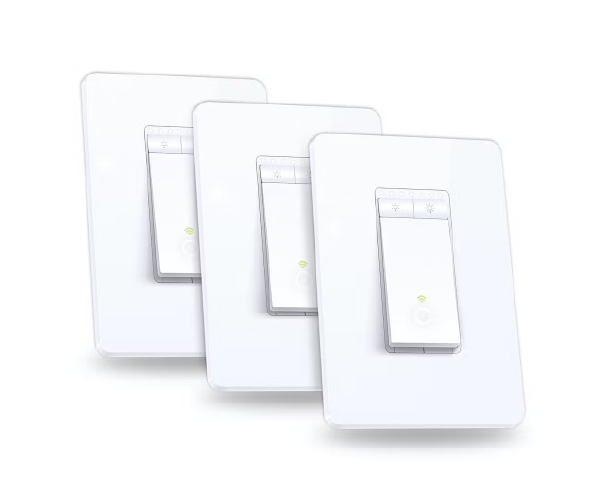

Kasa Smart Wi-Fi Light Switch, Dimmer
Make your traditional light switch smarter with the Kasa Smart Wi-Fi Light Switch. Control your room's brightness and set the ambiance for any mood or activity using the Kasa Smart app. Dim your lighting and set the the perfect atmosphere for a romantic night with that special someone. From dinner parties to late-night study sessions, this switch lets you set the right atmosphere for any activity. Use simple voice commands to control all of your Kasa Smart devices with any Alexa or Google Assistant voice assistant. Have your voice assistant dim your living room lights from the comfort of your sofa for the perfect movie night.
Features
- Customized Lighting
- Smartphone Grouping
- Gentle Off
- Control From Anywhere
- Voice Control
- No Hub Required
- Easy Installation
Specifications
| NETWORK | ||
|---|---|---|
| Standards and Protocols | Secured Wi-Fi Network | |
| Protocol | IEEE 802.11b/g/n |
|
| Wireless Type | 2.4GHz, 1T1R | |
| System Requirements | Android 5.0 or higher, iOS 10 or higher | |
| GENERAL |
||
|---|---|---|
| Certification | RoHS, FCC, IC, UL |
|
| Environment | Indoor use only |
|
| Dimension (H x W x D) |
with panel 5.06 x 3.33 x 1.74 in. (128.65*84.65*44.21mm) without panel 4.13 x 1.71 x 1.74 in. (105*43.5*44.21mm) |
|
| Material | PC |
|
| Buttons |

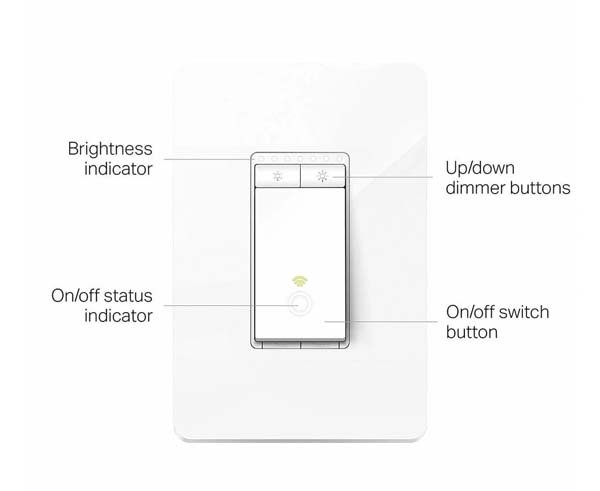

On/Off Switch Button Brightness Increase Button Brightness Decrease Button Restart Button Reset Button |
|
| Weight |
0.33 lb (net weight) 0.15 kg (net weight) |
|
| Packaging Dimensions | 4.65 x 2.56 x 6.73 in (118.11 x 65.02 x 170.94 mm) | |
| WORKING STATUS |
||
|---|---|---|
| Input Voltage | 100-120VAC 60Hz |
|
| Maximum Load | 150W LED/300W Incandescent/150W CFL | |
| Dimming Type: Leading Edge Dimming/ Triac Phase Cut | It’s also suggested to contact the bulb’s Support to check the supported dimming type of the bulb. | |
Installation Information
Quick Tips: How to Link your Kasa Account to Google Assistant
Quick Tips: How to Link your Kasa Account to Amazon Alexa
How to Setup Smart Actions in the TP-Link Kasa App
Quick Tips - How to Create A schedule in the Kasa App
Quick Tips - How to Change your Time zone in the Kasa App
Quick Tips - How to Create a Group in the Kasa App
HS220 installation video
What's in the Box
- (1) Smart Light Switch, Dimmer
- (1) Wall Plate
- (2) Wire Nuts
- (1) Quick Start Guide
