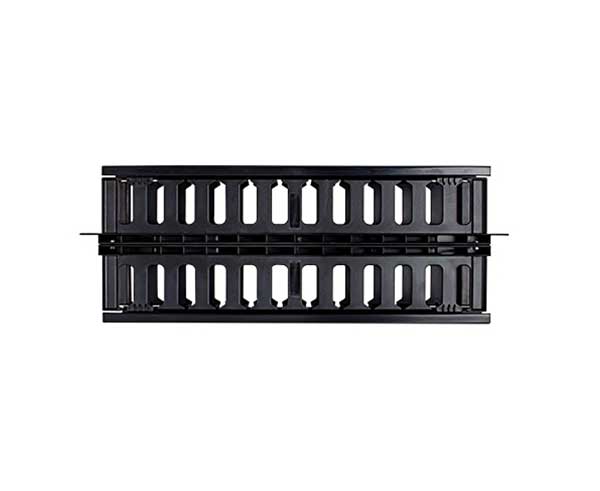

Horizontal Finger Duct Cable Management, 1U, 2U
Our plastic 2U Double Finger Duct Cable Management features a duct in both the front and back, making it a great solution for high-density installations. Each 2U duct includes a removable cover that also swings open 45°, and the center panel includes two pass-through openings for added flexibility in cable routing.
Features
Features
- 19” EIA 310D compliant
- Mounting hardware included
Specifications
Specifications
| 2U Horizontal Double Finger Duct Cable Management | |
|---|---|
| Dimension (HxWxD) | 3.48” x 19” x 6.93” |
| Removable Front & Rear Cover | Yes |
| Rack Unit Qty | 2 |
| Cable Capacity (CAT5e) | 245 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6) | 157 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6A) | 84 (Based on 50% Fill Rate) |
| Pass Through Dimension (Per) | 3" x 1.5" |
| No. of Cable Pass-Through Openings | 2 |
| Mounting Hardware | Included |
| Qty Per Package | 1 (Sold Individually) |
What's in the box
What's in the box
- Qty 1 - 2U Horizontal Double Finger Duct Cable Management
