NEMA Mechanical Connectors, Aluminum, Dual Rated, Panelboard Lugs

NEMA Mechanical Connectors, Aluminum, Dual Rated, Panelboard Lugs

by Primus Cable
$13.10
SKU: NPNB-250L2
Connector
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

Mechanical Connectors Aluminum, Dual Rated, Panelboard Lugs, L Series

Primus Cables’ Mechanical Connectors are Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance.

Features

Features

  • Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness.
  • Made of 6061T-6 aluminum alloy.
  • Electro-tin plated for low contact resistance.
  • For use with copper or aluminum conductors.
  • All hole spacing is NEMA standard of 1.750”.

          Specifications

          Specifications

          • cULus Listed Wire Connector.
          • UL486A/B Listed. AL9CU
          • Temperature Rating: 90 °C.
          • Voltage: 600V max. (2000V ma. per UL486B).
           Part# Wire Range MTG. Bolt Size (in.) MTG. Hole Dia. (in.) Length (in.) Height (in.) Width (in.)

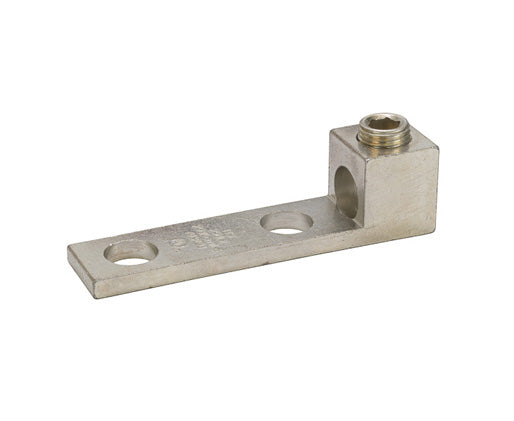

          NPNB-250L2 250 MCM-6 AWG 1/2 0.560 4.310 0.880 1.380

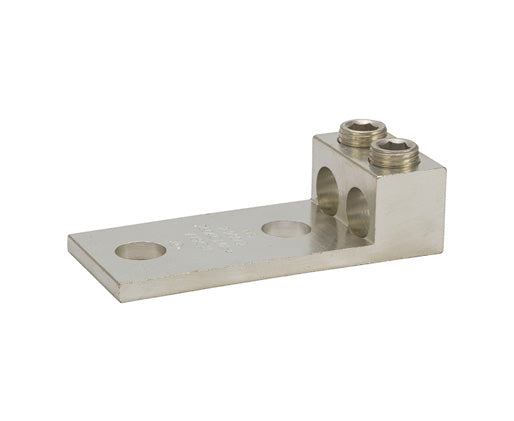

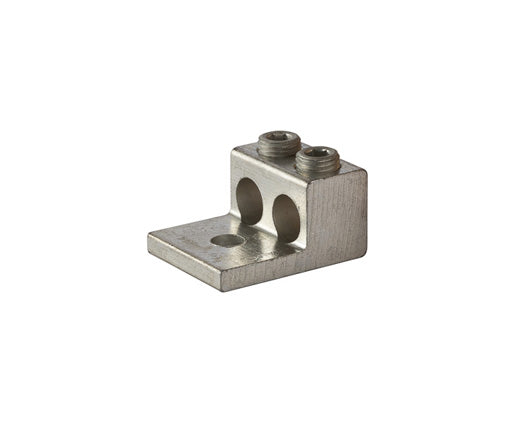

          NPNB-2-250L2 (2) 250 MCM-6 AWG 1/2 0.560 3.880 1.690 1.020

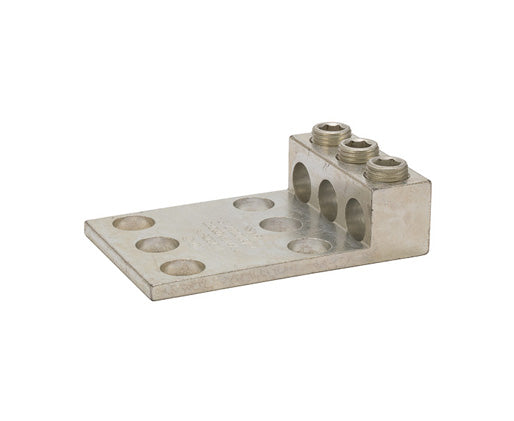

          NPNB-3-250L2/L4 (3) 250 MCM-6 AWG 1/2 0.560 3.880 2.500 1.020

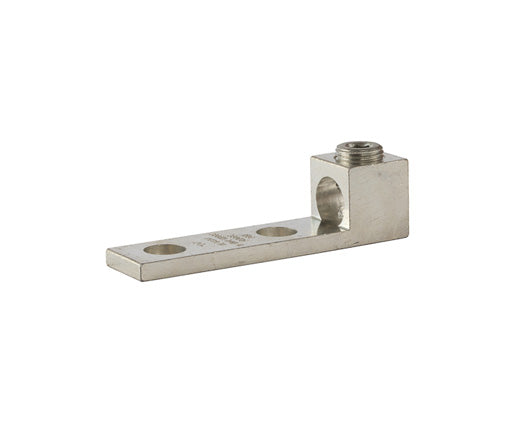

          NPNB-350L2 350 MCM-6 AWG 1/2 0.560 4.310 0.990 1.380
          NPNB-2-350L2 (2) 350 MCM-6 AWG 1/2 0.560 4.250 1.920 1.130

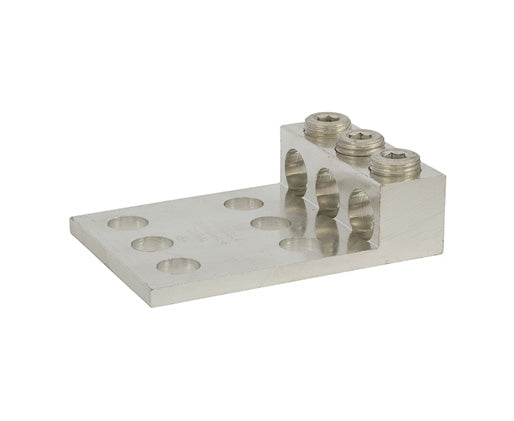

          NPNB-3-350L2/L4 (3) 350 MCM- 6 AWG 1/2 0.560 4.250 2.920 1.130

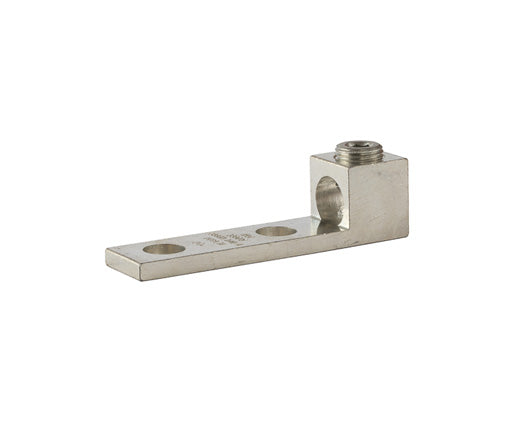

          NPNB-600L2 600 MCM -2 AWG 1/2 0.560 4.650 1.380 1.510

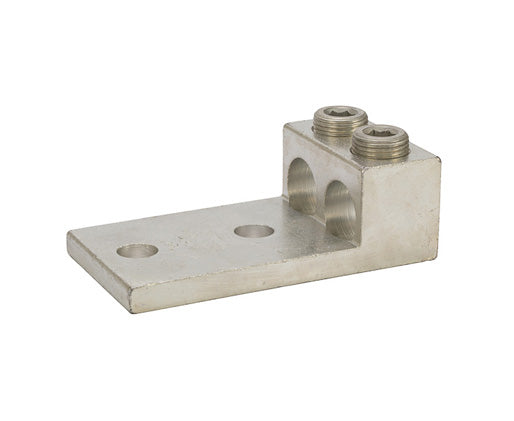

          NPNB-2-600L2 (2) 600 MCM-2 AWG 1/2 0.560 4.650 2.406 1.510

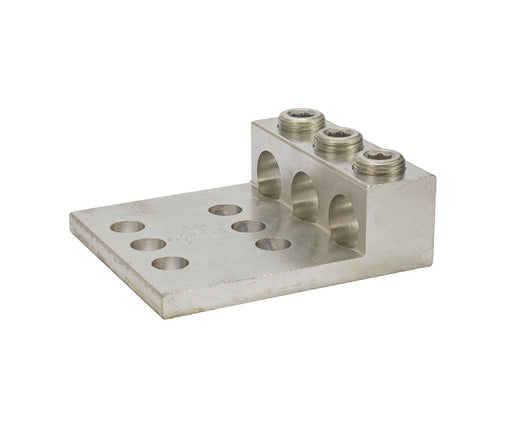

          NPNB-3-600L2/L4 (3) 600 MCM-2 AWG 1/2 0.560 4.650
          		 3.930 1.510

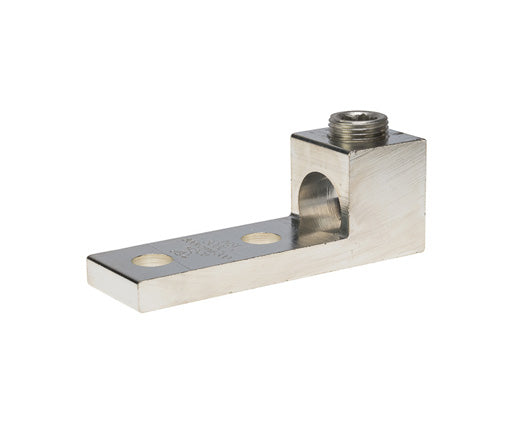

          NPNB-800L2 800-350 MCM 1/2 0.560 4.750 1.440 1.690

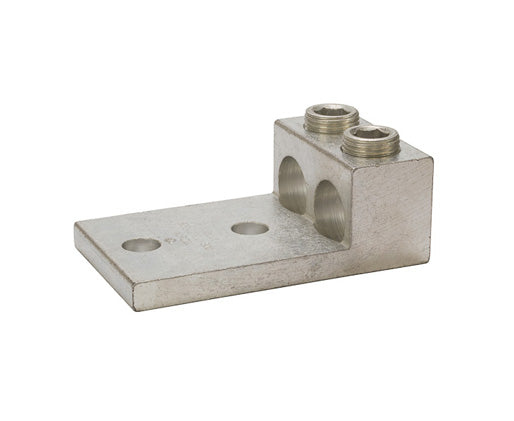

          NPNB-2-800L2 (2) 800-350 MCM 1/2 0.560 4.750 2.750 1.690

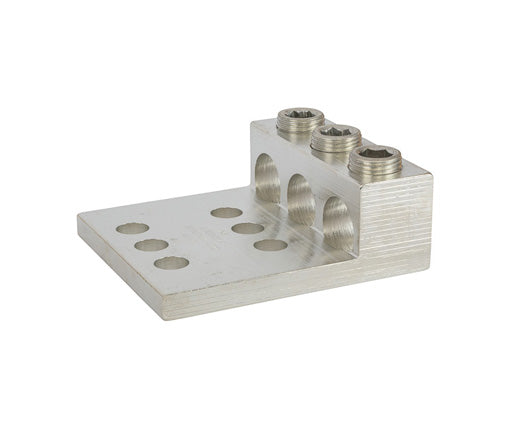

          NPNB-3-800L2/L4 (3) 800-350 MCM 1/2 0.560 4.750
          		 4.060 1.690

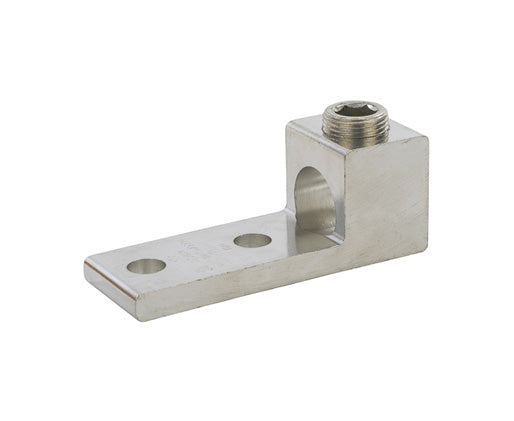

          NPNB-1000L2 1000-500 MCM 1/2 0.560 4.940 1.690 1.880

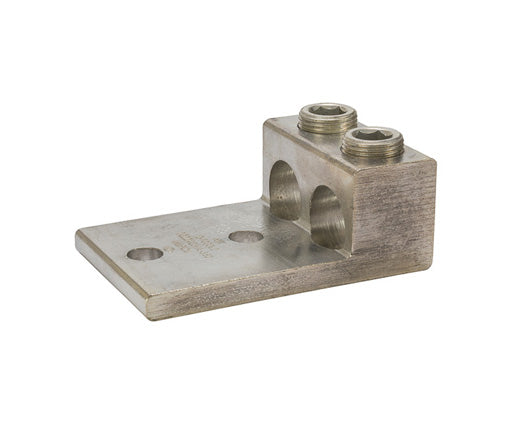

          NPNB-2-1000L2 (2) 1000-500 MCM 1/2 0.560 4.940 3.190 1.880

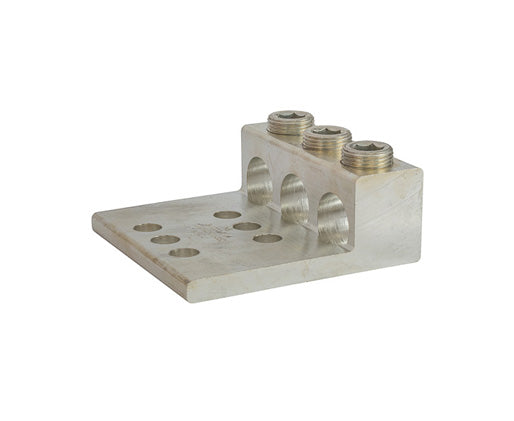

          NPNB-3-1000L2/L4 (3) 1000-500 MCM 1/2 0.560 4.940 4.690 1.880

              What's In The Box

              What's In The Box

              • Qty 1 - Mechanical Connector
