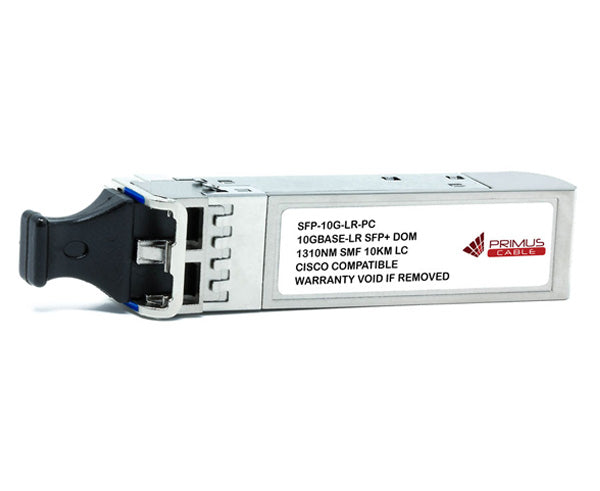

10G SFP Module, 1310 nm, Up to 10km Range
This SFP+ module is specifically designed to be fully compatible and functional with its brand's own designated switching devices. It adheres to the 10G Ethernet IEEE 802.3ae standard and complies with the SFF-8431 SFP Multi-Source Agreement (MSA). Designed for use with multimode fiber, it operates at a nominal wavelength of 1310 nm, delivering reliable data transmission over distances of up to 10 km.
Features
Features
- Up to 10.7 GBd bi-directional data links
- Hot-pluggable SFP+ footprint
- 1310nm VCSEL laser transmitter
- Duplex LC connector
- Built-in digital diagnostic function
- Up to 10km over single-mode fiber
- Single power supply 3.3v
- Operating temperature ranges from 0°C to 70°C
Specification
Specification
| SKU | SFP-10G-LR-PC(CISCO) SFP-10G-LR-GT(DELL) |
SFP-10G-LR-X-PC |
| Compatible OEM | Cisco Compatible | Cisco Compatible |
| Form Factor | SFP+ | SFP+ |
| Max Data Rate | 10GbE | 10GbE |
| Wavelength | 1310nm | 1310nm |
| Max Cable Distance | 10KM over SMF | 10KM over SMF |
| Connector | 1 X LC Duplex | 1 X LC Duplex |
| DOM Support | YES | YES |
| Power Supply | 3.3v | 3.3v |
| Operational Temperature Range | C-Temp 0°C to +70°C |
E-Temp -10°C to +85°C |
What's in the Box
What's in the Box
- Qty 1 – 10GBASE-LR SFP+ Transceiver Module
