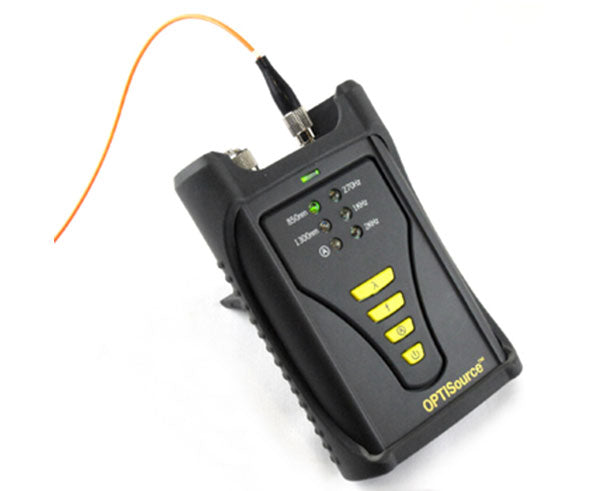

OPTISource Fiber Multimode Light Source for 850/1300 Wavelengths

$478.99
SKU: TL4-4076
Various lead times may apply to this product. Please contact us for more details.

Patch cable not included.


Description

Fiber Optic Light Source for Wavelengths 850/1300 with FC/ST/SC Adapters

The OPTISource is a high performance stabilized light source that is widely used in fiber network installation and maintenance. The new version of OPTISource can provide the single wavelength output according to specific requirements including 850/1300nm wavelength for multimode. With replaceable FC, SC, ST connectors, this power meter brings you an economic and efficient solution for the fiber optic network tasks.

Features

  • There are three output modes for each wavelength: CW/MOD/AUTO-IDENTIFY
  • CW and 270Hz, 1kHz, 2kHz modulated signals
  • Auto-identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use as a complete set)
  • LED indicators
  • Auto power off for power saving

Specifications

Wavelengths: 850nm, 1300nm

Spectral Width: ≤5nm

Output power: ≥13dBm@850/1300nm

Stability: ±0.25dB/8hr@850/1300nm

Connector Type: With replaceable FC, SC, ST connectors

Auto Power Off: 30 min. without key pressed

Frequency: 270Hz, 1kHz, 2kHz

Battery: 4 x AAA

Dimensions: 125 x 78 x 31mm

Weight: 145g

What's In The Box

  • Qty 1 - OPTISource Fiber Multimode Light Source
