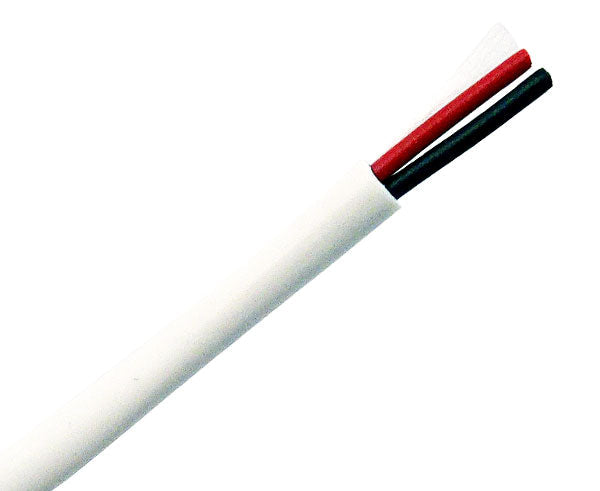

Plenum Security Alarm Cable 20/2 (7 Strand) CMP Rated Unshielded 1000'
The 20/2 Plenum Security Alarm Cable features two 20-gauge stranded copper conductors, suitable for security systems, intercoms, power-limited controls, and sound/audio systems. Constructed with 7-strand bare copper cable, it is unshielded with a white CMP-rated plenum jacket, manufactured in the USA. Available in increments of 1,000 ft.
Features
Features
- 20 AWG 2 conductors
- 7 stranded bare copper conductors
- Low-smoke PVC insulation
- Unshielded
- Low-smoke white PVC jacket
- Sequential footage marking
- CL3P rated jacket
- ETL listed
- RoHS compliant
- NEC articles
- 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
Residential or commercial applications
- Security systems
- Intercom systems
- Sound/audio systems
- Power-limited controls
Specifications
Specifications
| PHYSICAL CONSTRUCTION | |
|---|---|
| INNER CONDUCTOR | STRANDED BARE COPPER |
| CONDUCTOR SIZE | 20 AWG |
| INSULATION | LOW SMOKE PVC |
| NOMINAL OD | 3.51MM |
| OUTER JACKET DIAMETER | .38MM |
| JACKET | LOW SMOKE PVC |
| JACKET COLOR | WHITE |
| NUMBER OF STRANDS | 7 |
| INNER CONDUCTOR DIAMETER | 1.2MM |
| ELECTRICAL CHARACTERISTICS | |
| TEMPERATURE | 75°C |
| VOLTAGE RATING | 300V |
| CENTER RESISTANCE | 21.20 (Ω/KM) |
Additional Information
Additional Information
| PRODUCT INFORMATION | |
|---|---|
| STANDARDS | UL | ETL | ROHS | CMP | CL3P |
| APPLICATIONS | SECURITY SYSTEMS, INTERCOM SYSTEMS, SOUND AUDIO SYSTEMS, POWER-LIMITED CONTROLS |
| IMPORTANT NOTES | |
| THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO CRN SOLUTIONS AND MAY NOT BE DISCLOSED OR TRANSMITTED TO ANY OTHER PARTIES WITHOUT THE EXPRESS WRITTEN PERMISSION OF CRN SOLUTIONS. THIS INFORMATION IS PROVIDED FOR THE PURPOSES OF QUOTATION ONLY. | |
What's in the Box
What's in the Box
- Qty 1 - Security Alarm Cable - Plenum (CMP) - 20/2 AWG, CL3P, Stranded (7 Strand), Unshielded, White (1000 Ft)
