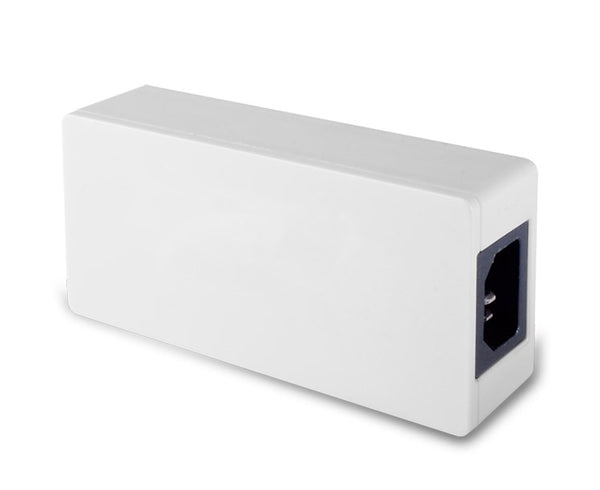

PoE Injector, 2 port, Gigabit

$27.54
SKU: NPNB-102467
Various lead times may apply to this product. Please contact us for more details.
FCC Verified logo CE Verified logo RoHS Compliant UL Listed PoE Capable

Description

Gigabit PoE Injector

Our Gigabit PoE Injector takes separate inputs power and data and converges them into a single output that simultaneously transmits data and power. PoE Injectors give network administrators the ability to pair non-PoE enabled Power Sourcing Equipment (PSE) with PoE Powered Devices (PDs). PoE injectors make non-PoE switches compatible with PoE-ready networking devices such as wireless access points, IP surveillance cameras, and VoIP phones.

Product Quality

This product is compliant with IEEE 802.3af and IEEE802.3at standards and auto-detects PD equipment. This PoE Injector can auto-start and short-circuit to cut off a power supply if it is met with too high of a current or electricity. The interruption will prevent equipment burnout and avoid networking failure caused by an electricity interruption or installing error.

Features

Features

  • Power over Ethernet - Supports IEEE802.3af/at standard, automatically detects and identifies powered devices compliant with the standard and provides power supply, single-port power supply up to 15.4 / 30W.
  • Power Supply Distance Extension - The power supply distance of standard CAT5E and CAT6E cable is up to 100m. It can supply power for the PD remotely, which expands the range of PoE applications, improves wiring efficiency, and better for project installation works.
  • Extreme Speed Transmission - 10/100/1000Mbps self-adaptive RJ45 port, extreme speed and high efficient data transmission, support link-speed forwarding and MDI / MDIX auto-flip function, plug and play.
  • Delivers power and data through one Ethernet cable for easy network extension.
  • Compatible with IEEE 802.3af/at compliant powered devices.
  • PoE Port Delivers power up to 100 meters.
  • Plug and Play, no configuration required.

Specifications

Specifications

Standards and Protocols Indicators Interfaces Input Voltage Output Voltage Power Comsumption PoE Supply Dimensions (W×D×H)
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at Link/Act , PoE Status 1 10/100/1000Mbps RJ45 Port(Data/PoE)
1 10/100/1000Mbps RJ45 Port(Data)
AC:100-240V~ 50/60Hz DC: 51V/0.8A(max) Power Supply: 30W (max) PoE Port supports standard IEEE802.3at/af power (maximum power for PoE port is 30W),
PoE power type is mid-span ( 45+, 78- line pair)
132.3 x 60 x 33 mm (5.2 x 2.3 x 1.3 in)
Environment Certification Power Comsumption PoE Supply Dimensions (W×D×H) Environment Certification
Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
FCC, CE, RoHS, UL Power Supply: 30W (max) PoE Port supports standard IEEE802.3at/af power (maximum power for PoE port is 30W),
PoE power type is mid-span ( 45+, 78- line pair)
132.3 x 60 x 33 mm (5.2 x 2.3 x 1.3 in) Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
FCC, CE, RoHS, UL

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's in the box?

What's in the box?

  • 1 x PoE Adapter
  • 1 x Power Cord
  • 1 x Installation Guide
