*These require a router in order to provide an access point.
Installer Information
How to Remove the Base Plate from a Deco X50-Outdoor
Configuring and Mounting the Deco X50-Outdoor
Description
AX3000 Outdoor Whole Home Mesh WiFi 6 Unit
AX3000 Dual-Band WiFi 6 MeshArmed with WiFi 6 technology, Deco whole home mesh WiFi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

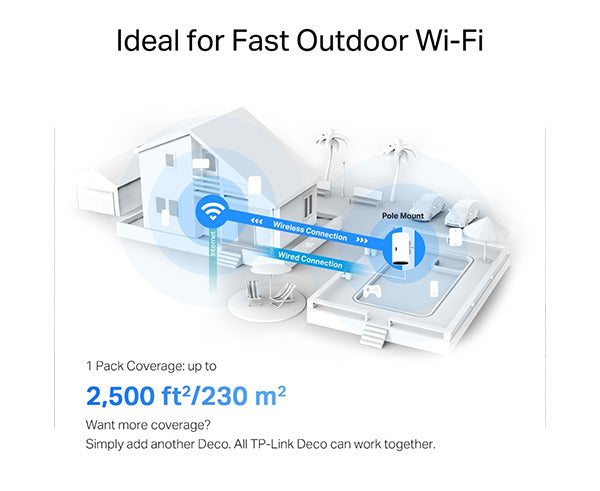

Ideal for Fast Outdoor Wi-FiDeco X50-Outdoor features a weatherproof enclosure and solid operating temperature, enabling strong Wi-Fi signals outside. Flexible installation and power supply make it even easier for outdoor use.
IP65 Weatherproof Enclosure for Outdoor EnvironmentsDuring Ingress Protection testing, a resilient weatherproof enclosure protects Deco X50-Outdoor against the harsh outdoor condition, such as dust ingress, shock, vibration, moisture and so on.

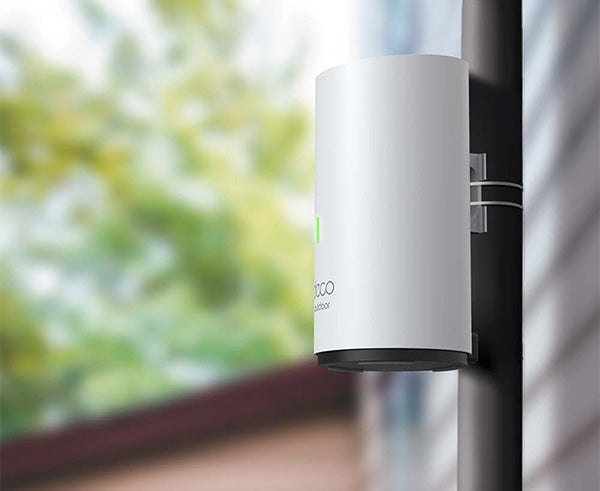

Versatile Mounting SolutionsOur mounting kits are flexible to deploy with pole mount, wall mount and tabletop options，whether inside or outside.
Features
Features
- AX3000 Dual-Band Wi-Fi 6-Enjoy binge-watching your favorite series in 4K with combined speeds of up to 3000 Mbps (574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz )†
- Multiple mount options - Tabletop, wall mount, and pole mount
- Working outdoor -Certified waterproof and dustproof

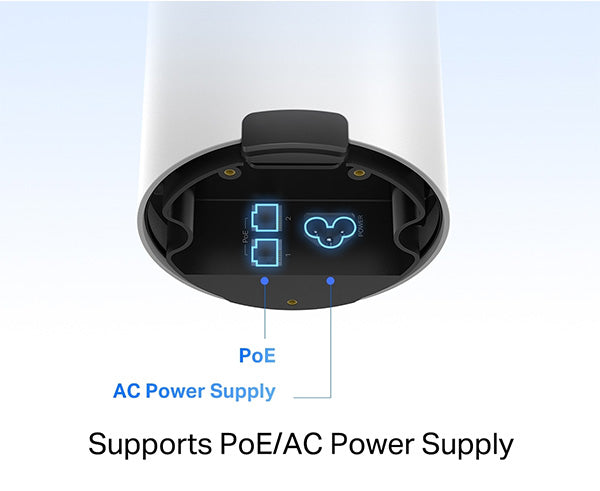

- Powered over Ethernet - Provide both data connection and electric power with a single cable
- Full Gigabit Ethernet - 2 × Gigabit WAN/LAN Ethernet ports provide solid internet access at high speeds.

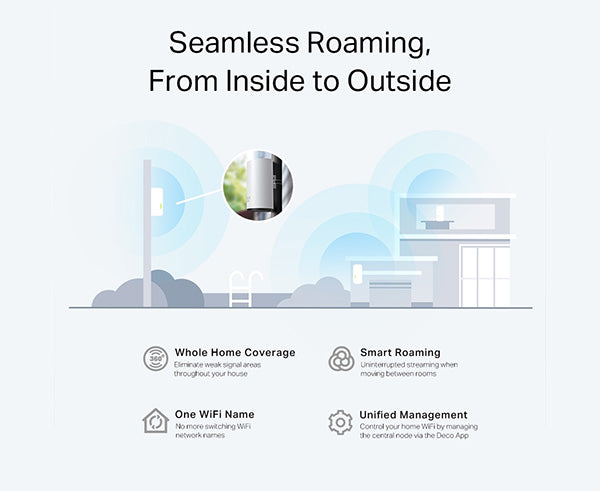

- Work With All Decos - Compatible with every other Deco model to form a Mesh network.
- TP-Link HomeShield - Provides comprehensive network protection, robust parental controls, and real-time
Specifications
Specifications
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 754Mbps (802.11ax) |
| WiFi Range |
1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage |
| WiFi Capacity |
High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 12 Streams More than enough bandwidth for connected devices |
| Working Modes | Router, Access Point |
| HARDWARE | |
|---|---|
| Ethernet Ports | 2 × Gigabit ports per Deco unit (PoE and WAN/LAN auto-sensing) |
| Power |
Power Input IEEE 802.3at PoE or 100-240V~50/60Hz 0.5A AC |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kit | HomeShield Learn More> |
| WAN Types | Dynamic IP Static IP PPPoE L2TP PPTP |
| Quality of Service |
HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz) CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz) |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 4.3 × 4.8 × 8.5 in (110 × 121.3 × 215.5 mm) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | 1 × Deco X50-Outdoor unit 1 × AC Power Cord 1 × RJ45 Ethernet cable Wall/Pole Mounting Kit Installation Guide |
| Environment | Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
