Speaker Wire, Audio Cable, 16/2, 16/4, 14/2, 14/4 Strand OFC CMX Outdoor Direct Burial Cable, 500' White and Black
Description
Speaker Wire/ Audio Cable, 16/2, 16/4, 14/2, 14/4 Oxygen Free CMX, Direct Burial, 500' White & Black
16 AWG Speaker Wire

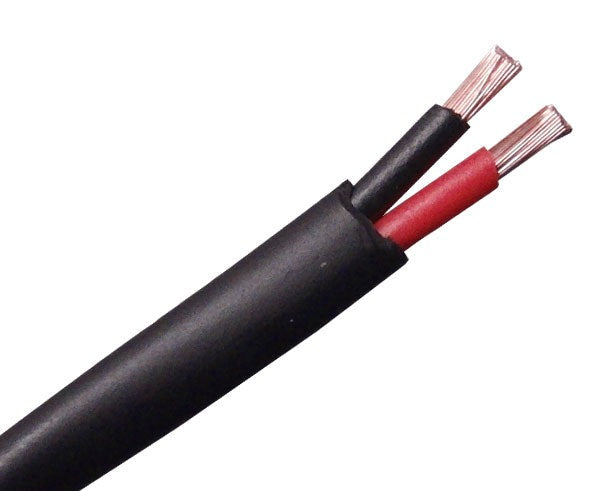

Our 16 gauge speaker wire is composed of two bare copper conductors composed of 65 copper strands. The copper conductors are made of oxygen free pure copper, allowing for improved conductivity. It also has a black PVC outer jacket and meets UL and CL3 standards.
16 gauge speaker wire is ideal for providing high quality audio signal from audio components to a receiver or amplifier. This direct burial speaker wire is ideal for outdoor speakers and low voltage lighting applications. It is supplied on a wooden spool in a length of 500 feet. The PVC jacket is sun resistant and protects the conductors against water damage.
14 AWG Speaker Wire

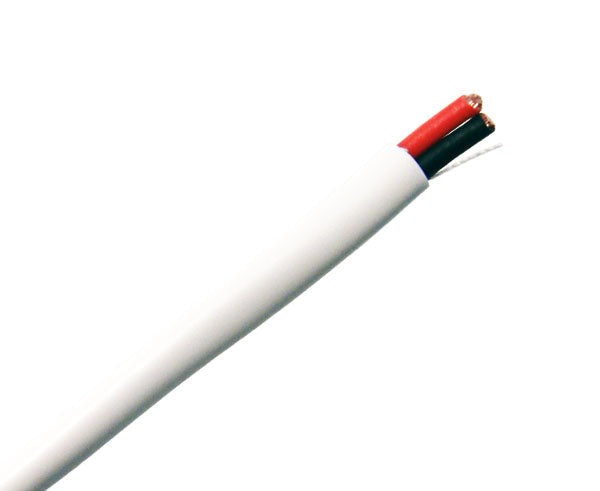

Our 14 gauge speaker wire is composed of two bare copper conductors composed of 105 strands of copper. The copper conductors are made of oxygen free pure copper, offering improved conductivity. With a white PVC outer jacket, this 14 gauge speaker wire is ideal for outdoor speakers, low voltage lighting and many other outdoor or direct burial applications.
Its specially formulated PVC jacket is sun resistant and provides protection against water damage. This speaker wire is also UL listed, and meets CL3 standards. 14 gauge speaker wire provides high quality audio signals from audio components to a receiver or amplifier. It is supplied on a wooden spool of 500 feet.
Features
Features
- Oxygen Free Copper (OFC)
- 16 AWG High Strand Count (65 strands)
- 14 AWG High Strand Count (105 strands)
- Direct Burial Sun Resistant PVC Jacket
- PVC Jacket Protects Against Water Damage
- UL Listed
- CMX Rated
- Meets CL3 Standards
Specifications
| Specifications: | 16 AWG Speaker Wire: | 14 AWG Speaker Wire: |
|---|---|---|
| Conductor | OFC - Oxygen Free Copper | OFC - Oxygen Free Copper |
| Conductor Size | 16 AWG | 14 AWG |
| Conductor Diameter | 65/0.16 | 105/0.16 |
| Insulation | 16 AWG | 14 AWG |
| Average Thickness | 0.31mm | 0.35mm |
| Insulation Diameter (™ 0.05mm) | 2.1mm | 2.6mm |
| Number of Strands | 65 | 105 |
| Insulation Colors | Red, Black, White, & Green | Red, Black, White, & Green |
| Outer Jacket | Direct Burial Sun Resistant PVC, CMX Rated | Direct Burial Sun Resistant PVC, CMX Rated |
| Outer Jacket Color | White & Black | White & Black |
| Average Thickness | 0.6 | 0.6 |
| Outside Diameter (™0.05mm) | 6.5 | 6.5 |
| Capacitance (Pf/m) | 65.2919 | 67.2605 |
| Nominal Velocity of Propagation VP(%) | 66 | 66 |
| Conductor DC Resistance DCR@20™C (ohm/km) | 13.124 | 8.2025 |
| Max. Operating Voltage-UL (Voltage) | 300 V RMS | 300 V RMS |
| Operating Temperature | -20˚C to 60˚C | -20˚C to 60˚C |
| Additional Information | |
|---|---|
| Standards | UL | CMX | CL3 |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
Additional Information
Speaker Wire Accessories
Home theater speakers generally don™t come with speaker wire. This poses the challenge of determining the wire gauge and jacket type to suit the application. Primus Cable supplies premium quality speaker wire with a CMX jacket rating, making it safe for floor to floor wiring. To ensure crystal clear home theater audio, be sure to invest in oxygen free copper speaker wire from Primus Cable.
To learn more about our Speaker Wire Accessories please visit our overview page. Primus Cable Speaker Wire can be combined with a wide array of products such as:
- Audio/Video Keystone Jacks
- RCA Audio Cable
- RCA Splitter
- RCA Component Video Cable
- TV Ceiling and Wall Mounts
What's in the Box?
What's In The Box

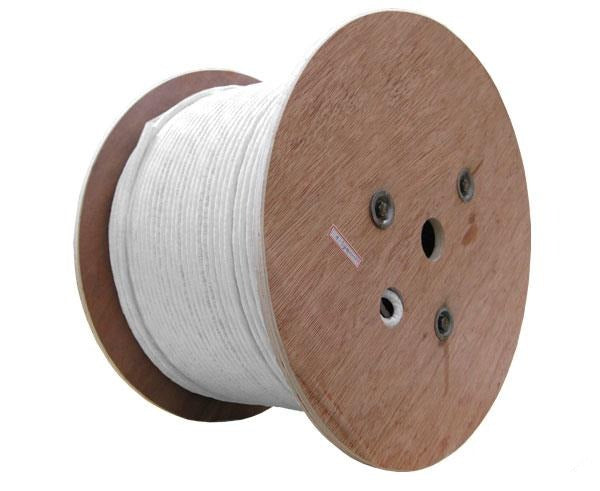

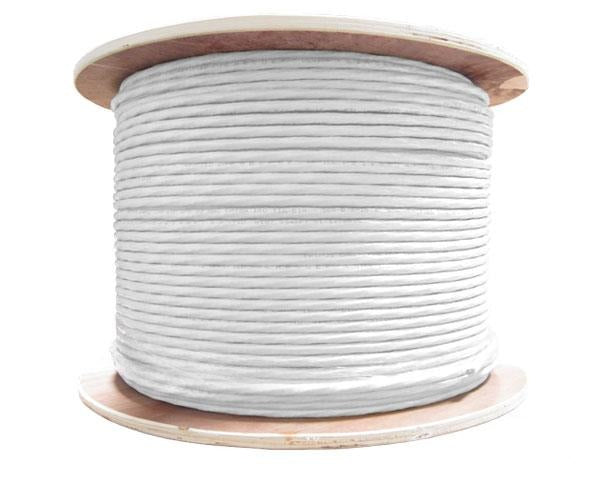

- Qty 1 - OFC Direct Burial Sun Resistant Jacket Audio Cable supplied on a 500 FT Wooden Spool
