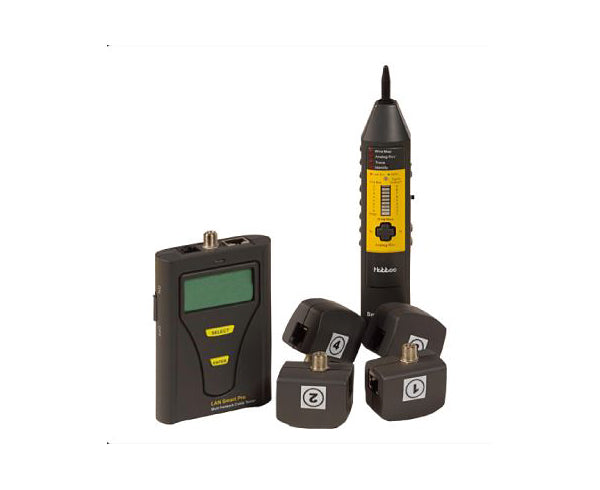

LANsmart Pro Tone Generator with SmartProbe Kit

SKU: TL4-5728
Various lead times may apply to this product. Please contact us for more details.


LANsmart Pro Tone Generator with SmartProbe Kit

The LANsmart Pro tone generator is a highly practical network installation and trouble-shooting tool, which features a single or multi-tone signal, two test leads and a 4-conductor modular cable. The signal emitted by the tone generator can be easily traced by the probe, even when cables are in a bundle or hidden in a mess of punch down blocks or wall plates. The link tester can be used to verify cable continuity, identify wiring faults, determine line polarity and voltage in network and modular telephone line.

The LANsmart Pro tone generator is equipped with a tone amplifier and a LED indicator that detects audible frequency tones for accurate tracing and identification of wires. It's plastic conductive tip prevents shorting of expensive telecom and network equipment.


  • All in–one tester: wire map, twisted mapping, short location, quicktest, cable lengthtest, tone generator and port–finder
  • Wiremap for opened, short, reversed, crossed, split pairs, mis–wire and shield continuity
  • Wiremap results are displayed in pin–to–pin format
  • Indicates the I.D number of the remote identification
  • Short location: locates short position whether short is in the near end or far end of the cable
  • Measures twisted pairs, map, and length of Cat5, Cat5e, Cat6 and Cat7 cables without remotes
  • Measures 2/4/6 pins telephone cable length and faults
  • Self–calibrating function allows for increased measuring accuracy when testing length of non–standard cables
  • Displays measurements in both meter and ft
  • Quick test function: memorizes a cable’s pin out
  • Port–finder function: locates corresponding socket on 10/100M hub/switch
  • With LCD and beeper indicator
  • RJ–45/RJ–11 tort protection from damage due to high voltage from telephone line


Display 128x64 Dot Martrix LCD

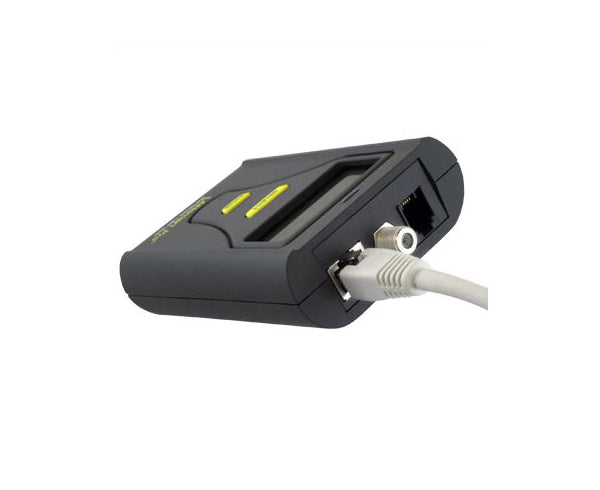

Connector Type RJ-45/RJ-11/COAX (main and remote)

±2m less than 10m (±6.56 ft. less than 32.81 ft.)

±5% over 10m (32.81 ft.)

Test range for cable length 1.2 to 300m (3.94 to 984 ft.)
Split pairs detection Minimum 1.2m (3.94 ft.)
Tone generator 1kHz
Operating Temperature 0ºC to 50ºC (32ºF to 122ºF
Storage Temperature -30ºC to 50ºC (–32ºF to 122ºF)
Humidity 10% to 90%
Master Dimensions 120 x 80 x 33mm
Remote Dimensions 44 x 42 x 28.5mm
Master Weight 120g
Remote Weight 20g
Power Source DC 6V; AAA Alkaline batteries x 4

What's In The Box

  • Qty 1 - LANsmart Pro Tone Generator with SmartProbe Kit
