NET Mapper Pro Network Cable Tester With 4 Remotes

SKU: TL4-4873
Various lead times may apply to this product. Please contact us for more details.

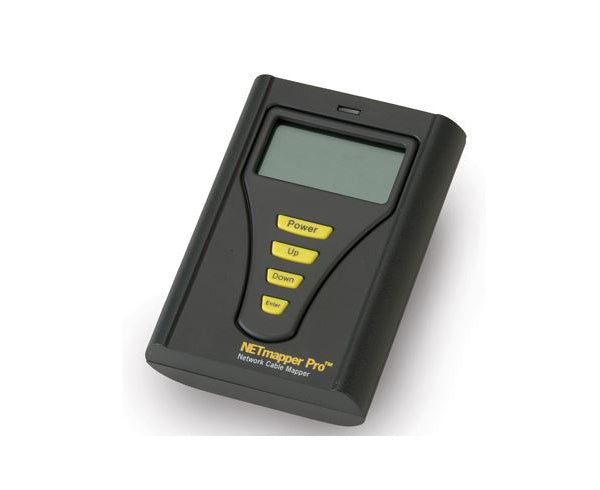

NET Mapper Pro Network Cable Tester

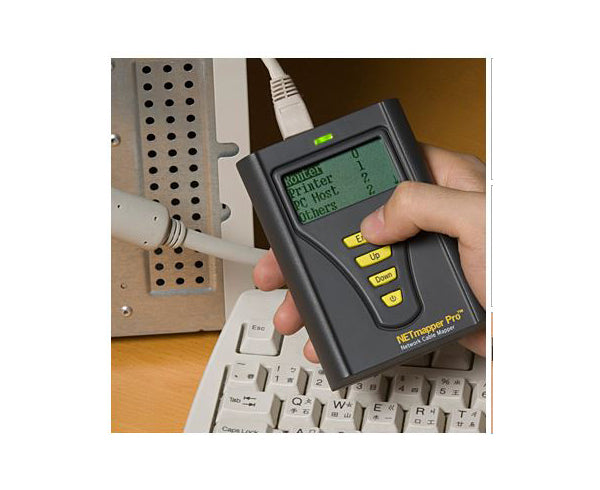

The NETmapper Pro is a hand-held multifunctional network-testing device that integrates all on-line/off line and telephone line test functions in one cable tester. For on-line testing, this cable tester operates as a workstation, pinging network devices and illustrating the machine name/IP address/MAC address. This tone generator also identifies all the network devices including router, printer and PC host. For off-line testing, the NETmapper Pro cable tester also operates as a professional cable checker.

The NETmapper Pro has integrated digital tone generator and port-finder functions to trace and identify cables with precision. It operates as a fully functional cable tester, and is an ideal tool for professional network administrators.


  • Displays the ethernet port status: Identifies Speed up to giga (10/100/1000)
  • Ping default router, DNS Server and user defined device
  • Scans and lists all the PC Host with IP address and computer host name or MAC address
  • PC Host service detects: HTTP/Telnet/DHCP/FTP and SNMP services
  • Incorporates port-finder function: locate corresponding socket on 10/100M or giga hub/switch

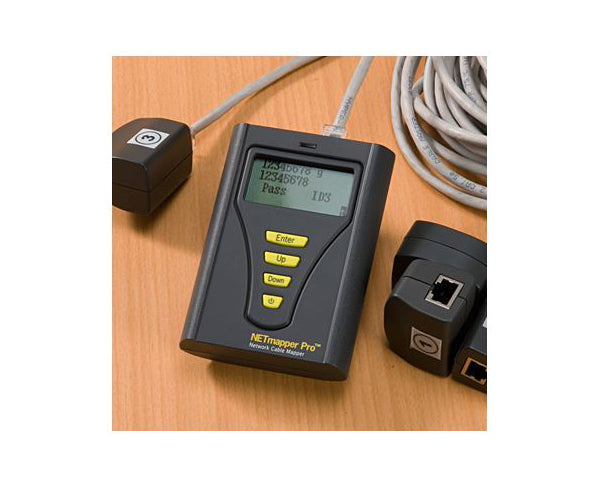

  • Wire map results are displayed in a pin–to–pin format
  • Remote ID number indication for recognition on workstations
  • RJ-45 ports on main unit for either On–line or Off–line Test
  • Measures cable length without remote of Cat5, Cat5e, Cat6 and Cat7 cables
  • Self–calibrating ability for non–standard cable tester (length test) and/or to increase measuring accuracy
  • User define unit of measurement in meter or feet for cable length tests
  • The Tone Generator function sends 1kHz tone on all pins with 4 special tonalities (The Digital generator function sends single tone and dual tone)
  • Automatically detects POE devices and voltage


Display LCD
Connector Type RJ-45

±2m less than 10m (±6.56 ft. in less than 32.81 ft.)

±5% over 10m (32.81ft.)

Test Range for Cable Length 1 to 300m (3 to 984 ft.)
Split Pairs Detection Minimum 1.5m (4.5 ft.)
Tone Generator Single/dual digital tone
Operating Temperature 0ºC to 50ºC (–32ºF to 122ºF)
Storage Temperature -30℃ to 50℃ (-22℉ to 122℉)
Humidity 10% to 90%
Master Dimensions 110 x 78 x 31mm
Remote Dimensions 44 x 32 x 28.5mm
Weight 145 g
Battery 4 x AAA battery

What's In The Box

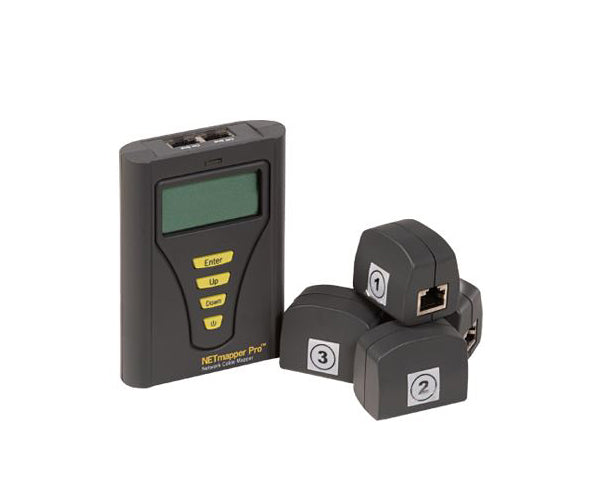

  • Qty 1 - NET Mapper Pro Network Cable Tester With 4 Remotes
