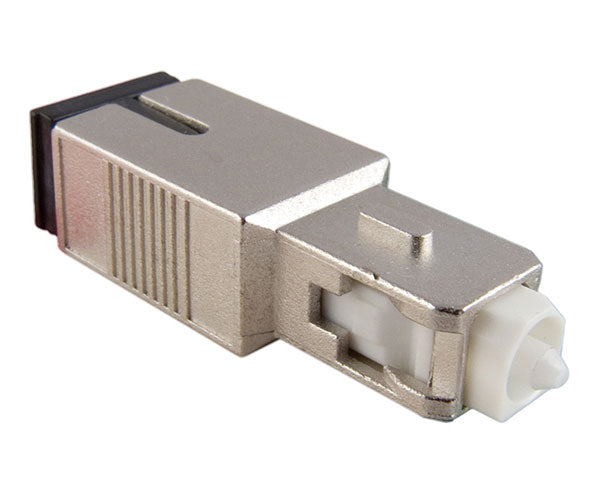

Fiber Attenuator, Single Mode, SC/UPC Simplex
Fiber Attenuator, Single Mode, SC/UPC Simplex
BY Primus Cable
Regular price
$14.99 USD
Regular price
Sale price
$14.99 USD
Unit price
/
per
SKU: SKU: NPNB-F18731C01
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsDescription
Features
Applications
Specifications
Fiber Attenuator, SC Single Mode Simplex with UPC Polish
SC/UPC single mode fiber attenuators are commonly used in fiber optic communications to the the power level of a fiber cable by controlling the amount of signal loss that is passed through the signal. SC/UPC single mode fiber optic attenuators can also be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels.
- Metal ion doped fiber
- High-power light source durability
- Wavelength independence
- Attenuation levels ranging from 1dB to 25dB
- 1310nm, 1550nm and 1310/1550nm dual wave lengths
- Erbium Doped Fiber Amplifiers (EDFA)
- Dense Wave Division Multiplexers (DWDM)
- Overpowered fiber optic systems
Maximum Return Loss: ≥50 dB
Attenuation Levels from 1dB to 9dB: ±10%dB
Attenuation Levels from 10dB to 30dB: ±1.0%dB
