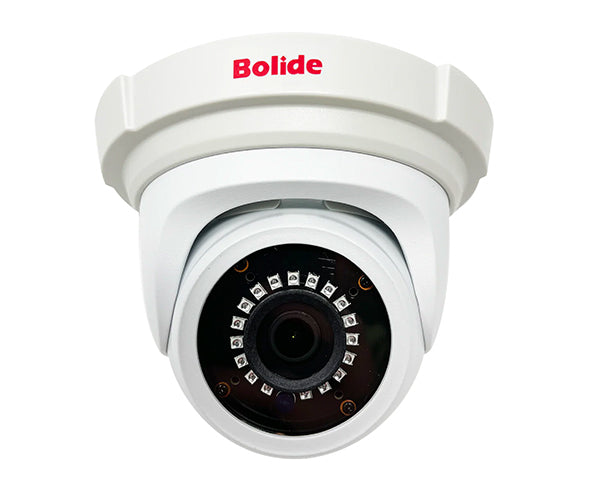

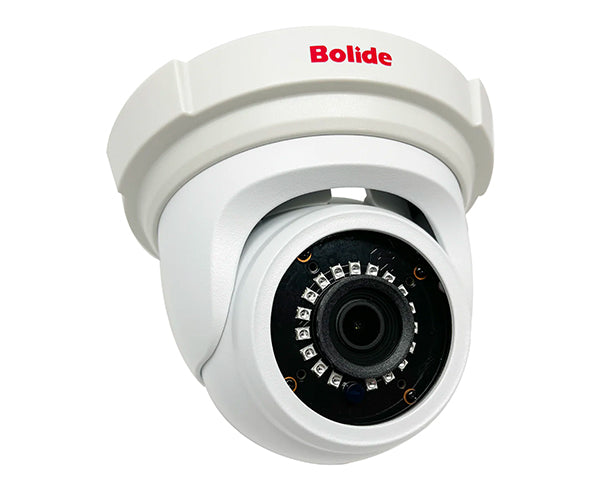

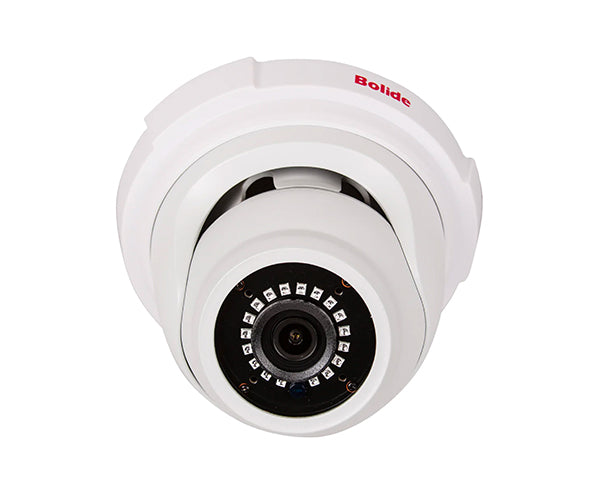

5.0 MP High Definition Fixed Lens IR Eyeball Camera
The new iPac NX series features up to 5 Mega Pixels of stunning Ultra HD resolution combined with the Next Generation of compression standards High Efficiency Video Coding (HEVC/H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology.The iPac NX series offers double the storage and half of the bandwidth requirements without sacrificing resolution or frame rate.
Features
Features
- 5MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.8mm Wide Angle Fixed Lens
- IR Up to 90 Feet
- IP67 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
Specifications
Specifications
| Mechanical Specifications | |
|---|---|
| Image Sensor | 1/3"Progressive Scan CMOS |
| Min. Illumination | 0.002 Lux @(F1.2,AGC ON), B/W 0 Lux with IR |
| Shutter Speed | 1/5 s- 1/20,000 s |
| Lens Type | 2.8 mm |
| Lens Mount | M12 |
| Day and Night | IR Cut Filter with Auto Switch |
| Dynamic Range | Digital WDR |
| Digital Noise Reduction | 2D / 3D DNR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Image Resolution | 5MP (2592 X 1944) |
| Video Bit Rate | 8Kbps-8Mbps |
| Image | |
| Frame Rate |
5MP (2592 X 1944) ( 1 ~ 20FPS ) 1080P (1920 x 1080) ( 1 ~ 20FPS ) 720P (1280 x 720 ) ( 1 ~ 20FPS ) Substream VGA (640 x 480) ( 1 ~ 20FPS ) QVGA (320 x 240) ( 1 ~ 20FPS )
|
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser |
| Day and Night Swith | Auto/ Schedule/ Triggered by Alarm In |
| Interface | |
| System Compatibility | ONVIF ( Profile S/G/T ) |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | IR Up to 90 ft |
| POE | Built-In POE |
| Electrical | |
| Power Supply | 12 VDC, POE (IEEE802.3af) |
| Operating Temperature | -40 °F- 140 °F Humidity 95% or less (non-condensing) |
| Physical | |
| Dimensions | 5"x 4" |
| Net Weight | 0.72 lb |
| Weather Rating | IP67 Rated |
Additional Information
Additional Information

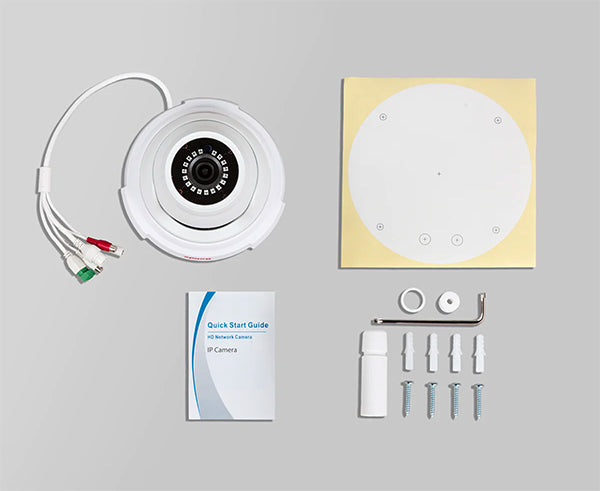

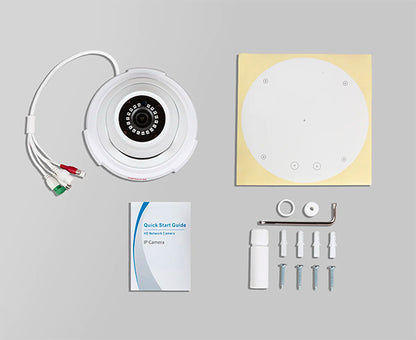

What's in the Box
What’s in the Box
- Qty 1 - 5MP Security Camera, High Definition Fixed Lens IR Eyeball Camera
