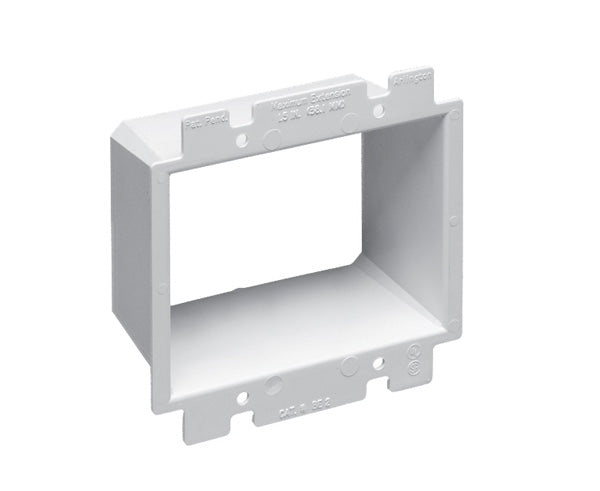

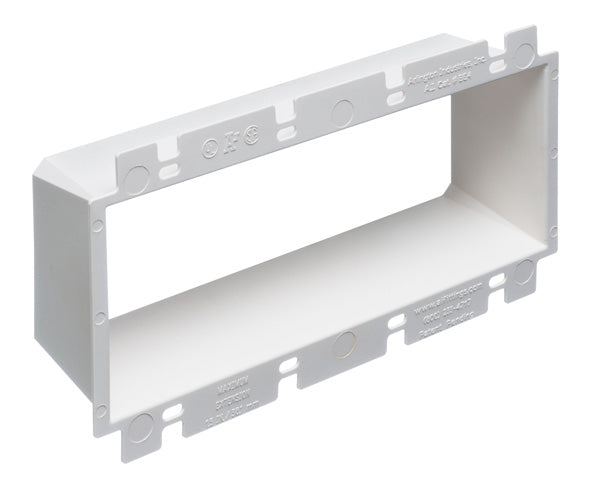

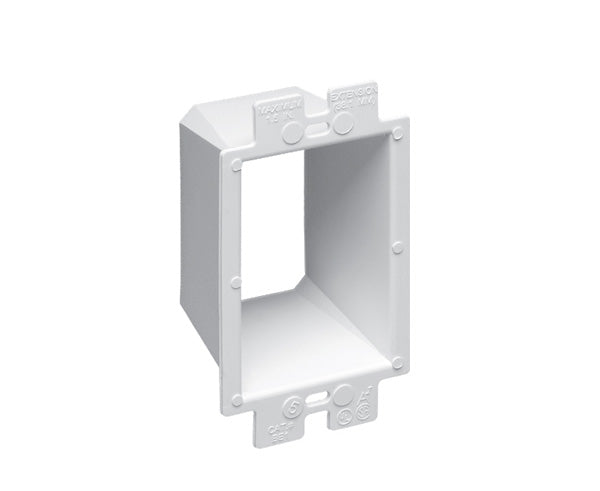

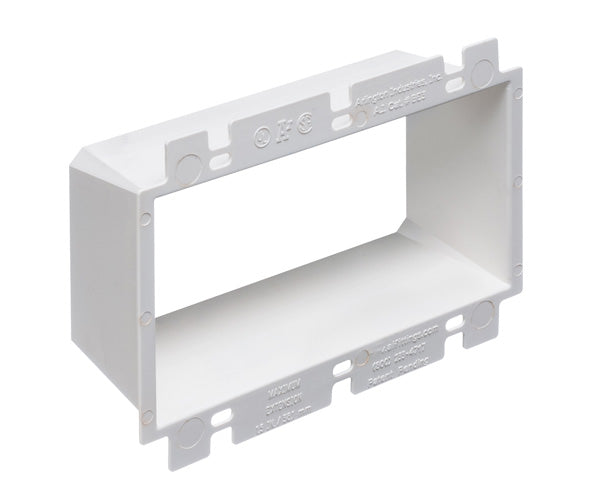

Drywall Mounting Bracket Box Extender
Our Drywall Mounting Box Extenders set back metal or non-metallic electrical boxes up to 1-1/2 inches. This product works with most steel and non-metallic outlet boxes, providing a level, fully supported wiring device that's flush with the wall surface. In steel boxes, they prevent arcing and shorting by creating a barrier between the box and device screws.
Features
Features
- Allows the contractor to comply with 2014 NEC Article 314.20
- Levels and supports the wiring device where the box is set back from the wall surface (adjusts up to a 1-1/2" box extension)
- Works in handy boxes and 4™ square electrical boxes with plaster rings for single switches or receptacles
- Functions with all standard devices, switches, and GFCIs
- Manufactured from 105™C continuous use 94V0 rated flame retardant plastic for safer installations (2 Hour Fire Rating)
Specifications
Specifications
| Product Number | BE1 | BE2 | BE3 | BE4 |
| Width | 2.313" | 4.125" | 5.937" | 7.749" |
| Height | 4.188" | 4.188" | 4.188" | 4.188" |
| Weight | 0.038 lbs | 0.054 lbs | 0.080 lbs | 0.098 lbs |
| Color | White | White | White | White |
| Material | Plastic | Plastic | Plastic | Plastic |
| UPC | 018997401601 | 018997489609 | 018997489678 | 018997489685 |
Installation Instructions:
Additional Information
Additional Information
Box Extenders Video
What's In The Box
What’s In The Box
- Qty 1 - Single Gang Box Extender
