Description
Description

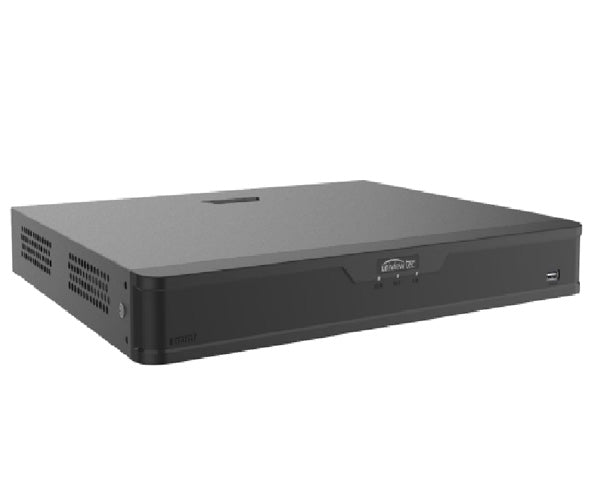

32ch Analog x 4ch IP, Hybrid NVR
The Hybrid 32 ch Network Recorder, NDAA-compliant, seamlessly records up to 8MP for HD Analog and IP Cameras. it simultaneously supports 32 Analog and 4 IP Video Inputs also Utilizing High-Definition Analog over Coax, it transforms existing cables for mega-pixel AHD, TVI, and CVI camera images without rewiring. Featuring a mirrored display on HDMI/VGA, audio I/O, PTZ control, and 2 SATA HDDs, it ensures easy plug-and-play functionality.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Hybrid network recorder supports recording of up to 8MP Resolution for HD Analog and IP Cameras with H.265 / H.264 Compression
- Simultaneously supports 32 Analog (AHD, TVI, CVI and CVBS) and 4 IP Video Inputs with adaptive access (or up to 36 IP channels if no analog cameras are connected)
- Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI, and CVI cameras without any rewiring
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- HDMI display resolution up to 8MP
- Supports Audio I/O and PTZ Camera control
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 2 SATA HDD up to 10TB each
- ONVIF Profile S Compliant for IP Cameras
- Long transmission distance over RG-6 coax cable up to 2000ft (600m)
- Supported by Uniview Tec Guard Station Client Software and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
Specifications
| VIDEO & AUDIO INPUTS | |
| Analog Video Input | 32-ch, BNC |
|---|---|
| IP Video Input | 4-ch (only IP up to 36ch); each channel up to 8MP |
| Supported Analog Camera Type |
AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps TVI input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps CVBS input |
| Audio Input | 1-ch, RCA |
| Audio Compression | G.711U |
| VIDEO & AUDIO OUTPUTS | |
| CVBS Output | 1-ch, BNC |
| VGA Output | 1920×1080p@60/50Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| HDMI Output | 3840×2160@30Hz, 1920×1080p@60/50Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| Audio Output | 1‑ch, RCA |
| Synchronous Playback | 16 |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16/25/36 |
| Two‑way Audio | 1‑ch, RCA (uses audio input and output) |
| COAXIAL CABLE | |
| Audio over Cable | 32‑ch, One‑way Audio (only for Uniview CVI protocol cameras) |
| SNAPSHOT | |
| FTP/Schedule/Event Snapshot | 32‑ch snapshot, up to 704×576 resolution |
| NETWORK | |
| Incoming Bandwidth | 80 Mbps (up to 144 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP |
| Supported Browsers | IE10/11, Firefox ≥52, Chrome ≥45, Edge ≥79 (Windows) |
| ENCODING | |
| Recording Resolution | 8MP/5MP/4MP Lite, 1080P, 720P, CIF |
| Recording Frame Rate | Main/Sub streams: 8MP Lite@8fps / D1@8fps; 5MP Lite@12fps / D1@12fps; 4MP Lite@15fps / D1@15fps; 1080P@15fps / D1@15fps; 720P@30fps / D1@30fps |
| Audio Sample Rate | 8 kHz, 16‑bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| DECODING | |
| Capability (fps) | Analog: 16×8MP@8, 16×5MP@12, 16×4MP@15, 16×1080P@15, 16×720P@30 IP: 16×720P@30, 8×1080P@30, 4×4MP@30, 2×8MP@30 |
| HARD DISK DRIVES | |
| SATA | 2 SATA Interface |
| Capacity | Up to 10 TB per HDD |
| SMART ALARM | |
| Analog Smart by XVR | Ultra Motion Detection (UMD) |
| IP Smart by IPC | Face, Defocus, Scene Change, Object Removed/Left Behind, Auto Tracking |
| VCA Search | Face Search; Behavior Search |
| Smart Functions by XVRC | 16-ch (UMD) |
| GENERAL ALARM | |
| General Alarm | Motion detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Space Low/Full, Recording/Snapshot Abnormal |
| EXTERNAL INTERFACE | |
| Network Interface | 1×RJ45 10/100/1000M self-adaptive Ethernet |
| USB Interface | 1×USB3.0 (rear), 1×USB2.0 (front) |
| Serial Interface | 1×RS485 |
| Alarm In | 4 |
| Alarm Out | 1 |
| GENERAL | |
| Power Supply | 12V DC; Power Consumption ≤38W (without HDD) |
| Working Environment | -10°C~+55°C (14°F~131°F), Humidity ≤90% RH (non-condensing) |
| Dimensions (W×D×H) | 380×326×53mm (15×12.8×2.1") |
| Weight (without HDD) | 2.6 kg (5.72 lb) |
| CERTIFICATIONS | |
| Certifications | FCC, CE (UL – Power Supply only) |
```
Additional Information
Additional Information
Accessories
This NVR is compatible with the following accessories
- NSW08PX: 8-port PoE Switch
- 16-port PoE Switch
- NSW242PX: 24-port PoE Switch
- RCKERS2: Rackmount Ears
- 4KTESTMON1: Multi-Function Video Test Monitor
Additional Product Information
If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
What's in the Box
What's in the Box
- Qty 1 – Uniview HNR322X Hybrid NVR (32‑ch analog + 4‑ch IP, 8 MP)
- Qty 1 – Power adapter
- Qty 1 – USB mouse
- Qty 1 – Rack‑mount ears and mounting screws
- Qty 1 – HDD mounting kit (brackets and screws)
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card
