Description
Description

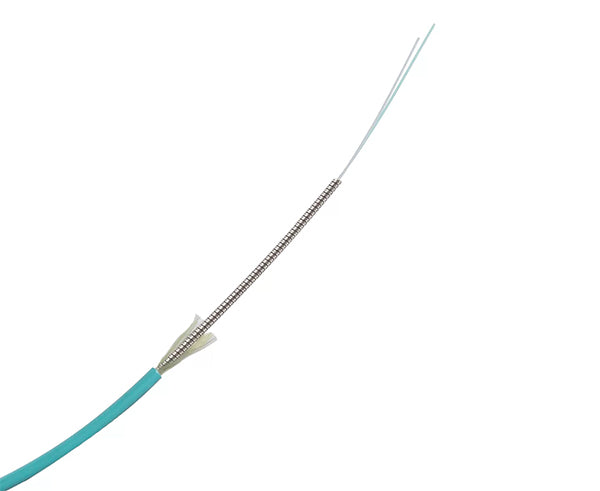

Micro-Distribution Armored Plenum Fiber OM3 50/125 MultiMode 2 Strand
This revolutionary designed fiber optic cable provides the single best solution for all your fiber optic projects and usage. Micro-Distribution Armored Fiber can be used in any channel for Telco, CATV, WAN LAN, SAN, Broadcast, DAS, Communication, and Security.
Micro-Distribution Armored Fiber features the smallest OD of any armor compared to conventional optical fiber cable in size and flexibility. Having the lightest and smallest armor makes routing and installation faster and easier, while the addition of Fiber PLUS Power further reduces labor and installation costs.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility
- Lightest and smallest armor makes routing and installation faster and easier
- Micro coiled steel cable is up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor (AIA)
- Provides the strongest armor with maximum bend radius and designed forall indoor & outdoor conditions
- Crush and rodent resistance for multiple applications
- All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects
- OM3, 2 Strand, 50/125 μm
- Available in all standard connectors
- Adds tensile strength and flexibility
- 500% increase in capacity, run six times as many fiber cables!
- Plenum rated outer jacket
- Lower weight, lower shipping cost
- UL Listed
- Priced per foot
Specifications
Specifications
| Fiber Count: |
2 |
| Environment: |
Duct, Indoor, Plenum |
| Fiber Category: |
MultiMode Fiber (OM3) |
| Fiber Type: |
900um |
| Jacket Type: |
Plenum |
| Fiber Core/Cladding Diameter: |
50±2.5um/124.8±1.0 |
| Wavelengths/Max. Attenuation: |
1300 ≤1.5 dB/km, 850 ≤3.0 dB/km |
| Nominal Outer Diameter: |
4.8±0.2 mm |
| Weight: |
31 kg/km |
| Min. Dynamic Bend Radius: |
20D |
| Min. Static Bend Radius: |
10D |
| Storage Temp: |
-20°C to 70°C (-4 °F to 158 °F) |
| Installation Temp: |
-10°C to 60°C (-10 °F to 140 °F) |
| Operation Temp: |
-20°C to 70°C (-4 °F to 158 °F) |
| Max. Dynamic Tensile Strength: |
500 N |
| Max. Static Tensile Strength: |
100 N |
| Max. Dynamic Crush Resistance: |
3000 |
| Max. Static Crush Resistance: |
500 N |
| Stainless Steel Tube Outer Diameter: |
2.8 mm |
| Stainless Steel Tube Inner Diameter: |
2.2 mm |
| Steel Braid: |
N/A |
| Kevlar: |
6x800dtex |
| Max. Data Rate: |
10G / 300m |
| NEC Rating: |
OFCP |
What's in the Box
What's in the Box
- Qty 1 – Pre-cut length of armored OM3 fiber cable (2-strand, 50/125 µm aqua plenum jacket, 4.8 mm diameter).
- Qty 1 – Protective dust caps (pre-installed on fiber ends, if factory-terminated).
