This product is intended to be purchased by installers only
Description
Description

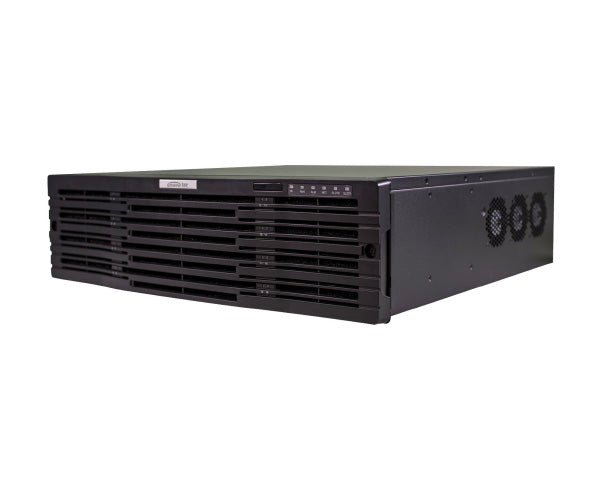

Maximize your surveillance storage with Uniview's DE1600 Mini-SAS Disk Enclosure. Engineered for high-density video applications, this 3U rack-mountable unit supports up to 16 SATA HDDs, each up to 10TB, delivering a massive 160TB total capacity. Designed for seamless integration with Uniview NR6416, NR12816, and NR25616 NVRs, it ensures high performance, low power consumption, and stable operation through multi-stage cooling fans and impulse-current protection.
Features
Features
- High density, innovative disk enclosure
- Supports NR6416, NR12816 and NR25616 Uniview Tec model network recorders
- High performance and reliability developed specifically for video surveillance
- Supports 16 SATA HDDs, up to 10TB each for a total of 160TB
- Rack mounting available
- Power protection with power sequentially managed during startup and protection from impulse current
- Multi-stage fans provide heat dissipation to ensure low power consumption and stable operation
- Space saving 3U height
- Optional redundant power supply available
Specifications
Specifications
| STORAGE | ||
|---|---|---|
| Hard Disk Drives | 16 SATA HDD's | |
| Capacity | Up to 10TB each | |
| GENERAL | ||
| Expansion Interface | 1 × Mini-SAS | |
| Power | 100-240VAC | |
| Consumption | 100W maximum, w/o HDD's | |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) Humidity ≤90% RH (non-condensing) |
|
| Dimensions (W × D × H) | 481.6 × 477.1 × 130.5 mm (18.96 × 18.78 × 5.14") |
|
| Rack Mountable | Yes; Shelf or Rails are Recommended, but Not Included | |
| Weight (w/o HDD) | 10kg (22lb) | |
What's in the Box
What’s in the Box
- Qty 1 – 16-bay disk enclosure (3U rack-mountable)
