Description

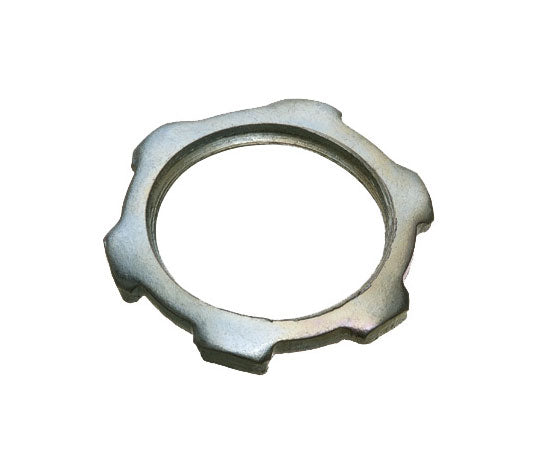

Plated Steel Conduit Locknut
This Conduit Locknut is made from zinc plated Steel and works great to secure your conduit connection. This Conduit Locknut is available in 11 sizes ranging from a 1/2 inch to 6 inches.
Features
Features
- Plated Steel
- Available in sizes from 12" to 6"
Specifications
Specifications

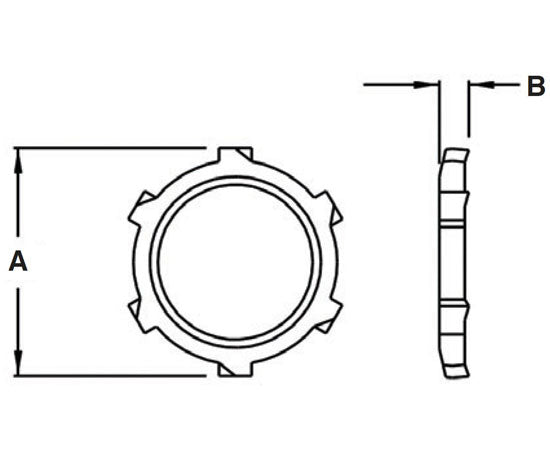

| Part Number | Trade Size | Dim A | Dim B |
|---|---|---|---|
| NPNB-401 | 1/2" | 1.125 | .130 |
| NPNB-402 | 3/4" | 1.353 | .140 |
| NPNB-403 | 1" | 1.730 | .60 |
| NPNB-404 | 1-1/4" | 2.080 | .187 |
| NPNB-405 | 1-1/2" | 2.376 | .187 |
| NPNB-406 | 2" | 2.890 | .250 |
| NPNB-407 | 2-1/2" | 3.470 | .250 |
| NPNB-408 | 3" | 4.165 | .250 |
| NPNB-409 | 3-1/2" | 4.700 | .275 |
| NPNB-410 | 4" | 5.320 | .275 |
| NPNB-411 | 4" | 6.487 | .450 |
| NPNB-412 | 6" | 7.830 | .450 |
What’s In The Box
What’s In The Box
- Qty 1 - Plated Steel Conduit Locknut
