Compatible with Cisco switches.
Description
Description

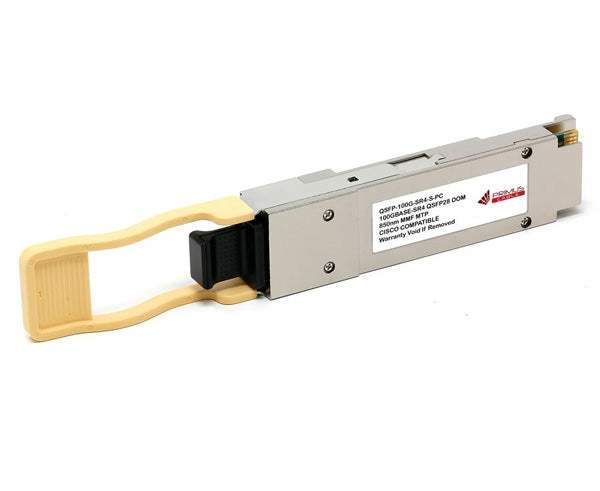

100G QSFP28 SR4 Transceiver, MPO/MTP, 850nm, Cisco-Compatible
Designed for seamless integration with all intended Cisco switching devices, this optical transceiver is a parallel fiber module featuring four independent optical transmit and receive channels. It adheres to SFF-8665 and QSFP28 MSA standards. Optimized for multimode fiber with MPO/MTP connections, it operates at a nominal wavelength of 850nm, providing up to 70m reach over OM3 fiber and 100m over OM4 fiber.
Features
Features
- Up to 103.1 Gb/s aggregate bit rates
- Four parallel lane design
- Hot-pluggable QSFP28 footprint
- Uncooled 4x25Gb/s 850nm transmitter
- MPO/MTP connector
- Built-in digital diagnostic function
- Up to 70m over OM3, 100m over OM4 fiber
- Single power supply 3.3v
- Operating temperature range 0°C to 70°C
Specification
Specification
| Compatible OEM | Cisco Compatible |
| Form Factor | QSFP28 |
| Max Data Rate | 100Gbs GE |
| Wavelength | 850nm |
| Max Cable Distance | 100M over OM4 MMF, 70M over OM3 MMF |
| Connector | 1 X MTP-12 |
| DOM Support | YES |
| Power Supply | 0 |
| Operational Temperature Range | 0 to +70 C |
What's in the Box
What's in the Box
- Qty 1 – 100GBASE-SR4 QSFP28 Transceiver Module
