Description
USB 3.0 to HDMI Adapter with driver software CD
This USB 3.0 to HDMI Converter provides high throughput using the USB 3.0 bus and supports high-definition monitors with high resolution and high refresh rates. It is ten times faster than USB 2.0 and greatly improves the stability of transportation. The USB 3.0 Converter allows you to connect your desktop PC or laptop's USB port to an extra monitor or TV. This converter allows you to watch videos or slideshows on the big screen. It is also backward compatible, enabling it to work with USB 2.0 and lower.
Features
Features
- Compliant with USB 3.0 specification
- Compliant with HDMI specification v1.3
- USB 3.0 5GMbps bandwidth for connecting to computers
- Support USB 3.0 input and HDMI output
- Backward compatible with USB 2.0 specification
- Supports for External Display Interface IC™s via
- Supports display duplicating and extending
- USB video supports Primary, Extended, Mirror, Rotate
- Reduced power operating mode, supports bus-powered and self-powered operation
- Supports Operating systems for computers: Windows: Windows 7, Windows 8, Windows Vista, Windows XP, Mac OSX v10.7, Mac OSX v10.8
Specifications
Specifications

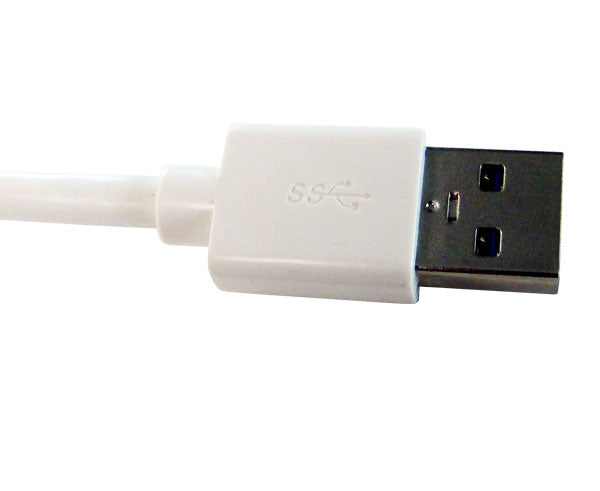

| Signal Input Port | USB 3.0 A Male x 1 |
| Signal Output Port | HDMI Female x 1 |
| Video Amplifier Bandwidth | Max to 1.65Gbps/165MHz |
| Operating Temperature | 0°C to + 7°C |
| Operating Humidity | 10% to 85% RH (no condensation) |
| Storage Temperature | -10°C to + 8°C |
| Storage Humidity | 5% to 90% RH (no condensation) |
| External Power Supply | No |
| Power consumption (Max) | 1.27 Watts |
Additional Information
Additional Information
1. Connection:
- Connect the USB 3.0 port of this product to the computer.
- Connect the HDMI output of this product to HDTV using one HDMI M/M
2. Driver Installation:
- In the CD there is a Windows & Mac driver, which supports Windows 7, Windows Vista, Windows XP, Mac OSX v10.7, and Mac OSX v10.8.
- Insert the CD into the computer, and the driver will be installed automatically.
- Select your operating system. (Windows, Mac, or Linx).
- Open the Setup and follow the prompts.
What's in the Box
What's in the Box
Before attempting to use this unit please check the packaging and make sure the following items are contained in the shipping carton.
- 1x - USB to HDMI Converter
- 1x - Software CD (1x - Contains User's Manual & Driver)
