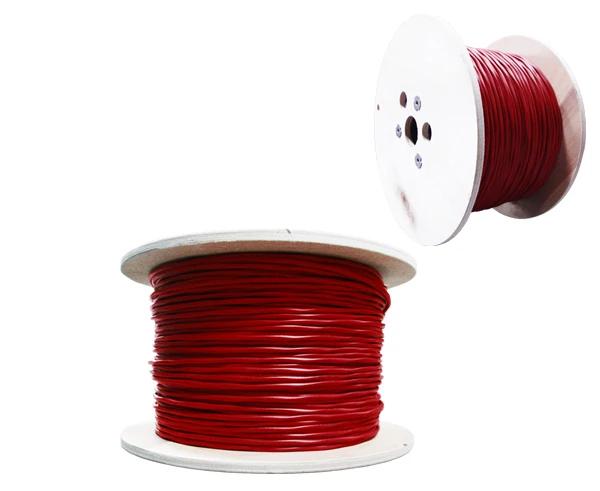

Fire Alarm Cable - FPLP - Unshielded Plenum, 16/4 AWG Solid Bare Copper Conductors, Red Jacket, 1000 Feet
FPLP Cable for any Power-Limited Fire Alarm System
This Fire Alarm Plenum (FPLP) Cable has four 16 gauge solid bare copper conductors. It utilizes a low smoke PVC jacket safe for installation through environmental air duct spaces. This is an excellent choice for your low voltage fire alarm system. The markings on the jacket help facilitate the installation process, as you always know how much cable is remaining.
When lives are on the line you need to buy the highest quality fire alarm cables you can from a source that you can count on. We are a reputable name in the industry and supply only high quality products. Why do you need fire alarm cables? If a fire occurs you depend on the fire alarm system triggering the sprinklers in the building and set off the smoke alarms warning people to evacuating the premises.
Fire Alarm Applications
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire Alarm Cable Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability our cables are UL, ETL Listed and RoHS Compliant. Plenum rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable burns less than non-plenum cables.
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
- Low smoke generating FT6 plenum rated PVC jacket
- Sequential footage markings on jacket
- UL Listed
- ETL listed
- RoHS Compliant
- Voltage rating: 300V
- Temperature rating: 75°C
- Made in USA
- Fire alarm wiring
- Fire protection
- Monitoring and detection systems
- Audio circuits
- Notifications circuits
- Control circuits
- Initiating circuits
|Inner Conductor||Solid Bare Copper|
|Conductor Size||16 AWG|
|Insulation||Low Smoke PVC
|Nominal OD||2C = 4.37 mm (0.172 in.)
4C = 5.11 mm (0.201 in.)
|Outer Jacket Diameter||.381mm (0.015in.)|
|Jacket||Low Smoke PVC|
|Voltage Rating||300 V|
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.
What's in the Box
What's in the Box
- Fire Alarm Cable Plenum (FPLP) Red Jacket, 16/4 Solid BC Conductors
- Qty - (1) 1000 Ft
