Description

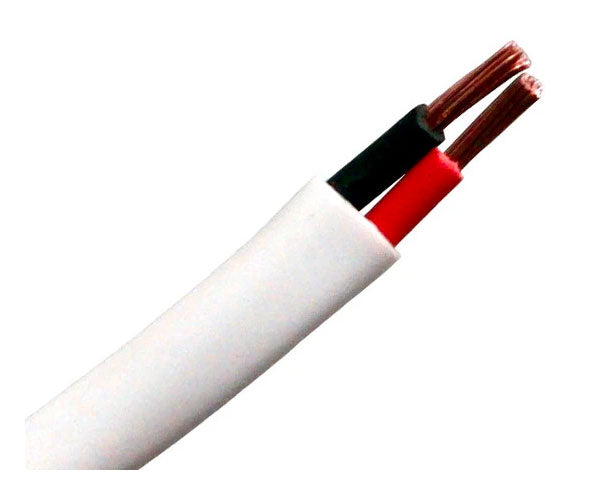

Oxygen Free Speaker Wire/ Audio Cable
18 Gauge
This 18 gauge speaker wire is composed of two bare copper conductors composed of 16 strands of copper per conductor. The copper conductors are made of oxygen free pure copper, lending it improved conductivity. It has a white PVC outer jacket and 18 gauge conductors. This speaker wire provides high quality audio signals from audio components to a receiver or amplifier. It is supplied in a pull box of 1,000 feet.
Features
18 Gauge Speaker Wire
- Gauge: 18 AWG
- # of Conductors: 2
- # of Strands: 16
- Shielding: N/A
- # of Feet on Roll: 1000
- Ratings: CMR
- Jacket Color: White
- PVC Jacket
- Pull Box
Specification
18 AWG Speaker Wire Specs:
|
|
|---|---|
| Conductor | Stranded Bare Copper |
| Conductor Size | 18 AWG |
| Number of Strands | 16 Strands |
| Insulation Diameter | 2.64mm |
| Insulation | PVC |
| Outer Jacket Diameter | 5.64mm |
| Jacket | White PVC |
| Insulation Colors | 1.Red 2.Black |
| Temperature | 75°C |
| Center Resistance | 21.20 (Ω/km) |
Additional Information |
|||
| Standards | UL | CMR | ||
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. | ||
Additional Information
Additional Information :
To learn more about our Audio Bulk Cable here is a link to a page containing more information on our premium Audio Bulk Cable.
