Riser Shielded Stranded Cable - Security Alarm, CMR Rated, 18/6 AWG, CL3R, 1000ft, Gray

$496.62
SKU: ASC2-329/186
RoHS Compliant ETL Verified logo

Description

Security Alarm Cable 18/6 (7 Strand) CMR FT4 Rated Shielded 1000'

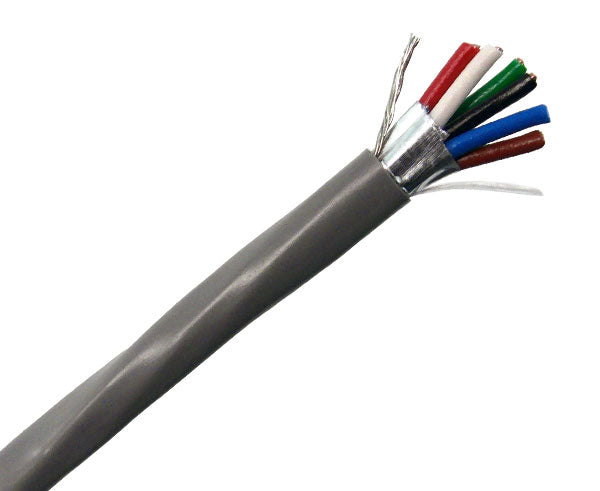

The 18 AWG 6 Conductor Security Alarm Cable is designed for security systems but is also suitable for intercom systems, power-limited controls, and sound/audio systems. Made with 7-strand bare copper cable, it features a shielded FT4 Rated Gray jacket, is manufactured in the USA, and is available in 1000 ft. lengths.

Our Bulk Security Alarm Cables are meticulously crafted to meet alarm system installation needs, offering a wide range of high-quality cables with riser and plenum rated jackets. Before purchasing, ensure compliance with building codes. The cables also include print legends for easy identification during installation across various applications.


Security Alarm Cable 18/6 (7 Strand) CMR FT4 Rated Shielded 1000'

Explore our portfolio of high quality security cables

Plenum - CMP
Shielded
Plenum - CMP
Unshielded
Riser - CMR
Shielded
Riser - CMR
Unshielded
Outdoor - CMX
Water Block
Security Alarm Cable - Riser (CMR) - 22/4 CL2R, Solid BC, Unshielded,

Applications

A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.

Features

Features

  • 18 AWG 6 Conductors
  • 7 Stranded Bare Copper Conductors
  • PVC Insulation
  • AL Foil Shielded
  • PVC Jacket
  • Sequential Footage Marking
  • CL3R, CMR Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles
    • 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
    • 14-12 AWG: FPLR, CL3R

Residential Or Commercial Applications

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls

Specifications

Specifications

Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 18 AWG
Insulation PVC
Nominal OD 5.84mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Number of Strands 7
Insulation Thickness .010"

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)

Additional Information

Standards ETL | RoHS | CMR | CL3R
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 18 AWG 6C (ETL) 725/CL3R 800/CMR (VID:###) XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.


Additional Information

How to Select CM, CMR and CMP Cable?

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: >CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

Where to use Plenum Security Alarm Cable

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

What's in the Box

What's in the Box

  • Security Alarm Cable - Riser (CMR) - 18/6 AWG, CL3R, Stranded (7 Strand), Shielded, Gray

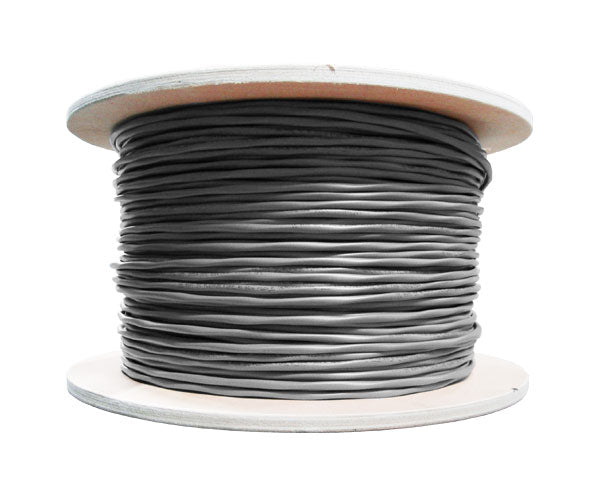

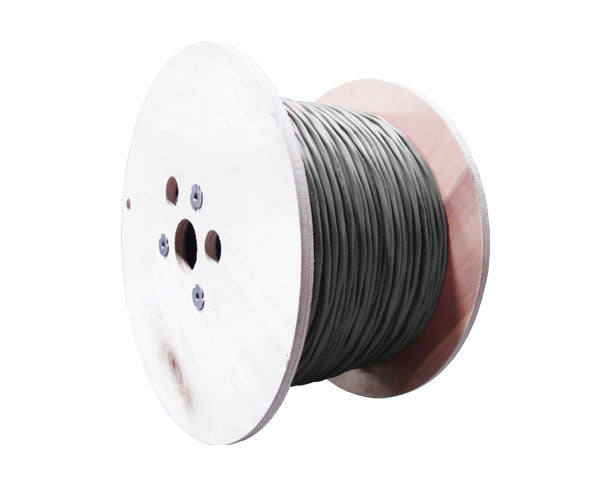

  • 1000 Ft
