These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Description
Panic Switch
This Panic Switch can mount underneath or on the side of a desk or counter, and is designed with screw terminals for easy installation. This switch has an actuating lever for a finger tip for easy use.
Features
Features
- Compact panic switch design mounts discreetly under desks, counters, or walls for quick emergency access.
- Actuating lever with fingertip control allows fast activation in high-stress situations for immediate alarm response.
- Screw terminal connections simplify wiring and ensure secure, reliable electrical contact during installation.
- Horizontal or vertical mounting options provide flexibility to fit various security system layouts and user preferences.
- Durable housing with low-profile design resists tampering while blending seamlessly into office or residential environments.
- Available with or without cable leads to accommodate different installation requirements and wiring setups.
- Made-to-order construction ensures quality craftsmanship and dependable performance for long-term security needs.
Specifications
Specifications
Additional Information
Additional Information
Installation Instructions
Mounting Instructions
1. Determine a mounting position so that the panic switch can be easily reached in an emergency, but will not attract attention when activated by user. Typical locations are on the underside of a counter top, on the side of a knee hole of a desk, in a hallway or bedroom, or near an entryway. The unit can be mounted horizontally or vertically and should be mounted low enough so that a person could reach it from the floor. Three inches of clearance above the mounting surface is required so that the lever can be fully opened.
2. Temporarily place the switch were it will be mounted and mark screw locations.
3. Drill pilot holes or start the screws to make installing screws easier.
4. GR3045: Connect the wires to the terminals per the wiring instructions before mounting switch.
5. After wiring is complete, install screws through the switch housing and firmly secure in place.
6. GR3045CT: After securing switch in place, run wire cable as needed and connect wires per the wiring instructions.
7. Test unit by pulling the lever and then closing it again.
What’s In The Box
What’s In The Box
GR3045
- Qty 1 - Panic Switch

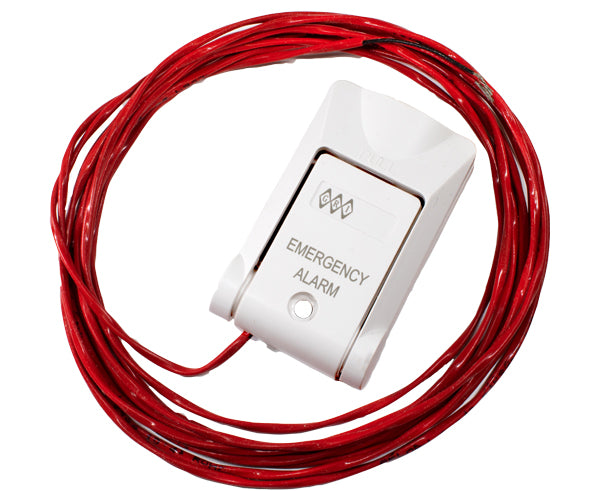

GR3045-CT
- Qty 1 - Panic Switch with Cable Leads
