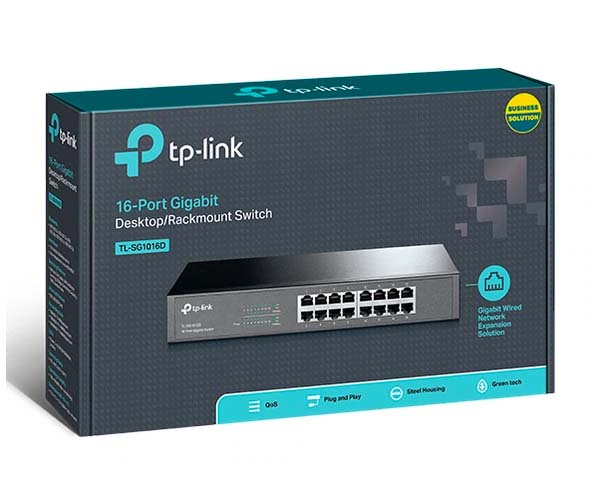

Unmanaged 16 Port Ethernet Switch, 10/100/1000Mbps, Desktop/Rackmount

by TP-Link
$79.99
SKU: TL-SG1016D
Various lead times may apply to this product. Please contact us for more details.

FCC Logo   ROHS Logo

Description

16 Port Unmanaged Ethernet Switch, 1U, Steel Case

What This Product Does

The 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.

Switch Network Overview

Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation 16 Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

  • Power down Idle Ports
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The ES2-1016-16D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
  • Power Budget According to Cable Length
    Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The ES2-1016-16D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

* Maximum power savings when compared to our conventional switch, the real saving rate may vary based on the usage condition.

Features

Features

  • Innovative energy-efficient technology saves power up to 15%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 32Gbps Switching Capacity
  • 10K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Store and forward Switching scheme
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
  • Plug and Play design simplifies installation

Specifications

Specifications




HARDWARE FEATURES
Interface 16 x 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 9.26W (220V/50HZ)
Dimensions (W x D x H)

 11.6 x 7.1 x 1.7 in

(294 x 180 x 44 mm)

Max Power Consumption 9.95W(220V/50Hz)
Max Heat Dissipation 11.3BTU/h
PERFORMANCE
Switching Capacity 32 Gbps
Packet Forwarding Rate 23.8 Mbps
MAC Address Table 8 K
Jumbo Frame 10 KB
Green Technology Yes
Transfer Method Store-and-Forward
GENERAL
Certification FCC, RoHS
Package Contents 16-Port Gigabit Desktop/Rackmount Switch
Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's In The Box

What's In The Box

  • 1 x 16 Port Gigabit Desktop/Rackmount Switch
  • 1 x Power Cord
  • 1 x Installation Guide
  • 1 x Rack mount Kit
  • 4 x Rubber Feet
