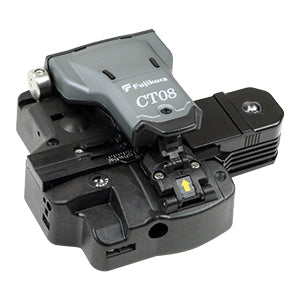

AFL CT-08 Fiber Optic Cleaver Kit
The CT08 cleaver is an extremely rugged, durable, and easy to use single fiber cleaver. Ideal for FTTH applications, the CT08 provides unmatched levels of impact resistance and also eliminates the requirement for tools during blade rotation. A thumbwheel on the bottom of the cleaver is utilized for blade rotation, and the blade position indicator has been relocated to enable quick and easy viewing.
The top clamp opens to a position past vertical allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade is retracted automatically when opening the top clamp and is activated upon closing, making this a true one-step cleaver. The cleaver blade and fiber clamping mechanism is extremely easy to replace in the field. A manual scrap collector is included.
Features
Features
- Dedicated for single fiber cleaving
- Ruggedized design withstands extreme shock levels
- Tool free blade rotation
- Simple one-step operation
- Blade and clamp/anvil assembly are field serviceable
Specifications
Specifications
| ITEM | VALUE | |
|---|---|---|
| APPLICABLE FIBER | FIBER TYPE | Single Mode Optical Fiber |
| Multimode Optical Fiber | ||
| FIBER COUNT | Single Fiber | |
| CLADDING DIA. | Approx. 125 μm | |
| APPLICABLE COATING | FIBER PLATE | AD-50: Max. 3 mm coating diameter |
| FIBER HOLDER | Coating shape: Refer to splicer fiber holder options | |
| CLEAVE LENGTH | FIBER PLATE | AD-50 [CD = coating diameter] CD ≤ 250 μm: 5 to 20 mm 250 μm < CD < 1000 μm: 10 to 20 mm 1000 μm < CD < 3 mm: 14 to 20 mm |
| FIBER HOLDER | Approx. 10 mm | |
| CLEAVE ANGLE | SINGLE FIBER | Avg. 0.3 to 0.9 degrees |
| BLADE LIFE | Approx. 48,000 fiber cleaves | |
| PHYSICAL DESCRIPTION | DIMENSIONS W | Approx. 120 mm when closing the lever |
| DIMENSIONS D | Approx. 95 mm when closing the lever | |
| DIMENSIONS H | Approx. 58 mm when closing the lever | |
| WEIGHT | Approx. 185 g | |
| ENVIRONMENTAL CONDITION | TEMPERATURE | Operate: -10 to 50°C |
| Storage: -40 to 80°C | ||
| HUMIDITY | Operate: 0 to 95% non-condensing | |
| Storage: 0 to 95% non-condensing | ||
| SCREW HOLE FOR TRIPOD | 1/4-20UNC | |
| OTHER FEATURES | BLADE ROTATION | Manual rotation dial |
| REPLACEABLE PARTS | Blade | |
| Clamp Arm | ||
What’s In The Box
What’s In The Box
- Qty 1 - AD-50 Adapter Plate

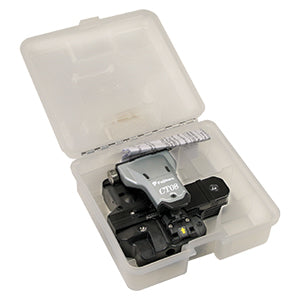

- Qty 1 - CC-34 Carrying Case
- Qty 1 - SPA-CT08-10 Spacer
