AFL XFM Fiber Patch Panel, Fixed, 4U, 12 Adapter Panel Capacity

by AFL
SKU: FM001090-B
Various lead times may apply to this product. Please contact us for more details.
Made in USA
Adapter panels are NOT included
This fiber patch panel is compatible with LGX adapter panel inserts and AFL splice trays. To find out more, give us a call or email us.


AFL Fiber Patch Panel, Fixed, 4RU, Holds 12 Adapter Panels, LGX Compatible, Black

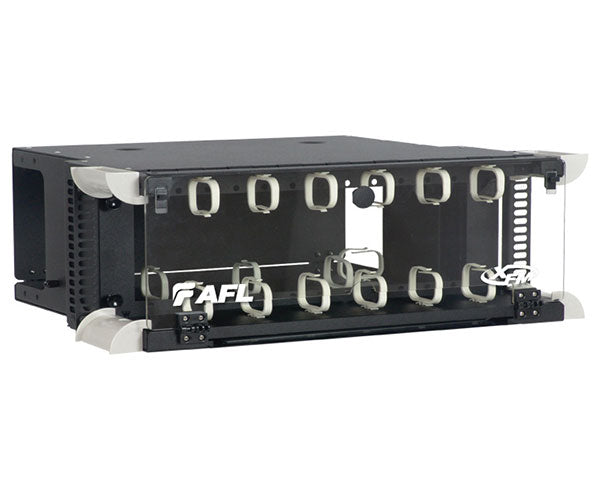

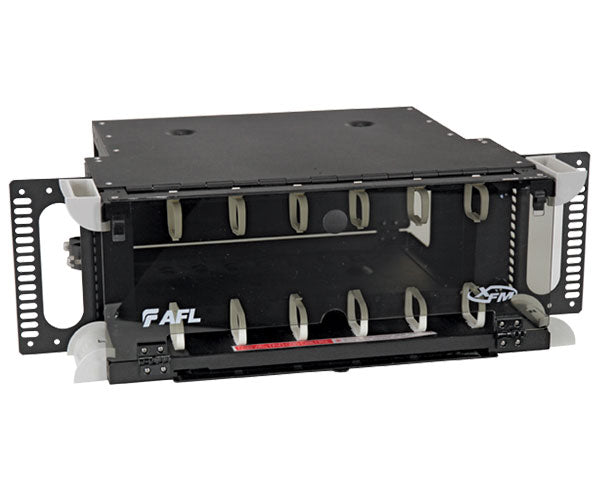

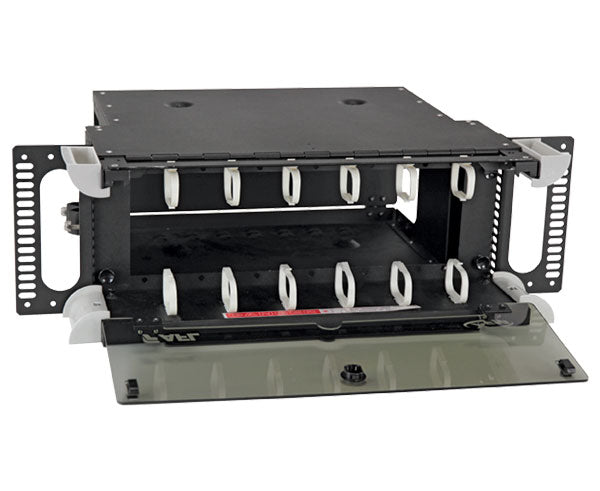

The Xpress Fiber Management (XFM) 4U patch panel is a rack mountable interconnect point specifically designed to manage dense fiber applications. Based on the LGX™ intermateability platform, the panel is fully compatible with AFL's XFM Optical Cassette and Poli-MOD solutions, offering enhanced management of densities up to 288F using MTP/MPO, single fiber, or patch and splice methodologies. A hinged fiber management panel can be secured in an upright or lowered position, which provides enhanced cable routing exiting the panel to the left or right, and also allows cable assemblies to be routed up and across the front of the panel for extreme density management. This panel can be provisioned with a key lock at the time of order for secure environments.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.



  • Aluminum construction
  • Textured black powder coat finish
  • Universal WECO/TIA 19"/23" rack compatibility
  • (12) LGX 118 adapter plate / module mounting positions
  • Mounting depth adjustable from flush to 8" in 1" increments
  • Data Centers
  • Enterprise Networks
  • Telecommunications Closets
  • Central Offices / Headends




Panels: (12) LGX Adapter Panels (Sold Separately)


    Depth: 15.5"
    Height: 7"
    Width: 17"
    Unloaded Weight: 19 lbs

    Physical Properties

    Color: Black
    Material: Steel

    Spec Sheet
